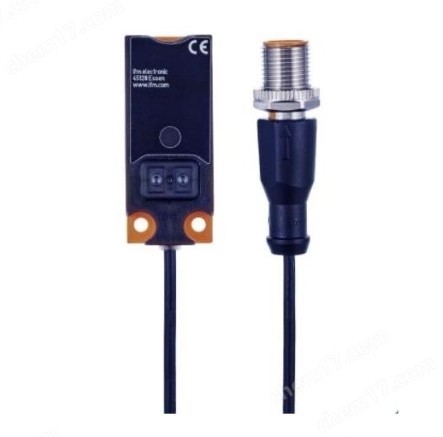

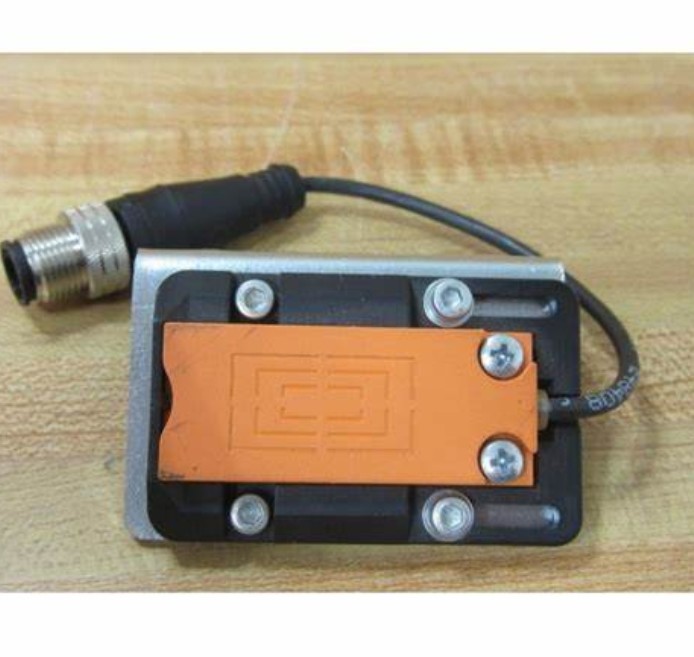

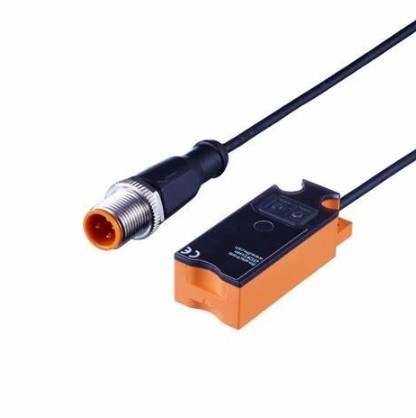

IFM Capacitive Sensor KQ6005 KQ-3120NFPKG/2T/0,1M/US

  • IFM Capacitive Sensor KQ6005 KQ-3120NFPKG/2T/0,1M/US
  • IFM Capacitive Sensor KQ6005 KQ-3120NFPKG/2T/0,1M/US
  • IFM Capacitive Sensor KQ6005 KQ-3120NFPKG/2T/0,1M/US
  • IFM Capacitive Sensor KQ6005 KQ-3120NFPKG/2T/0,1M/US
Place of Origin china
Brand Name IFM
Certification CE
Model Number KQ6005
Minimum Order Quantity 1
Price USD$70
Packaging Details carton
Delivery Time 6-8weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Electrical Design PNP Sensing Range [mm] 12
Communication Interface IO-Link Housing Rectangular
Dimensions [mm] 20 X 14 X 48 Media Dry Bulk Material; Liquids
Operating Voltage [V] 10...30 DC
Highlight

KQ6005 Capacitive sensor

,

IFM KQ6005 Capacitive sensor

,

IFM Capacitive sensor KQ6005
Leave a Message
Product Description
Product characteristics
Electrical design PNP
Output function normally open / normally closed; (selectable)
Sensing range [mm] 12
Communication interface IO-Link
Housing rectangular
Dimensions [mm] 20 x 14 x 48
Application
Installation detection through non-metallic container wall or on bypass pipes
Media dry bulk material; liquids
Electrical data
Operating voltage [V] 10...30 DC
Current consumption [mA] < 17
Protection class III
Reverse polarity protection yes
Measuring principle capacitive
Outputs
Electrical design PNP
Output function normally open / normally closed; (selectable)
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 100
Switching frequency DC [Hz] 10
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Detection zone
Sensing range [mm] 12
Real sensing range Sr [mm] 12 ± 10 %
Accuracy / deviations
Hysteresis [% of Sr] 1...15
Switch point drift [% of Sr] -20...20
Interfaces
Communication interface IO-Link
Transmission type COM1 (4,8 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9 CDV
SIO mode yes
Min. process cycle time [ms] 100.8
Supported DeviceIDs
Type of operation DeviceID
default 371
Operating conditions
Ambient temperature [°C] -25...80
Protection IP 65; IP 67; IP 69K
Tests / approvals
EMC
EN 61000-4-2 ESD 8 kV AD
EN 61000-4-3 HF radiated 10 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-6 HF conducted 3 V
EN 55011 class B
Shock resistance
EN 60068-2-27 30 g 6 shocks / 11 ms half-sine (x, y, z)
Vibration resistance
EN 60068-2-6 (10...55 Hz) / 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz
MTTF [years] 725
UL approval
Ta -25...80 °C
Enclosure type Type 1
power supply Limited Voltage/Current
Mechanical data
Weight [g] 34.5
Housing rectangular
Mounting non-flush mountable
Dimensions [mm] 20 x 14 x 48
Materials housing: PBT glass fibre reinforced; pushbuttons: TPE-U; cover: PC glass fibre reinforced
Displays / operating elements
Display
switching status 1 x LED, yellow
Teach function yes
Electronic lock yes
Remarks
Pack quantity 1 pcs.
Electrical connection - plug
Connection Cable: 0.1 m, PVC; 3 x 0.14 mm²
Connection Connector: 1 x M12; coding: A
