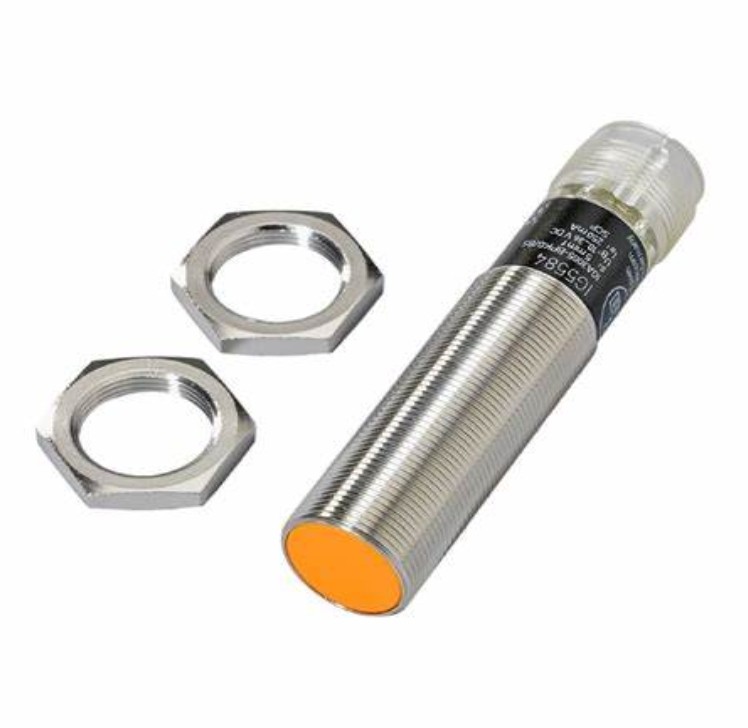

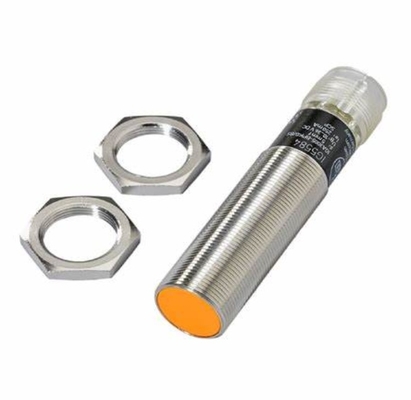

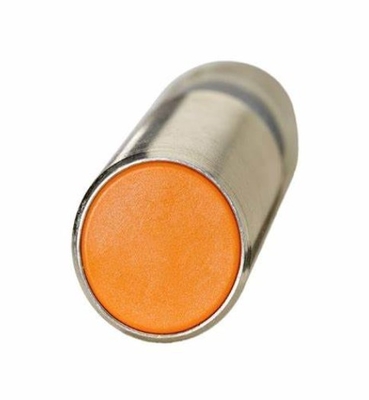

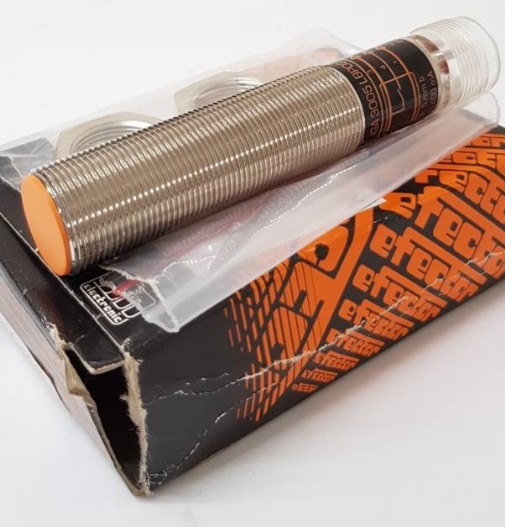

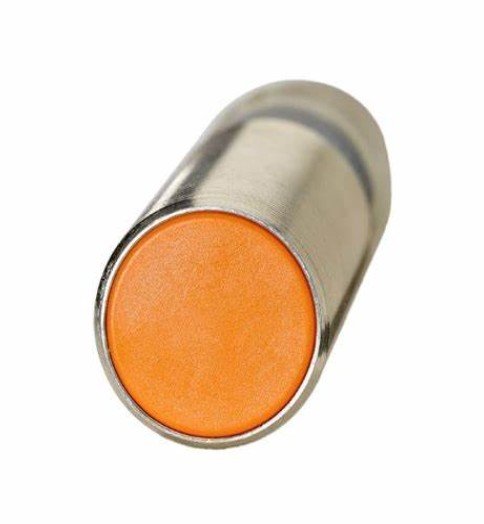

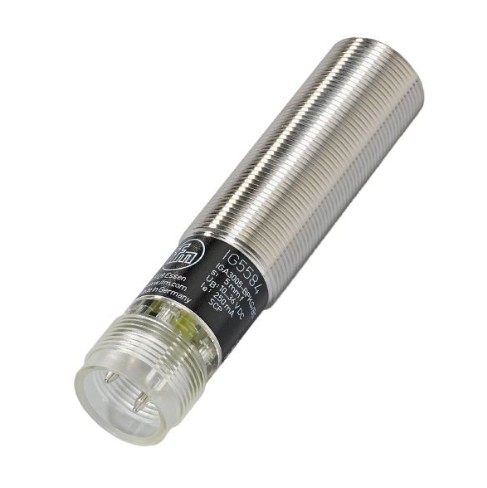

IFM Inductive Sensor IG5584 IGA3005-BPKG/BS-201-APS

  • IFM Inductive Sensor IG5584 IGA3005-BPKG/BS-201-APS
  • IFM Inductive Sensor IG5584 IGA3005-BPKG/BS-201-APS
  • IFM Inductive Sensor IG5584 IGA3005-BPKG/BS-201-APS
  • IFM Inductive Sensor IG5584 IGA3005-BPKG/BS-201-APS
Place of Origin china
Brand Name IFM
Certification CE
Model Number IG5584
Minimum Order Quantity 1
Price USD$55
Packaging Details carton
Delivery Time 6-8weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Electrical Design PNP Output Function Normally Open
Sensing Range [mm] 5 Housing Threaded Type
Highlight

IFM Inductive sensor IG5584

,

IFM Inductive sensor

,

Inductive sensor IG5584
Leave a Message
Product Description
Product characteristics
Electrical design PNP
Output function normally open
Sensing range [mm] 5
Housing threaded type
Dimensions [mm] M18 x 1 / L = 81
Electrical data
Operating voltage [V] 10...36 DC
Current consumption [mA] 15; (24 V)
Protection class II
Reverse polarity protection yes
Outputs
Electrical design PNP
Output function normally open
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 250
Switching frequency DC [Hz] 500
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Detection zone
Sensing range [mm] 5
Real sensing range Sr [mm] 5 ± 10 %
Operating distance [mm] 0...4.05
Accuracy / deviations
Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr] 1...15
Switch point drift [% of Sr] -10...10
Operating conditions
Ambient temperature [°C] -25...80
Protection IP 65
Tests / approvals
EMC
EN 60947-5-2
EN 55011 class B
MTTF [years] 1884
Mechanical data
Weight [g] 60.5
Housing threaded type
Mounting flush mountable
Dimensions [mm] M18 x 1 / L = 81
Thread designation M18 x 1
Materials brass white bronze coated; PC
Displays / operating elements
Display
switching status 1 x LED, yellow
Accessories
Items supplied
lock nuts: 2
Remarks
Pack quantity 1 pcs.
