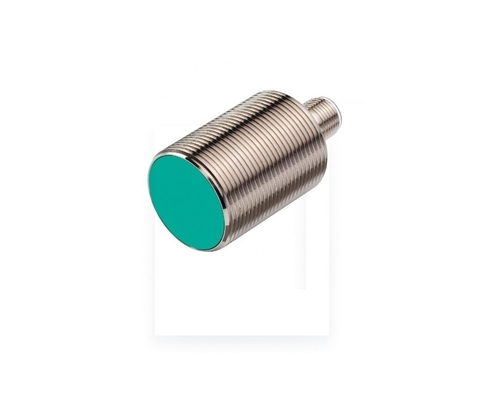

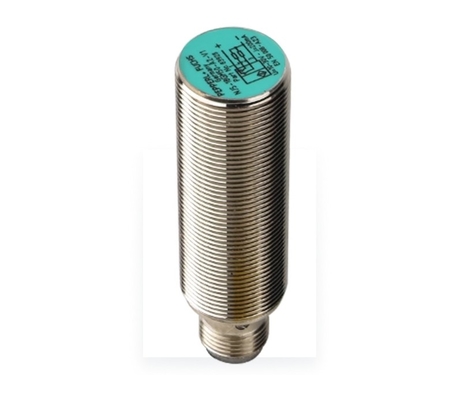

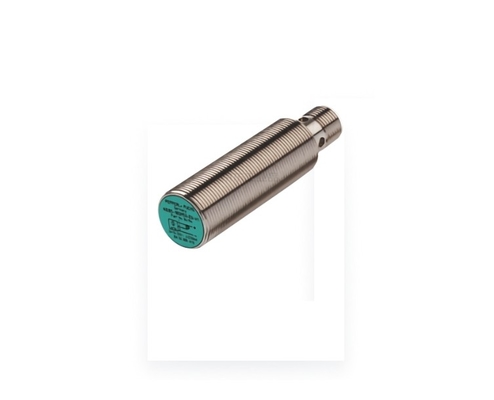

Automation NBB8-18GM60-A2-V1 Proximity Sensor M18 Inductive, 8mm Range, 10-30VDC, PNP, M12, 08556

  • Automation NBB8-18GM60-A2-V1 Proximity Sensor M18 Inductive, 8mm Range, 10-30VDC, PNP, M12, 08556
  • Automation NBB8-18GM60-A2-V1 Proximity Sensor M18 Inductive, 8mm Range, 10-30VDC, PNP, M12, 08556
  • Automation NBB8-18GM60-A2-V1 Proximity Sensor M18 Inductive, 8mm Range, 10-30VDC, PNP, M12, 08556
  • Automation NBB8-18GM60-A2-V1 Proximity Sensor M18 Inductive, 8mm Range, 10-30VDC, PNP, M12, 08556
  • Automation NBB8-18GM60-A2-V1 Proximity Sensor M18 Inductive, 8mm Range, 10-30VDC, PNP, M12, 08556
  • Automation NBB8-18GM60-A2-V1 Proximity Sensor M18 Inductive, 8mm Range, 10-30VDC, PNP, M12, 08556
Place of Origin china
Brand Name IFM
Certification CE
Model Number NBB8-18GM60-A2-V1
Minimum Order Quantity 1
Price USD$25
Packaging Details carton
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Switching Function Complementary Output Type PNP
Rated Operating Distance 8 Mm Installation Flush
Highlight

Proximity Sensor

,

M18 Inductive Proximity Sensor

,

10-30VDC Proximity Sensor
Leave a Message
Product Description
General specifications
Switching function complementary
Output type PNP
Rated operating distance 8 mm
Installation flush
Output polarity DC
Assured operating distance 0 ... 6.48 mm
Actuating element mild steel, e. g. 1.0037, SR235JR (formerly St37-2)
24 mm x 24 mm x 1 mm
Reduction factor rAl 0.38
Reduction factor rCu 0.35
Reduction factor r304 0.74
Reduction factor rBrass 0.47
Output type 4-wire
Nominal ratings
Operating voltage 5 ... 36 V
Switching frequency 0 ... 1350 Hz
Hysteresis typ. 5%
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop ≤ 1 V
Operating current 0 ... 200 mA
Off-state current max. 20 µA
No-load supply current ≤ 15 mA
Time delay before availability ≤ 10 ms
Switching state indicator Multihole-LED, yellow
Functional safety related parameters
MTTFd 1255 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Conformity
PWIS conformity VDMA 24364-A1/B2/C1/T100°C-W
Compliance with standards and directives
Standard conformity
  Standards EN IEC 60947-5-2
Approvals and certificates
Protection class II
  Rated insulation voltage 36 V
  Rated impulse withstand voltage 500 V
UL approval cULus Listed, General Purpose, Class 2 Power Source
CCC approval CCC approval / marking not required for products rated ≤36 V
Marine approval DNVGL TAA00003AK
Ambient conditions
Ambient temperature -40 ... 85 °C (-40 ... 185 °F)
Storage temperature -40 ... 85 °C (-40 ... 185 °F)
