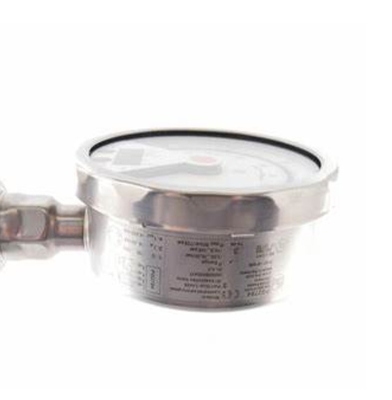

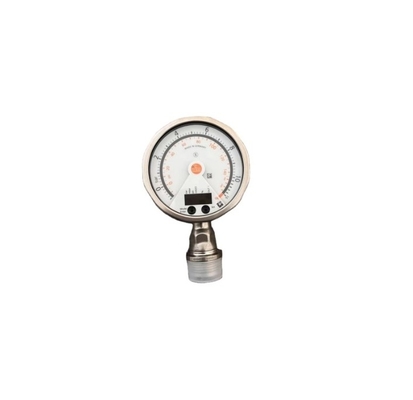

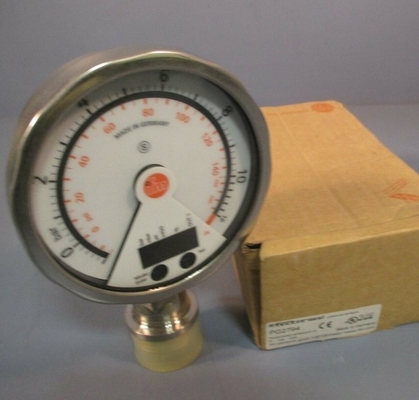

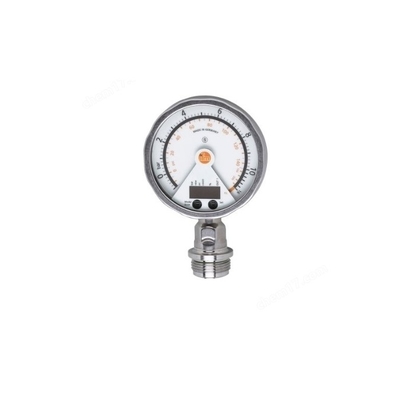

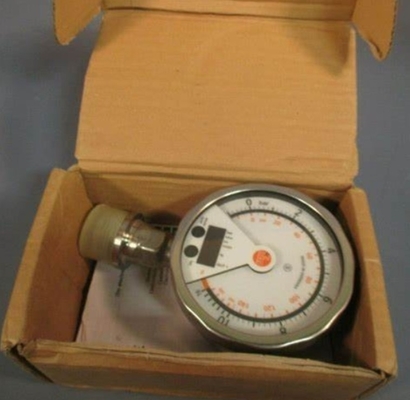

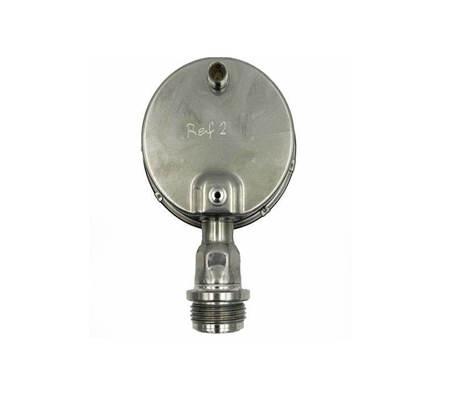

IFM Flush Pressure Sensor With Analog Display PG2794 PG-010-REA01-MFRKG/US/ /P

  • IFM Flush Pressure Sensor With Analog Display PG2794 PG-010-REA01-MFRKG/US/ /P
  • IFM Flush Pressure Sensor With Analog Display PG2794 PG-010-REA01-MFRKG/US/ /P
  • IFM Flush Pressure Sensor With Analog Display PG2794 PG-010-REA01-MFRKG/US/ /P
  • IFM Flush Pressure Sensor With Analog Display PG2794 PG-010-REA01-MFRKG/US/ /P
  • IFM Flush Pressure Sensor With Analog Display PG2794 PG-010-REA01-MFRKG/US/ /P
  • IFM Flush Pressure Sensor With Analog Display PG2794 PG-010-REA01-MFRKG/US/ /P
Place of Origin china
Brand Name IFM
Certification CE
Model Number PG2794
Minimum Order Quantity 1
Price USD$580
Packaging Details carton
Delivery Time 8-10weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measuring Range -1...10 Bar System Gold-plated Contacts
Medium Temperature [°C] -25...125; (145 Max. 1h) Min. Bursting Pressure 150 Bar
Highlight

PG2794 Flush pressure sensor

,

PG-010-REA01-MFRKG Flush pressure sensor

,

IFM Flush pressure sensor
Leave a Message
Product Description
Product characteristics
Number of inputs and outputs Number of digital outputs: 1; Number of analog outputs: 1
Measuring range
-1...10 bar -14.5...145 psi
Process connection threaded connection G 1 external thread Aseptoflex Vario
Application
System gold-plated contacts
Application flush mountable for the food and beverage industry
Media viscous media and liquids with suspended particles; liquids and gases
Medium temperature [°C] -25...125; (145 max. 1h)
Min. bursting pressure
150 bar 2175 psi
Pressure rating
50 bar 725 psi
Type of pressure relative pressure; vacuum
No dead space yes
MAWP (for applications according to CRN) [bar] 50
Electrical data
Operating voltage [V] 18...32 DC
Current consumption [mA] < 70; (24 V)
Min. insulation resistance [MΩ] 100; (500 V DC)
Protection class III
Reverse polarity protection yes
Power-on delay time [s] 6
Integrated watchdog yes
Inputs / outputs
Number of inputs and outputs Number of digital outputs: 1; Number of analog outputs: 1
Outputs
Total number of outputs 2
Output signal switching signal; analog signal; (configurable)
Electrical design PNP/NPN
Number of digital outputs 1
Output function normally open / closed; (configurable)
Max. voltage drop switching output DC [V] 2
Permanent current rating of switching output DC [mA] 250
Switching frequency DC [Hz] 50
Number of analog outputs 1
Analog current output [mA] 4...20, invertible; (scalable)
Max. load [Ω] (Ub - 10 V) / 20 mA
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Measuring/setting range
Measuring range
-1...10 bar -14.5...145 psi
Set point SP
-0.98...16 bar -14.2...232 psi
Reset point rP
-1...15.98 bar -14.5...231.8 psi
Analog start point
-1...13.5 bar -14.5...195.7 psi
Analog end point [bar] 1.5...16
In steps of
0.01 bar 0.1 psi
Accuracy / deviations
Switch point accuracy [% of the span] < ± 0,2; (Turn down 1:1)
Repeatability [% of the span] < ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation [% of the span] < ± 0,2; (Turn down 1:1 , linearity, incl. hysteresis and repeatability , limit value setting to DIN EN IEC 62828-1)
Linearity deviation [% of the span] < ± 0,15; (Turn down 1:1)
Hysteresis deviation [% of the span] < ± 0,15; (Turn down 1:1)
Long-term stability [% of the span] < ± 0,1; (Turn down 1:1; per year)
Temperature coefficient zero point [% of the span / 10 K] < ± 0,05; (0...70 °C)
Temperature coefficient span [% of the span / 10 K] < ± 0,15; (0...70 °C)
Reaction times
Response time [ms] < 10
Damping process value dAP [s] 0.01...30
Damping for the analog output dAA [s] 0.01...30
Step response time analog output [ms] 25
Operating conditions
Ambient temperature [°C] -25...80
Storage temperature [°C] -40...100
Protection IP 67; IP 69K
Tests / approvals
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated 10 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-5 Surge 0,5/1 kV
EN 61000-4-6 HF conducted 10 V
Shock resistance
DIN IEC 68-2-27 50 g (11 ms)
Vibration resistance
DIN IEC 68-2-6 20 g (10...2000 Hz)
MTTF [years] 100
Note on approval
Factory certificate available as download at www.factory-certificate.ifm
Mechanical data
Weight [g] 520.1
Material stainless steel (1.4404 / 316L); PA; FKM; PTFE; viewing glass: laminated safety glass 4 mm
Materials (wetted parts) ceramics (99.9 % Al2O3); stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4; PTFE
Min. pressure cycles 100 million
Process connection threaded connection G 1 external thread Aseptoflex Vario
Displays / operating elements
Display
Display unit 2 x LED, green
Switching status LED, yellow
Switch points LED ring, red
Function display alphanumeric display, red 4-digit
Measured values analog display, 0...350° rotatable, pointer not visible when unit disconnected
Measured values alphanumeric display, red 4-digit
With scale yes
Extended display range (max.)
16 bar 232 psi
