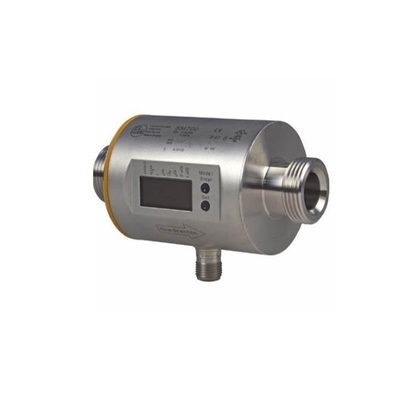

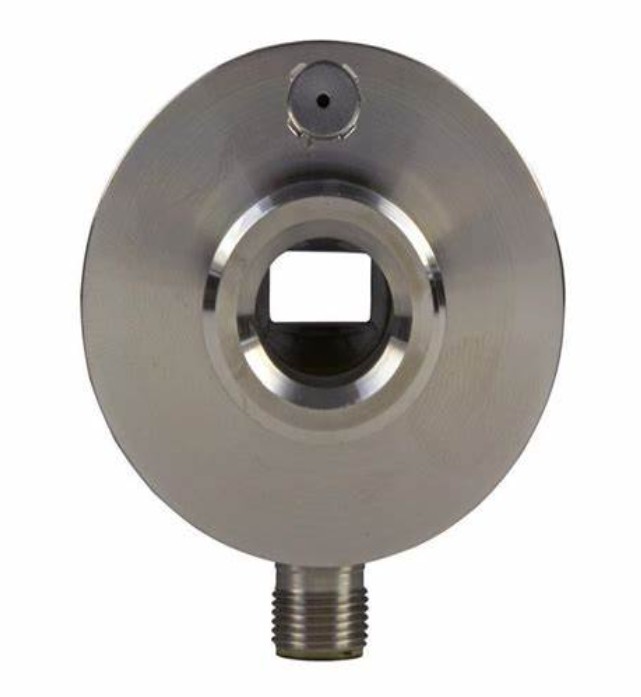

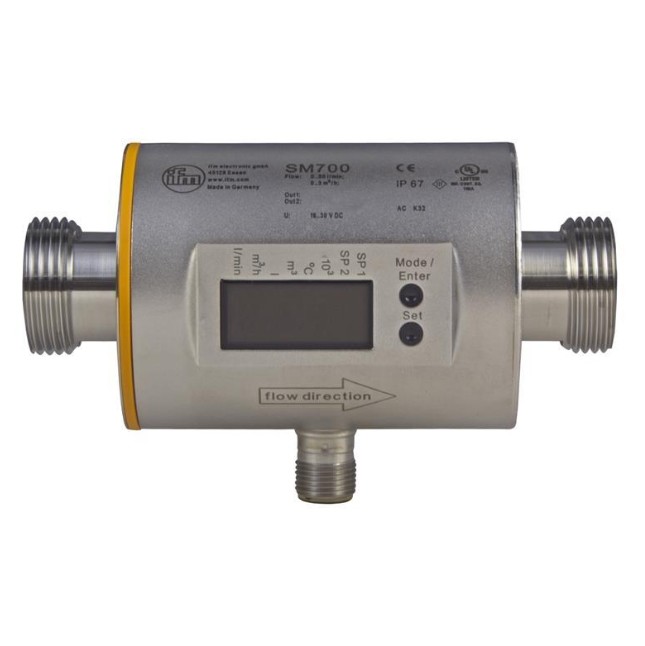

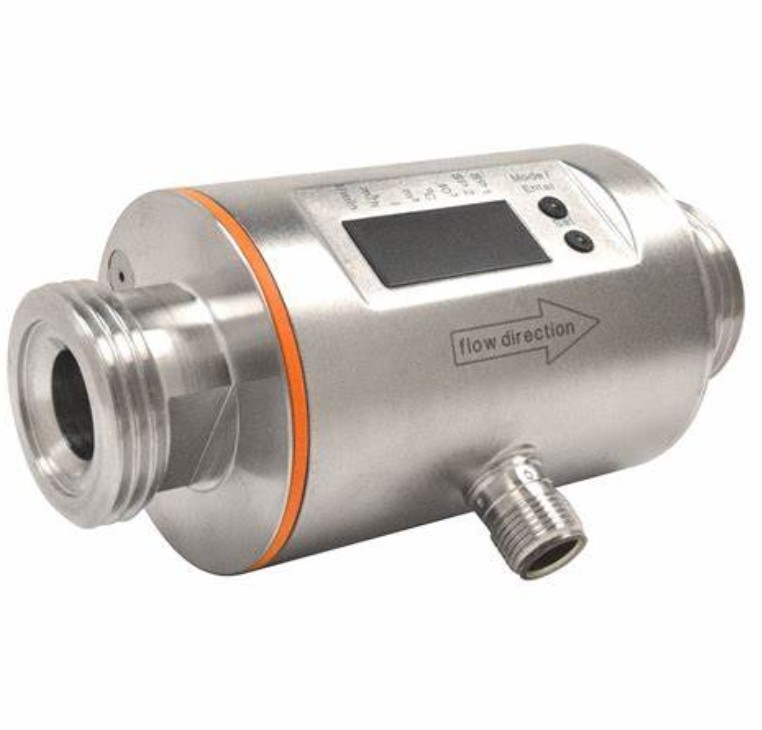

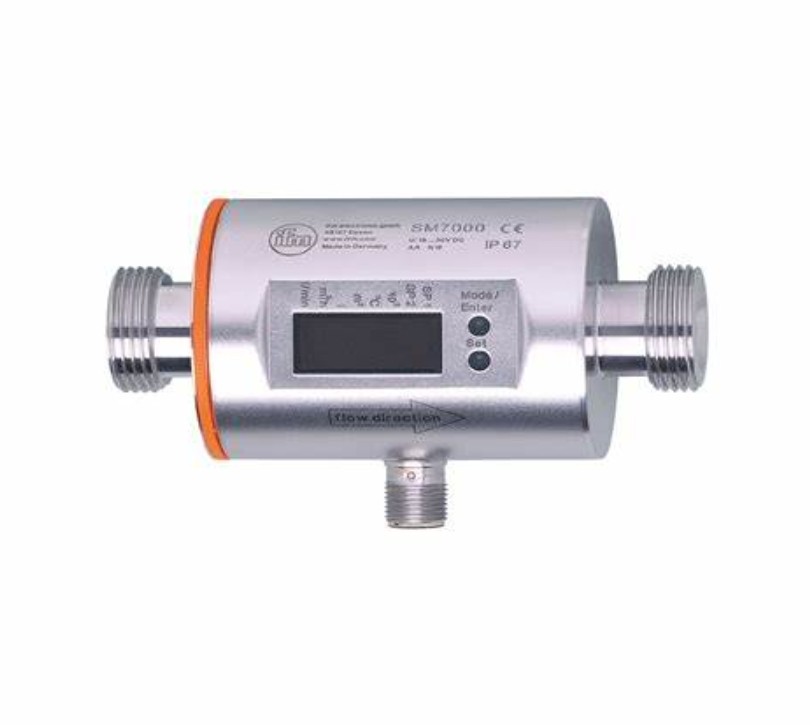

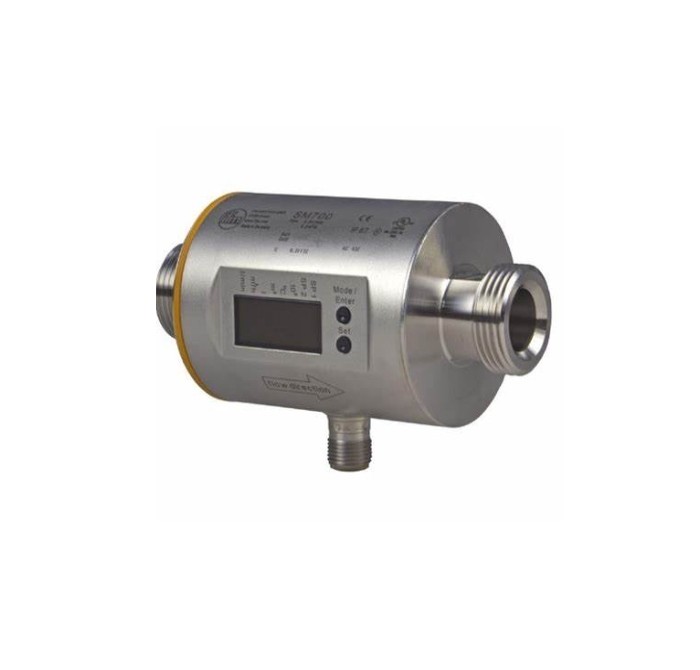

IFM Magnetic-inductive Flow Meter SM7004 SMR34GGX50KG/US100

  • IFM Magnetic-inductive Flow Meter SM7004 SMR34GGX50KG/US100
  • IFM Magnetic-inductive Flow Meter SM7004 SMR34GGX50KG/US100
  • IFM Magnetic-inductive Flow Meter SM7004 SMR34GGX50KG/US100
  • IFM Magnetic-inductive Flow Meter SM7004 SMR34GGX50KG/US100
  • IFM Magnetic-inductive Flow Meter SM7004 SMR34GGX50KG/US100
  • IFM Magnetic-inductive Flow Meter SM7004 SMR34GGX50KG/US100
Place of Origin china
Brand Name IFM
Certification CE
Model Number SM7004
Minimum Order Quantity 1
Price USD$1520

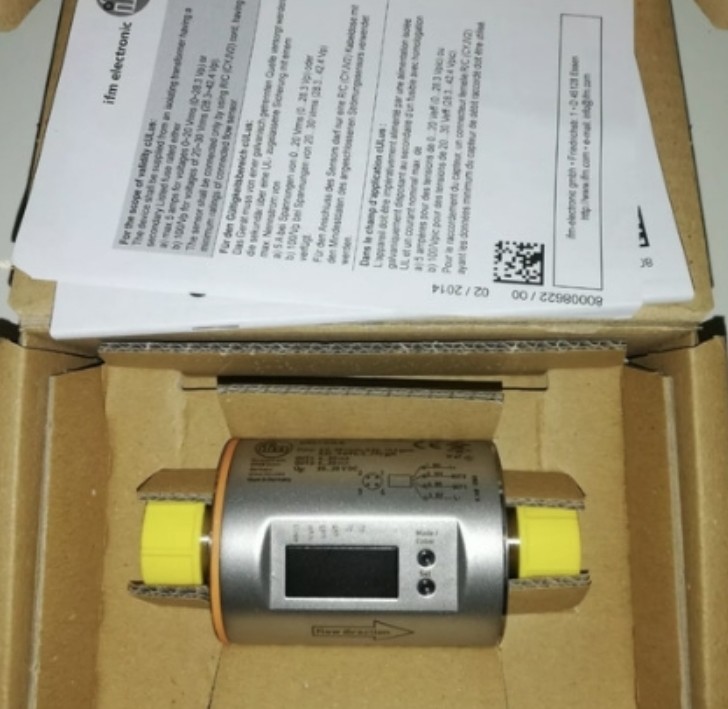

Packaging Details carton
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measuring Range 0.2...50 L/min System Gold-plated Contacts
Medium Temperature [°C] -10...70 Pressure Rating [MPa] 1.6
Highlight

Magnetic-inductive flow meter IFM

,

Magnetic-inductive flow meter SMR34GGX50KG/US100

,

Magnetic-inductive flow meter SM7004
Leave a Message
Product Description
Product characteristics
Number of inputs and outputs Number of analog outputs: 2
Measuring range
0.2...50 l/min 0.02...13.22 gpm
Process connection threaded connection G 3/4 DN20 flat seal
Application
System gold-plated contacts
Application for industrial applications
Installation connection to pipe by means of an adapter
Media Conductive liquids; water; water-based media
Note on media
conductivity: ≥ 20 µS/cm
viscosity: < 70 mm²/s (40 °C)
Medium temperature [°C] -10...70
Pressure rating [bar] 16
Pressure rating [MPa] 1.6
MAWP (for applications according to CRN) [bar] 11.2
Electrical data
Operating voltage [V] 20...30 DC; (to SELV/PELV)
Current consumption [mA] 120; (24 V)
Protection class III
Reverse polarity protection yes
Power-on delay time [s] 5
Inputs / outputs
Number of inputs and outputs Number of analog outputs: 2
Outputs
Total number of outputs 2
Output signal analog signal
Number of analog outputs 2
Analog current output [mA] 4...20; (scalable)
Max. load [Ω] 500
Overload protection yes
Measuring/setting range
Measuring range
0.2...50 l/min 0.02...13.22 gpm
Display range
-60...60 l/min -15.86...15.86 gpm
Resolution
0.1 l/min 0.02 gpm
Analog start point ASP
0...40 l/min 0...10.58 gpm
Analog end point AEP
10...50 l/min 2.64...13.22 gpm
In steps of
0.1 l/min 0.02 gpm
Temperature monitoring
Measuring range [°C] -20...80
Resolution [°C] 0.2
Analog start point [°C] -20...60
Analog end point [°C] 0...80
In steps of [°C] 0.2
Accuracy / deviations
Flow monitoring
Accuracy (in the measuring range) ± (2 % MW + 0,5 % MEW)
Repeatability ± 0,2% MEW
Temperature monitoring
Accuracy [K] ± 2,5 (Q > 1 l/min)
Reaction times
Flow monitoring
Response time [s] 0.15; (dAP = 0, T19)
Damping process value dAP [s] 0...3
Temperature monitoring
Dynamic response T05 / T09 [s] T09 = 20 (Q > 1 l/min)
Operating conditions
Ambient temperature [°C] -10...60
Storage temperature [°C] -25...80
Protection IP 67
Tests / approvals
EMC
DIN EN 60947-5-9 500 V withstand voltage (V DC)
CPA approval
model number 008MI
accuracy class -
maximum allowable error ± 2,5 % FS
Q (min) 0,01 m³/h
Q (t) -
Q (max) 3 m³/h
Shock resistance
DIN IEC 68-2-27 20 g (11 ms)
Vibration resistance
DIN IEC 68-2-6 5 g (10...2000 Hz)
MTTF [years] 175
Pressure equipment directive sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Mechanical data
Weight [g] 521.2
Housing tubular
Dimensions [mm] Ø 54 / L = 110
Material stainless steel (1.4404 / 316L); PBT-GF20; PC; FKM; TPE
Materials (wetted parts) stainless steel (1.4404 / 316L); PEEK; FKM
Process connection threaded connection G 3/4 DN20 flat seal
Displays / operating elements
Display
Display unit 6 x LED, green (l/min, m³/h, gpm, gph, °C, °F)
Measured values alphanumeric display, 4-digit
Programming alphanumeric display, 4-digit
Display unit l/min; m³/h; gpm; gph; °C; °F
Remarks
Remarks
MW = Measured value
MEW = Final value of the measuring range
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12; coding: A; Contacts: gold-plated
