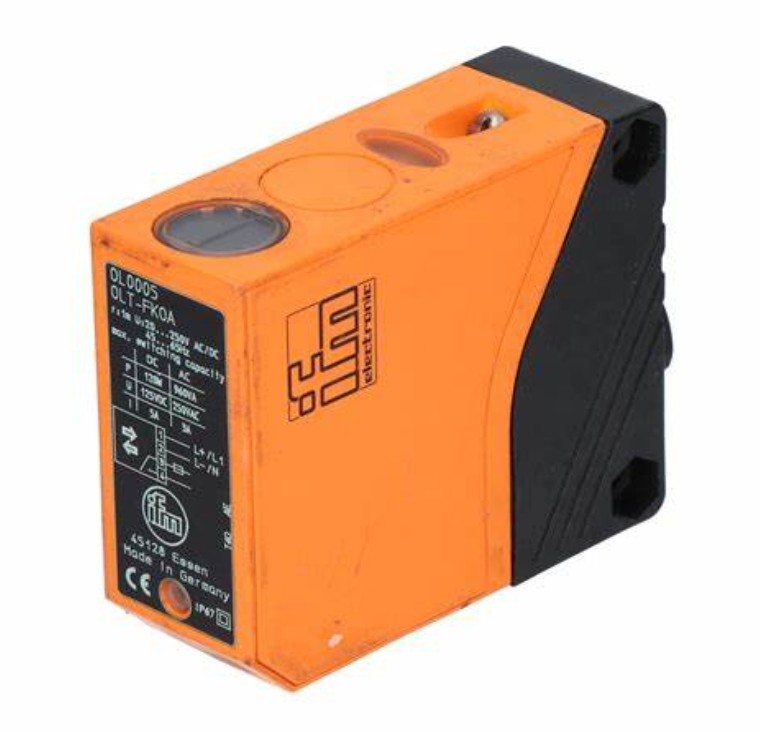

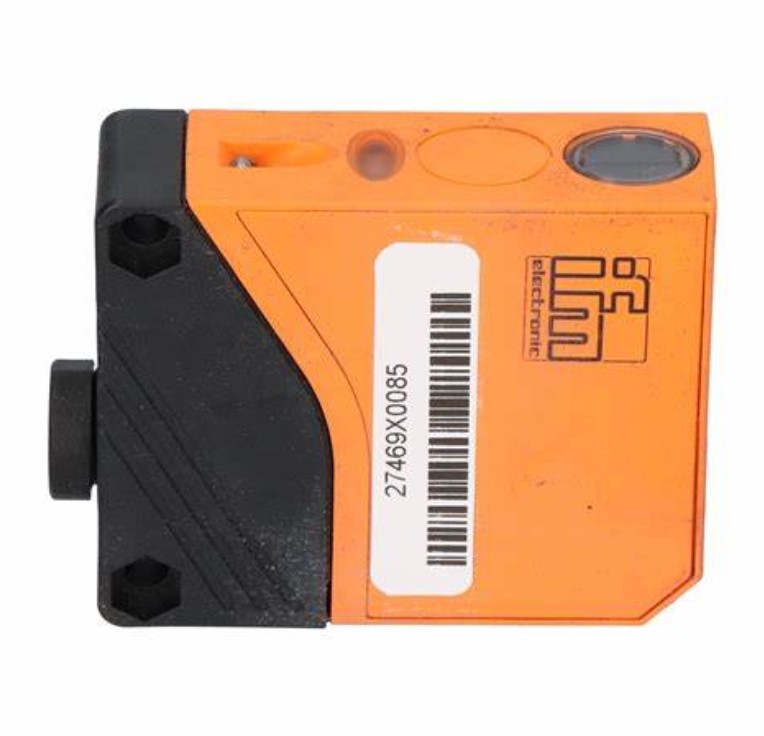

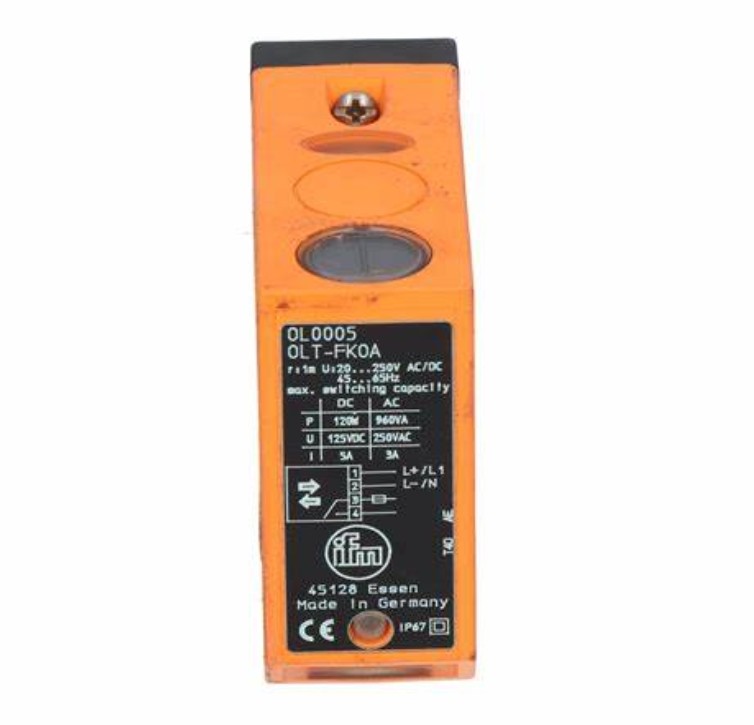

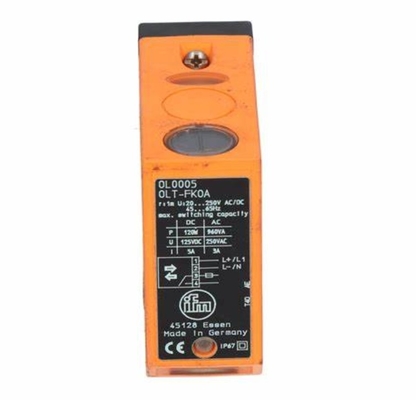

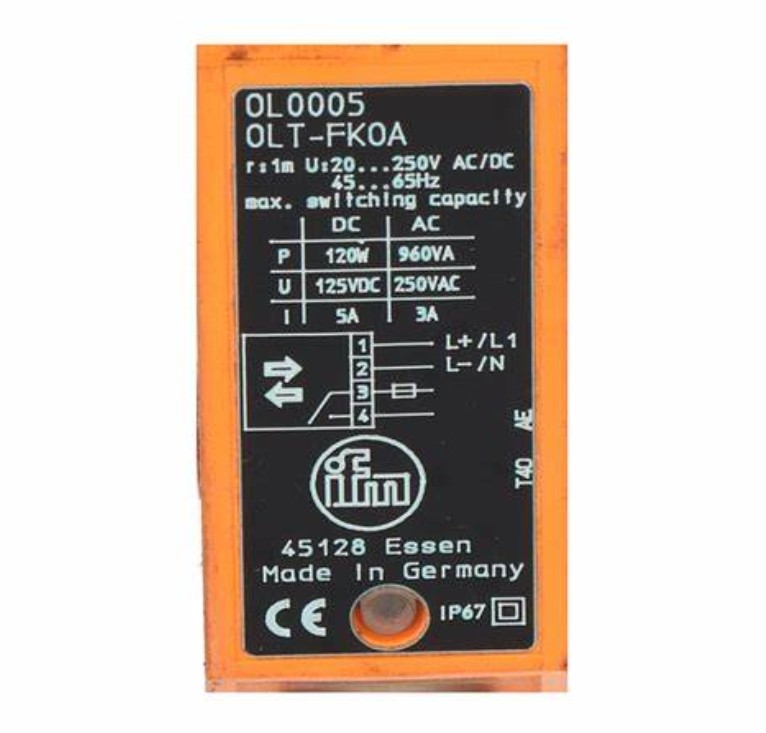

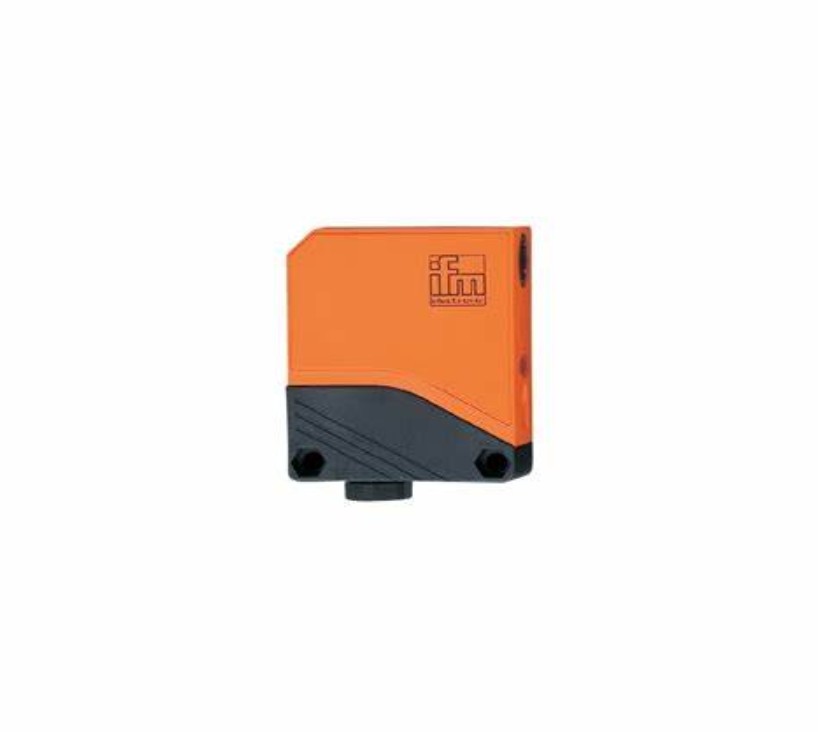

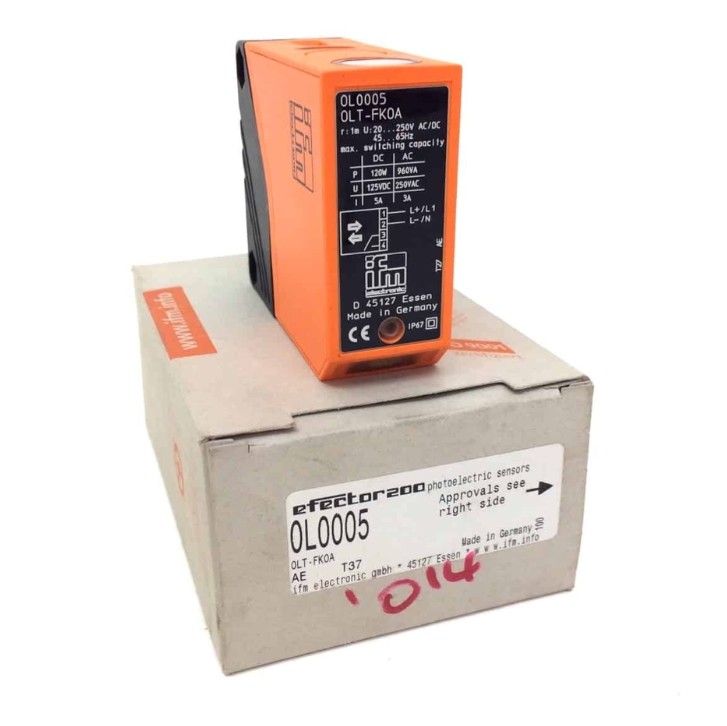

IFM OL0005 DIFFUSE REFLECTION SENSOR, INFRARED LIGHT, LO, DO

  • IFM OL0005 DIFFUSE REFLECTION SENSOR, INFRARED LIGHT, LO, DO
  • IFM OL0005 DIFFUSE REFLECTION SENSOR, INFRARED LIGHT, LO, DO
  • IFM OL0005 DIFFUSE REFLECTION SENSOR, INFRARED LIGHT, LO, DO
  • IFM OL0005 DIFFUSE REFLECTION SENSOR, INFRARED LIGHT, LO, DO
  • IFM OL0005 DIFFUSE REFLECTION SENSOR, INFRARED LIGHT, LO, DO
  • IFM OL0005 DIFFUSE REFLECTION SENSOR, INFRARED LIGHT, LO, DO
Place of Origin china
Brand Name IFM
Certification CE
Model Number OL0005
Minimum Order Quantity 1
Price USD$140
Packaging Details carton
Delivery Time 6-8weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Of Light Infrared Light Housing Rectangular
Frequency AC [Hz] 47...63 Protection Class II
Highlight

IFM diffuse reflection sensor

,

infrared light sensor

,

temperature transmitter sensor with warranty
Leave a Message
Product Description
Product characteristics
Type of light Infrared light
Housing rectangular
Application
Function principle Diffuse reflection sensor
Electrical data
Frequency AC [Hz] 47...63
Operating voltage [V] 20...250 AC/DC
Max. power consumption [VA] 4
Protection class II
Reverse polarity protection no
Type of light Infrared light
Wave length [nm] 880
Outputs
Electrical design Relay
Output function light-on/dark-on mode; (programmable)
Contact rating 250 V AC / 3 A / 960 VA, 125 V DC / 5 A / 120 W
Switching frequency AC [Hz] 10
Switching frequency DC [Hz] 10
Short-circuit proof no
Overload protection no
Monitoring range
Range [mm] 1...1000; (white paper 200 x 200 mm 90 % remission)
Range adjustable yes
Max. light spot diameter [mm] 300
Light spot dimensions refer to at maximum range
Operating conditions
Ambient temperature [°C] -25...80
Protection IP 67
Tests / approvals
EMC
EN 60947-5-2
EN 55011 class B
MTTF [years] 226
Mechanical data
Weight [g] 171
Housing rectangular
Dimensions [mm] 75 x 27 x 62
Material PA; PBT
Lens material
PMMA
Lens alignment Side sensing
Displays / operating elements
Display
Switching status 1 x LED, yellow
Power 1 x LED, green
Function 1 x LED, red
Electrical connection
Required protection miniature fuse to IEC60127-2 sheet 1; ≤ 5 A; fast acting
Remarks
Remarks
Recommendation: check the unit for reliable function after a short circuit.
Pack quantity 1 pcs.
Electrical connection
Connection terminals: ...1.5 mm²; Cable sheath: Ø 4.5...10 mm; Cable gland: M16 X 1.5
