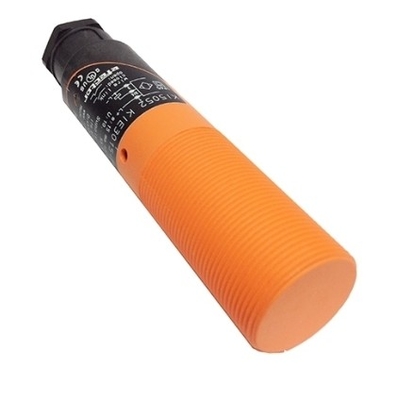

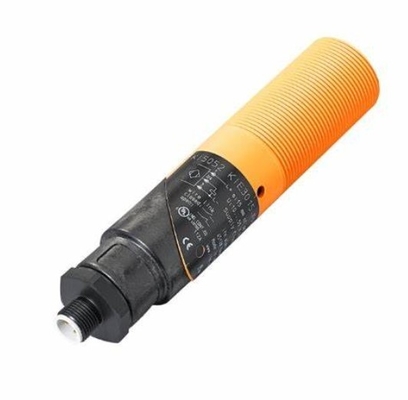

Ifm Efector KI5052 Capacitive Sensor 30mm Threaded Tube adjustable 15mm Range PNP NO/NC M12

  • Ifm Efector KI5052 Capacitive Sensor 30mm Threaded Tube adjustable 15mm Range PNP NO/NC M12
  • Ifm Efector KI5052 Capacitive Sensor 30mm Threaded Tube adjustable 15mm Range PNP NO/NC M12
  • Ifm Efector KI5052 Capacitive Sensor 30mm Threaded Tube adjustable 15mm Range PNP NO/NC M12
  • Ifm Efector KI5052 Capacitive Sensor 30mm Threaded Tube adjustable 15mm Range PNP NO/NC M12
Place of Origin china
Brand Name ifm
Certification CE
Model Number KI5052
Minimum Order Quantity 1
Price USD$50
Packaging Details carton
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Electrical Design PNP Sensing Range [mm] 15
Housing Threaded Type Dimensions [mm] M30 X 1.5 / L = 143
Highlight

M12 Capacitive sensor

,

Ifm Efector KI5052 Capacitive Sensor

,

30mm Threaded Capacitive sensor
Leave a Message
Product Description
Product characteristics
Electrical design PNP
Output function normally open / closed; (selectable)
Sensing range [mm] 15
Housing Threaded type
Dimensions [mm] M30 x 1.5 / L = 143
Electrical data
Operating voltage [V] 10...55 DC; (cULus - Class 2 source required)
Current consumption [mA] 14; (24 V)
Protection class II
Reverse polarity protection yes
Outputs
Electrical design PNP
Output function normally open / closed; (selectable)
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 250
Switching frequency DC [Hz] 40
Short-circuit proof yes
Overload protection yes
Monitoring range
Sensing range [mm] 15
Operating conditions
Ambient temperature [°C] -25...70
Protection IP 65
Increased immunity yes; (Increased immunity to conducted radio frequency interference)
Tests / approvals
EMC
EN 60947-5-2
MTTF [years] 743
Mechanical data
Weight [g] 146
Housing Threaded type
Mounting non-flush mountable
Dimensions [mm] M30 x 1.5 / L = 143
Thread designation M30 x 1.5
Material PBT; end cap: PC
Displays / operating elements
Display
Switching status 1 x LED, yellow
Accessories

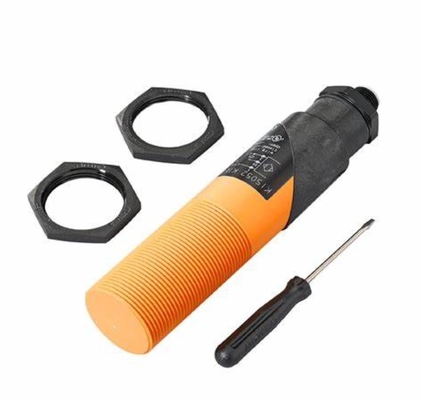

Items supplied
lock nuts: 2
Remarks
Pack quantity 1 pcs.
Electrical connection - plug

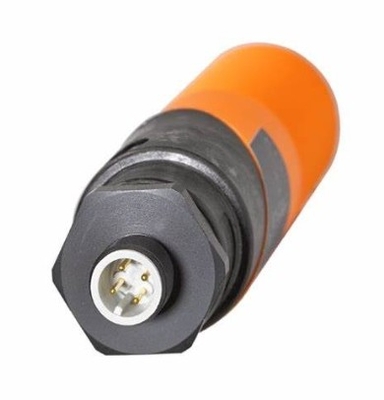

Connection Connector: 1 x M12; coding: A
