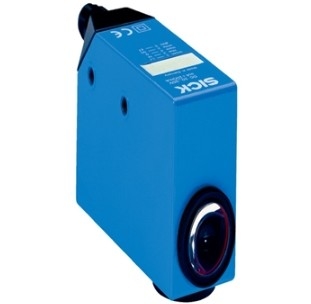

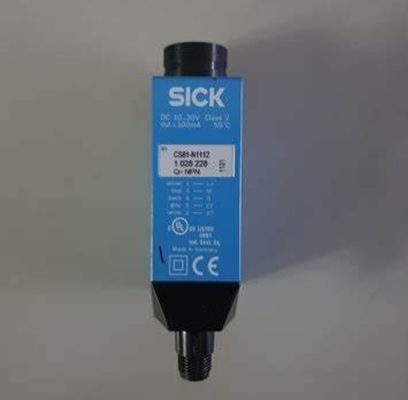

Sick CS81-N1112 Color Sensors Active Part Status And NPN Output For Industrial Applications

  • Sick CS81-N1112 Color Sensors Active Part Status And NPN Output For Industrial Applications
  • Sick CS81-N1112 Color Sensors Active Part Status And NPN Output For Industrial Applications
  • Sick CS81-N1112 Color Sensors Active Part Status And NPN Output For Industrial Applications
  • Sick CS81-N1112 Color Sensors Active Part Status And NPN Output For Industrial Applications
Place of Origin china
Brand Name Sick
Certification CE
Model Number CS81-N1112
Minimum Order Quantity 1
Price USD$360
Delivery Time 8-16weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Part Number 1028228 Manufacturer SICK
Part Status Active Output NPN
Highlight

CS81-N1112 Color Sensors

,

NPN Output Color Sensors

,

Industrial Applications Color Sensors
Leave a Message
Product Description

Specification:

Part Number 1028228
Shock load: According to IEC 60068
Wave length: 470 nm, 525 nm, 640 nm
Type of light: Visible blue light, Visible green light, Visible red light
Sensing distance : 12.5 mm
Input, teach-in (ET): NPN:, Run: U = 10 V ... < UV, Teach: U < 2 V
Output (channel): 1 color
Light source : LED
UL File No.: NRKH.E181493 & NRKH7.E181493
Light spot size: 2 mm x 4 mm
Light spot direction: Vertical
Supply voltage: 10 V DC ... 30 V DC
Response time : 500 µs
160 µs
85 µs
Time delay: Deactivation delay 20 ms, shiftable
Housing material: Metal, Zinc diecast
Dimensions (W x H x D): 30.4 mm x 80 mm x 53 mm
Protection class : II
Input, blanking input (AT) : Blanked: U < 2 V, Free-running: U > 10 V ... < Uv, NPN:
Retention time (ET): 25 ms, non-volatile memory
Switching frequency : Adjustable, 1 kHz, 3 kHz, 6 kHz
Teach-in mode: Static 1-point teach-in
Output current Imax. : < 100 mA
Switching output: NPN: HIGH = approx. VS / LOW ≤ 2 V
Connection type: Male connector M12, 5-pin
Switching mode: NPN
Ambient operating temperature: -10 °C ... +55 °C
Ambient storage temperature: -20 °C ... +75 °C
Fieldbus interface: -
Power consumption : < 120 mA
Weight: 400 g
Enclosure rating: IP 67
Housing design (light emission): Rectangular
Circuit protection: VS connections reverse-polarity protected
Output Q short-circuit protected
Interference suppression
Sensing distance tolerance: ± 3 mm
Ripple : < 5 Vpp
Category
Manufacturer
SICK, Inc.
Series
CS8
Packaging



Bu
Part Status
Active
Output
NPN
Resolution (Bits)
-
Features
-
Voltage - Supply
10 V ~ 30 V
Current - Supply (Max)
120mA
Operating Temperature
-10°C ~ 55°C
Package / Case
Module
