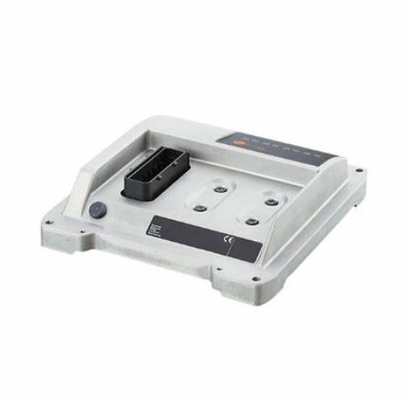

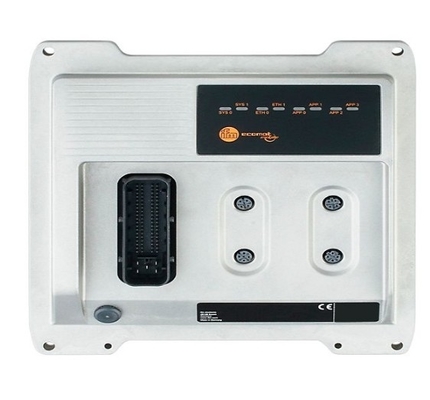

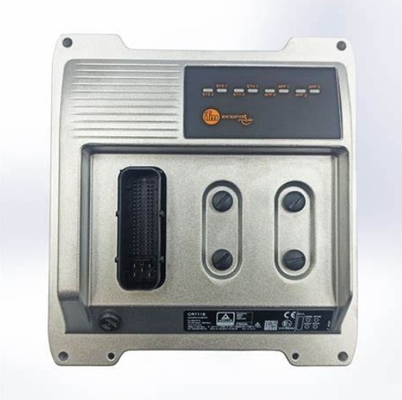

IFM - CR711S Ecomatcontroller I/O FUNTIONS 32 BIT CANOPEN 8-32DC M12 M4X1 219 X 47 X 203MM

  • IFM - CR711S Ecomatcontroller I/O FUNTIONS 32 BIT CANOPEN 8-32DC M12 M4X1 219 X 47 X 203MM
  • IFM - CR711S Ecomatcontroller I/O FUNTIONS 32 BIT CANOPEN 8-32DC M12 M4X1 219 X 47 X 203MM
  • IFM - CR711S Ecomatcontroller I/O FUNTIONS 32 BIT CANOPEN 8-32DC M12 M4X1 219 X 47 X 203MM
  • IFM - CR711S Ecomatcontroller I/O FUNTIONS 32 BIT CANOPEN 8-32DC M12 M4X1 219 X 47 X 203MM
Place of Origin china
Brand Name IFM
Certification CE
Model Number CR711S
Price USD$990
Delivery Time 4-6weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Voltage [V 1 Current Consumption [mA 1
Reverse Polarity Protectionyes Yes Number Of Digital Inputs 32
Highlight

IFM - CR711S Ecomatcontroller

,

I/O FUNTIONS Ecomatcontroller

,

32 BIT CANOPEN Ecomatcontroller
Leave a Message
Product Description
  • powerful 32 bit triple core controllers with large application memory
  • Certified as safety controller with CANopen Safety support
  • Scalable inputs and outputs for standard and safety applications
  • High-performance CAN and Ethernet interfaces for various communication tasks
  • Freely programmable to IEC 61131-3 with CODESYS 3.5

Electrical data
Operating voltage [V] 8...32 DC
Current consumption [mA] < 400
Reverse polarity protection yes
Inputs / outputs
Total number of inputs and outputs 60
Number of inputs and outputs Number of digital inputs: 32; Number of analog inputs: 16; Number of frequency inputs: 8; Number of resistor inputs: 4; Number of digital outputs: 27; Number of analog outputs: 1
Inputs
Number of frequency inputs 8
Number of resistor inputs 4
Number of digital inputs 32
Number of analog inputs 16
Analog input (current) [mA] 0...20
Analog input (voltage) [V] 0...32
Outputs
Number of digital outputs 27
Number of analog outputs 1
Analog voltage output [V] 0...10
Short-circuit protection yes
Number of PWM outputs 27
Number of PWM-I outputs 18
Number of outputs with H-bridge 3
Software / programming
Parameter setting options input/output functions
PLC function to IEC 61131-3 yes
Interfaces
Number of CAN interfaces 4
Number of Ethernet interfaces 1
Number of R232 interfaces 1
Operating conditions
Storage temperature [°C] -40...85
Protection IP 65; IP 67; (in conjunction with a corresponding connector)
Safety classification
Complies with the requirements
ISO 13849-1: 2015 PL d
IEC 62061 SIL 2
Mechanical data
Weight [g] 1525.5
Type of mounting free-standing
Dimensions [mm] 219 x 47 x 203
Accessories
Items supplied
Protective cap: M12
self-tapping screw: 1 x M4, for shield connection
Remarks
Pack quantity 1 pcs.
