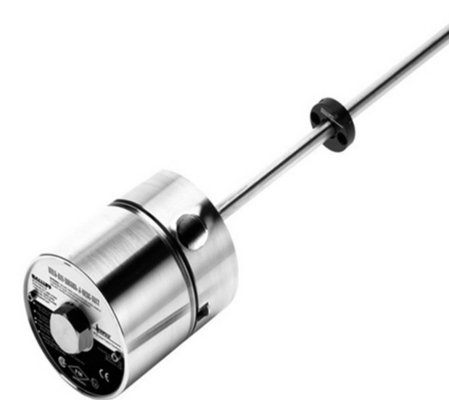

Balluff BTL7-S571-M0350-B-KA10 Magnetostrictive Linear Position Sensors In Rod Design
| Place of Origin | china |
|---|---|
| Brand Name | Balluff |
| Certification | CE |
| Model Number | BTL7-S571-M0350-B-KA10 |
| Minimum Order Quantity | 1 |
| Price | USD$790 |
| Packaging Details | carton |
| Delivery Time | 6-8weeks |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 500pc |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Style | Rod Series | Mounting Part | Threaded Flange 3/4-16UNF |
|---|---|---|---|
| Housing Material | Aluminum, Anodized | Connection | Cable, 5.00 M, PUR |
| Highlight | Balluff BTL7-S571-M0350-B-KA10,Magnetostrictive Linear Position Sensors |
||
Product Description
- Style
- Rod series
- Mounting part
- Threaded flange 3/4-16UNF
- Housing material
- Aluminum, Anodized
- Magnets, number max.
- 1
- Connection
- Cable, 5.00 m, PUR
- Interface
- SSI
- Measuring range
- 350 mm
- Sampling frequency max.
- 1250 Hz
- Non-linearity max.
- ±30 µm
- Repeat accuracy
- ≤ ± 5 µm (typ. ± 2.5 µm)
- Operating voltage Ub
- 10...30 VDC
- Ambient temperature
- -40...85 °C
- IP rating
- IP68
- Approval/Conformity
- CE
cULus
EAC
WEEE
