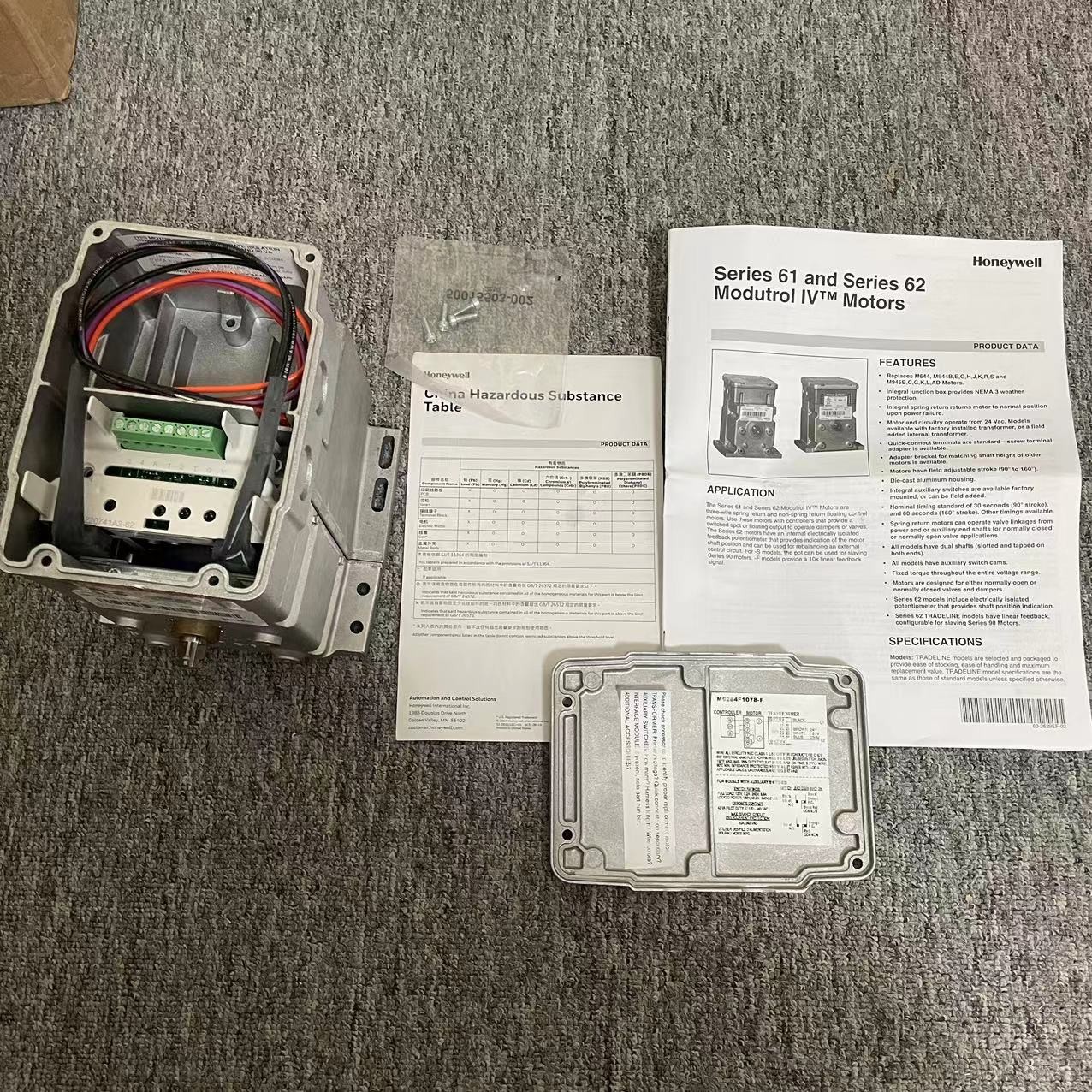

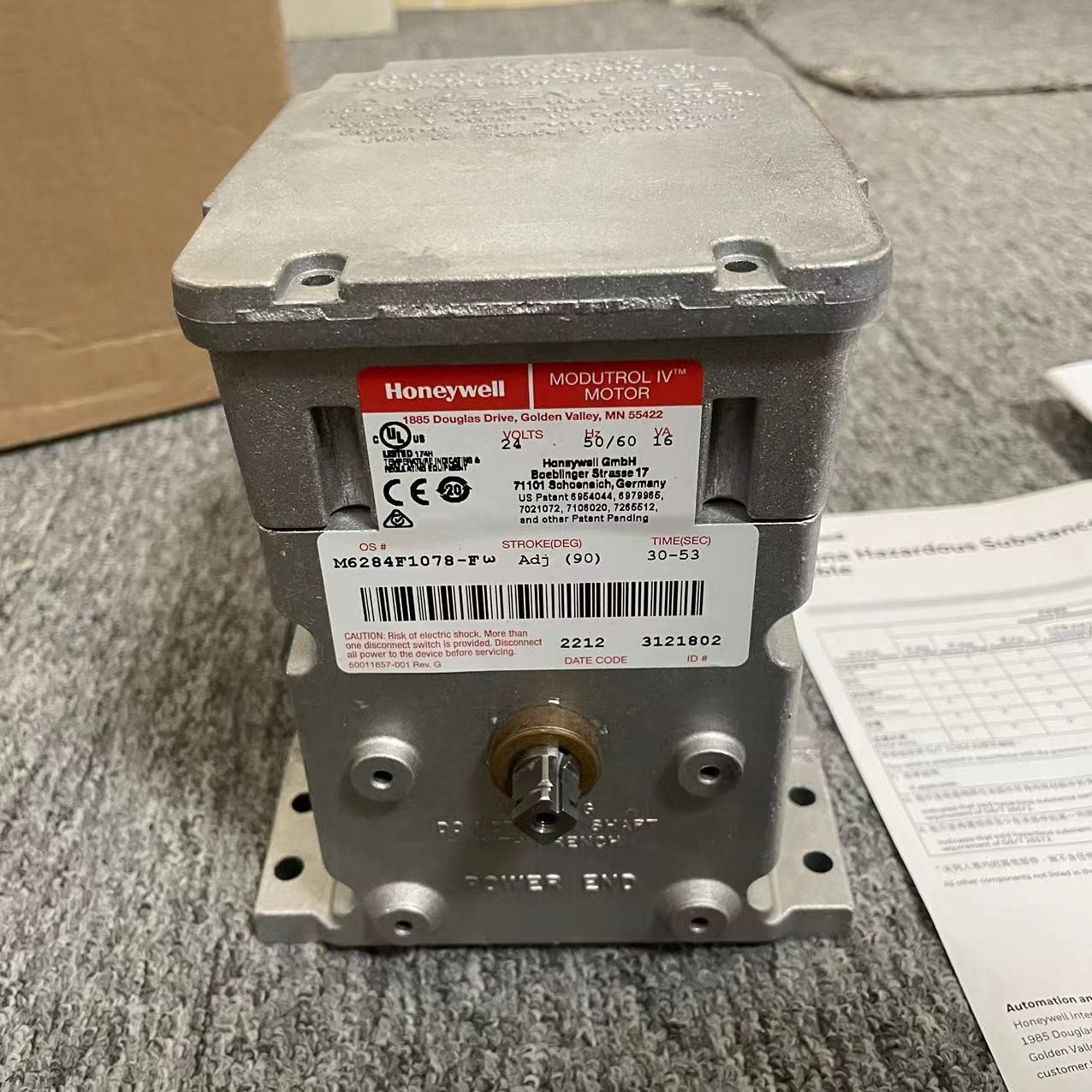

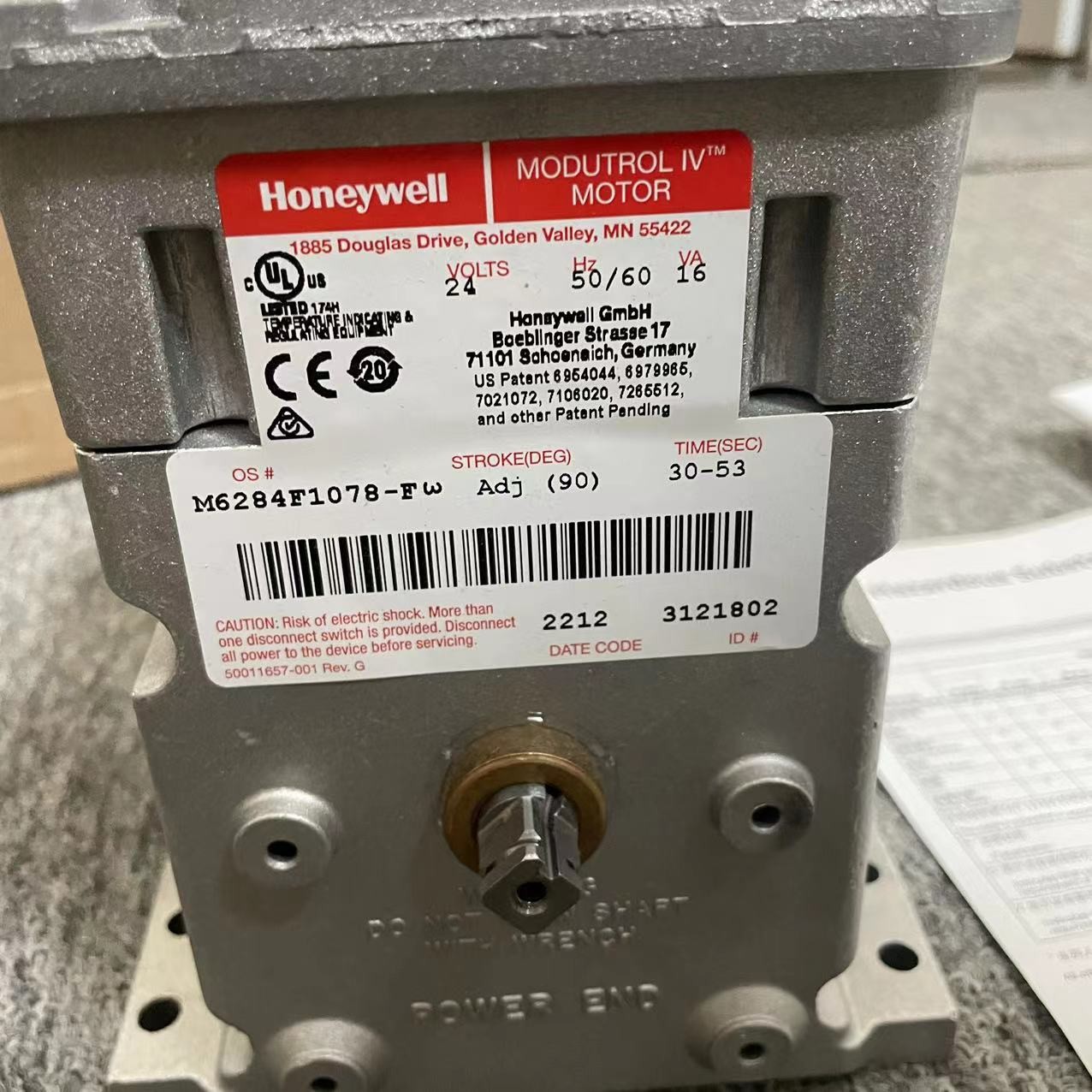

Original Honeywell M6284F1078-F Modutrol Motor M6284F1013 Servo Actuator Stock

The M6284F1078-F/U, Series 62 Modutrol IV Motor features and is a non-spring return dual ended shaft floating control motor. This motor is used with a controller to provide a floating output to operate dampers or valves. Additionally, this high-spec control motor, features an integral junction box with NEMA 3 weather protection, operates from 24 Vac and has 2 auxiliary switches. Hardwearing and with a long service life, the durable die-cast aluminium housing helps protect the controller from everyday industrial environmental abuse.

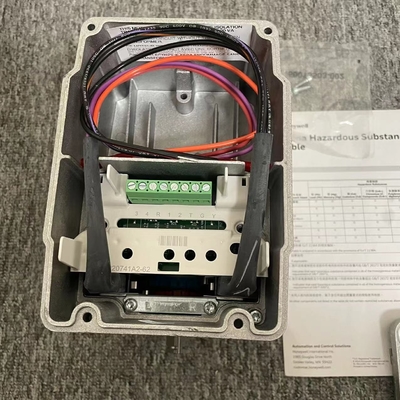

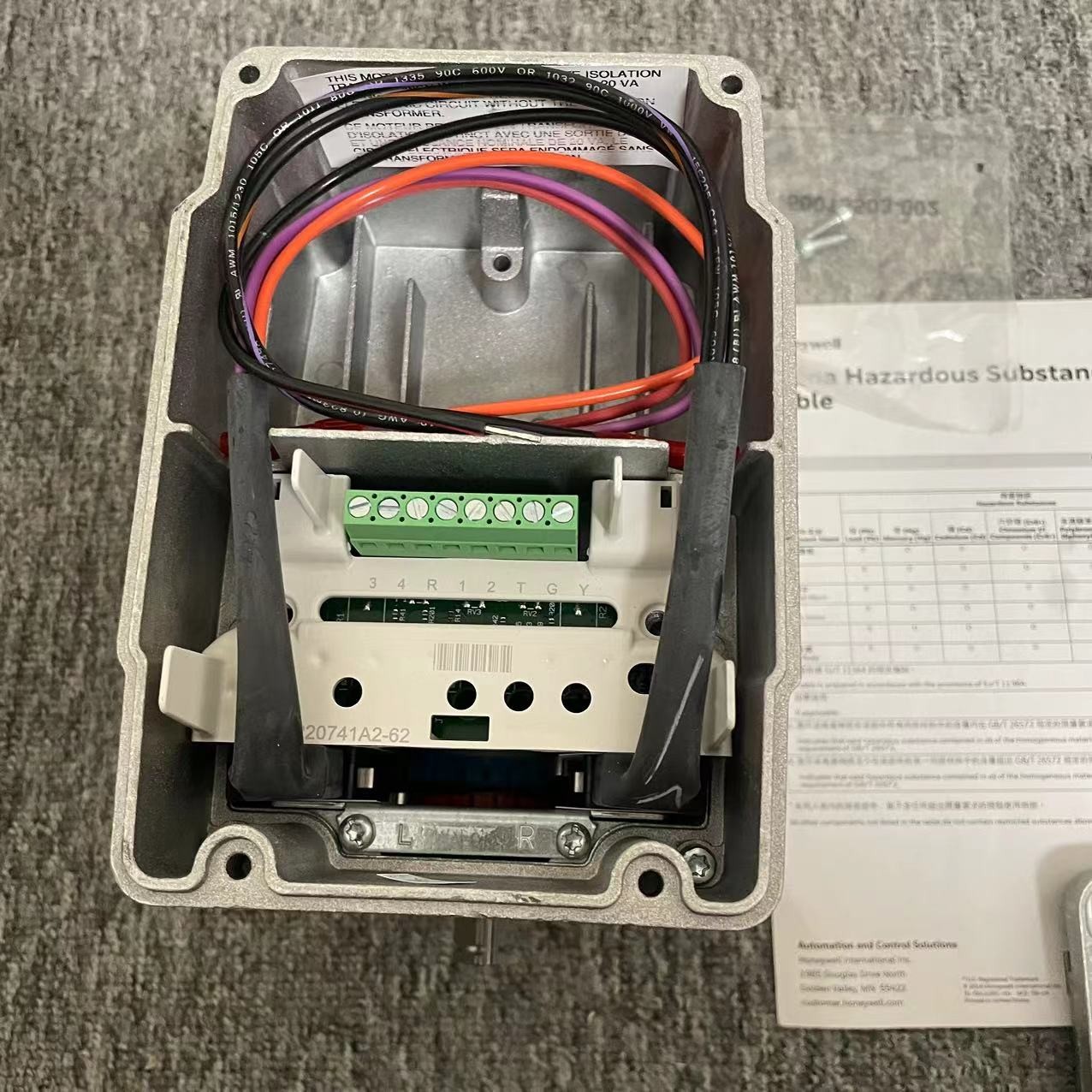

Screw terminals are standard. The motors have an internal electrically isolated feedback potentiometer that provides indication of the motor shaft position and can be used for slaving Series 90 Motors or rebalancing an external control circuit. Part of the Modutrol IV family, these motors are ideal for damper and valve control in HVAC industrial burner applications and air handling installations.

Modutrol IV Control Motor Specification

• Ideal for damper and valve control industrial burners
• Floating control with feedback
• Motor and circuit operate at 24 Vac
• Fixed torque through voltage range
• Linear 10k feedback
• 2 Auxiliary switches
• Crankshaft 9.5 mm square
• Lifetime - 60000 cycles
• Nema 3 weather protection
• Quick disconnect terminals
• Die-cast aluminium housing
•
