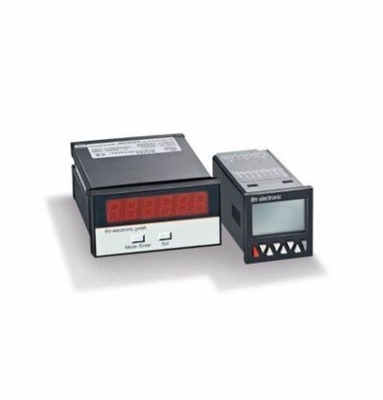

IFM Multifunction Display For Monitoring Revolution Speed And Time DX2023 DISPLAY/FX460/PNP OUT/AC/DC

  • IFM Multifunction Display For Monitoring Revolution Speed And Time DX2023 DISPLAY/FX460/PNP OUT/AC/DC
  • IFM Multifunction Display For Monitoring Revolution Speed And Time DX2023 DISPLAY/FX460/PNP OUT/AC/DC
  • IFM Multifunction Display For Monitoring Revolution Speed And Time DX2023 DISPLAY/FX460/PNP OUT/AC/DC
  • IFM Multifunction Display For Monitoring Revolution Speed And Time DX2023 DISPLAY/FX460/PNP OUT/AC/DC
Place of Origin china
Brand Name IFM
Certification CE
Model Number DX2023
Minimum Order Quantity 1
Price USD$251
Packaging Details carton
Delivery Time 2-3weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dimensions [mm] 48 X 112 X 116 Frequency AC [Hz] 50...60
Operating Voltage [V] 115...230 AC / 18...30 DC Number Of Digital Inputs 2
Highlight

OUT AC/DC Multifunction display

,

DX2023 Multifunction display

,

PNP Multifunction display
Leave a Message
Product Description
Product characteristics
Dimensions [mm] 48 x 112 x 116
Application
Application universal evaluation and display for all physical units which can be derived from pulse sequences
Electrical data
Frequency AC [Hz] 50...60
Operating voltage [V] 115...230 AC / 18...30 DC
Current consumption [mA] 100
Inputs / outputs
Number of inputs and outputs Number of digital inputs: 2; Number of digital outputs: 4
Inputs
Number of digital inputs 2
Outputs
Number of digital outputs 4
Overload protection yes
Operating conditions
Ambient temperature [°C] -20...60
Storage temperature [°C] -25...70
Protection IP 65
Protection rating terminals IP 20
Tests / approvals
EMC
EN 61000-6-2
EN 61000-6-3
EN 61000-6-4
Mechanical data
Weight [g] 352
Type of mounting panel cutout: 91 x 43 mm
Dimensions [mm] 48 x 112 x 116
Material Noryl UL94-V-0
Displays / operating elements
Display
Color display full graphic LCD display, Touch screen
Electrical connection
Connection screw terminals:
