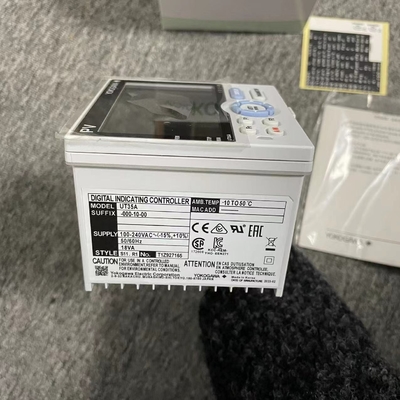

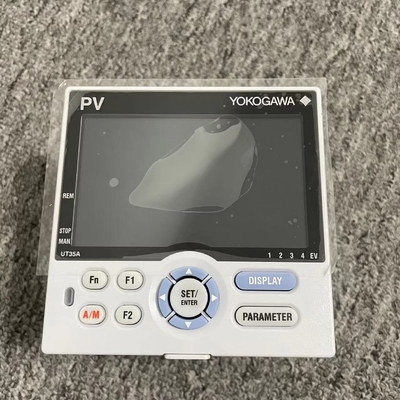

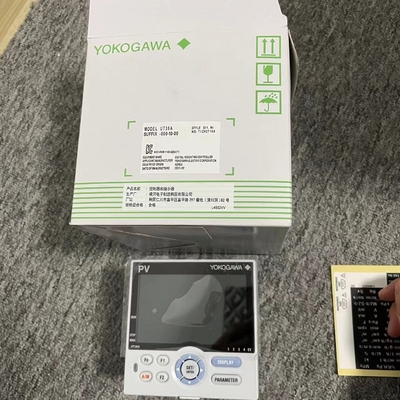

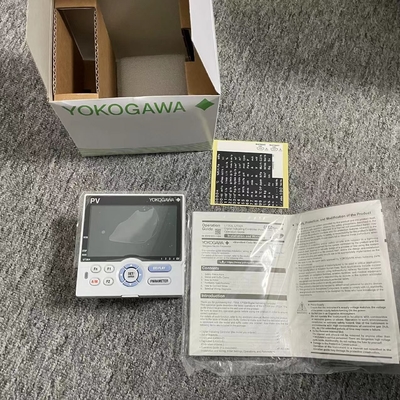

UT35A Temperature Digital Controller UT35A-001-11-00 UT35A-001-10-00 UT35A-000-10-00 Original New

The UT35A and UT32A temperature controllers employ an easy-to-read, 14-segment large color LCD display, along with navigation keys, thus greatly increasing the monitoring and operating capabilities. A ladder sequence function is included as standard. The short depth of the controller helps save instrument panel space. The UT35A/UT32A also support open networks such as Ethernet communication.

UT35A and UT32A Temperature Controller Features

• 4 target setpoints (PID numbers) available as standard
• 3 alarm independent common terminals available as standard
• Ladder sequence programs can be built
• Simple operation
• Up to 8 DOs (combinations available)
• Multiple language operation manual (Japanese, English, German, French, Spanish, Chinese and Korean) available. Please specify the desired language when ordering.
• Detailed code model available to customize specifications best suited to you.

• Control Modes

  The control mode allows easily configuring settings and making changes with parameters.

• Single-loop control

• 5 Built-in Control Types

  • PID control
  • ON/OFF control (1 point of hysteresis)
  • ON/OFF control (2 points of hysteresis)
  • Two-position, two-level control
  • Heating/cooling control



  For the correspondence between the above control mode and control types for each model, please refer to the specifications.

  Ladder Sequence Control

  With built-in ladder sequence control, the range of applications are dramatically increased. This feature is standard in all the UTAdvanced controllers (except UM33A). The ladder sequence control function can replace a small PLC required by the application. Sequence control and PID control can be performed simultaneously.

• Monitoring and control of external machinery
  E.g.: Lamps, switches, timers
• Solve digital input/output logic functionality easily.
  Number of basic command types: 13
  Number of application command types: 73

• [Example of ladder instruction]	[Example of ladder programming]

  Application Examples of Ladder Sequence Program

  Alarm Sequence Control Circuits Can be Reduced
  The ladder sequence program is built in the UTAdvanced as standard. The ladder sequence function enables monitoring and controlling peripheral devices such as relays, thus making it possible to reduce costs.

  [Conventional] Alarm action was built by a sequence control circuit (relay, timer, etc.) outside of the controller.

  [UTAdvanced] Alarm action is built by the ladder sequence program inside the UTAdvanced, thus making it possible to reduce costs. Function PV High, PV Low, Dev High, etc Number 2 Number 1
