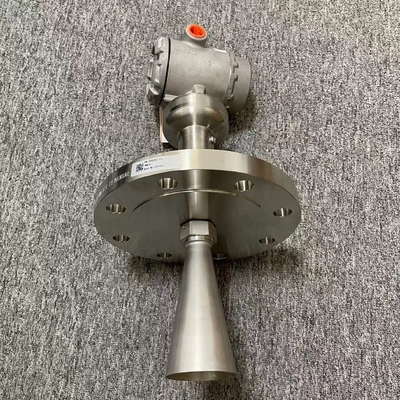

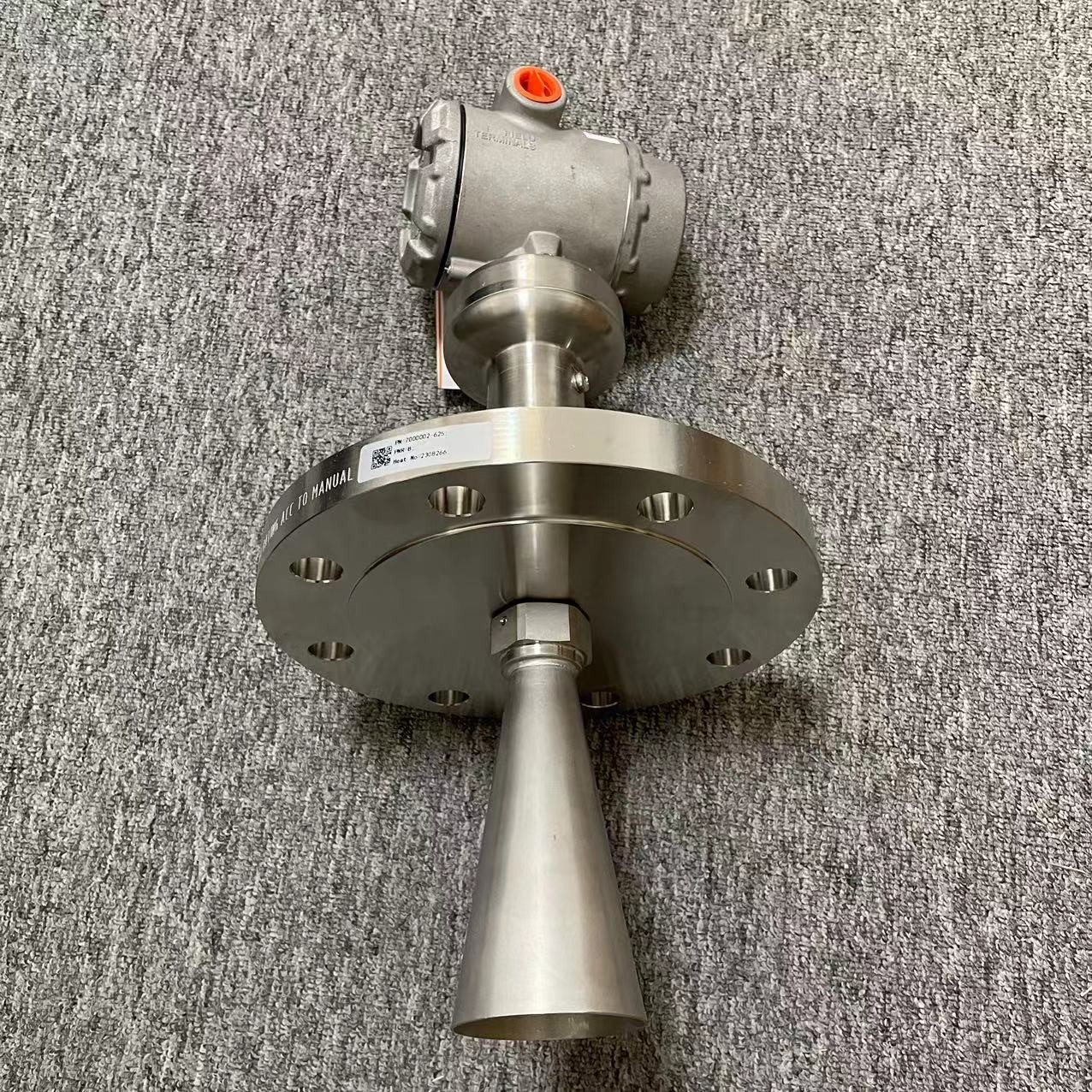

Rosemount Original 5408 Level Transmitter 5408A1SHS1E11R4AACAB3M5Q4
| Place of Origin | - |
|---|---|
| Brand Name | Rosemount |
| Certification | - |
| Model Number | Rosemount |
| Minimum Order Quantity | 1 |
| Price | USD540/PC |
| Packaging Details | Original |
| Delivery Time | 4-6WEEKS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operating Temperature | -60 To +250 °C | Measurement Range | 492 Ft (150m) |
|---|---|---|---|
| Accuracy | ± 0.08 In | Safety | IEC 61508 Certified To SIL 2 |
| Highlight | Original 5408 Rosemount Level Transmitter,Rosemount Rosemount Level Transmitter OEM,5408A1SHS1E11R4AACAB3M5Q4 |
||
Product Description
Specifications
- Accuracy
- Standard: ± 0.08 in. (± 2 mm)
Ultra accuracy: ± 0.04in. (± 1mm)
- Measurement Range
- 492 ft (150m), 82 ft (25 m) for Rosemount 5408:SIS in Safety mode
- Operating Pressure
- -15 to 1450 psi (-1 to 100 bar)
- Operating Temperature
- -76 to +482 °F (-60 to +250 °C)
- Power Supply
- 4-20mA/HART: 12-42.4 VDC (12-30 VDC in Intrinsically Safe installations)
Foundation™ Fieldbus: 9-32 VDC (9-30 VDC in Intrinsically Safe installations and 9-17.5 VDC for FISCO)
- Communication Protocol
- 4-20mA HART® (2-wire loop-powered), Foundation™ Fieldbus
- Certifications/Approvals
- ATEX, IECEx, USA, Canadian, 3-A, CRN, see full specs for complete list of certifications
- Safety
- IEC 61508 certified to SIL 2
TÜV tested and WHG approved for overfill prevention
- Antenna type
- Cone antenna, Process seal antenna, Parabolic antenna
- Diagnostics
- Enhanced diagnostics enabling proactive maintenance: Signal Quality Metrics, Smart Meter Verification
- Warranty
- Up to 10-year limited warranty
-
Features
- Low 12V dc lift-off voltage
- Immune to intermittent power loss
- Unique PTFE seal design eliminates the need for o-rings
- Model tailored to SIS requirements, certified to IEC 61508 SIL 2
- Solid measurement with unique solids algorithm
- Signal Quality Metrics: Proactively alerts the operator ahead of potential issues such as antenna coating / build-up, enabled preventative maintenance to be scheduled
- Smart Meter Verification: Built-in automatic diagnostic tool ensures transmitter health and integrity without interrupting the process. Provides a simple pass/fail report helping identify and resolve potential issues. May be run on a user-configurable schedule or on demand.
- Smart Proof test package: Quick and easy periodic proof-testing with built-in wizards, offering step-by-step guidance, dynamic visualizations, and ability to save or print detailed reports.
- Process seal antenna for applications with heavy condensation and aggressive medias. Also available with Tri Clamp connection.
- 3-A certified for hygienic applications
-
Product Description

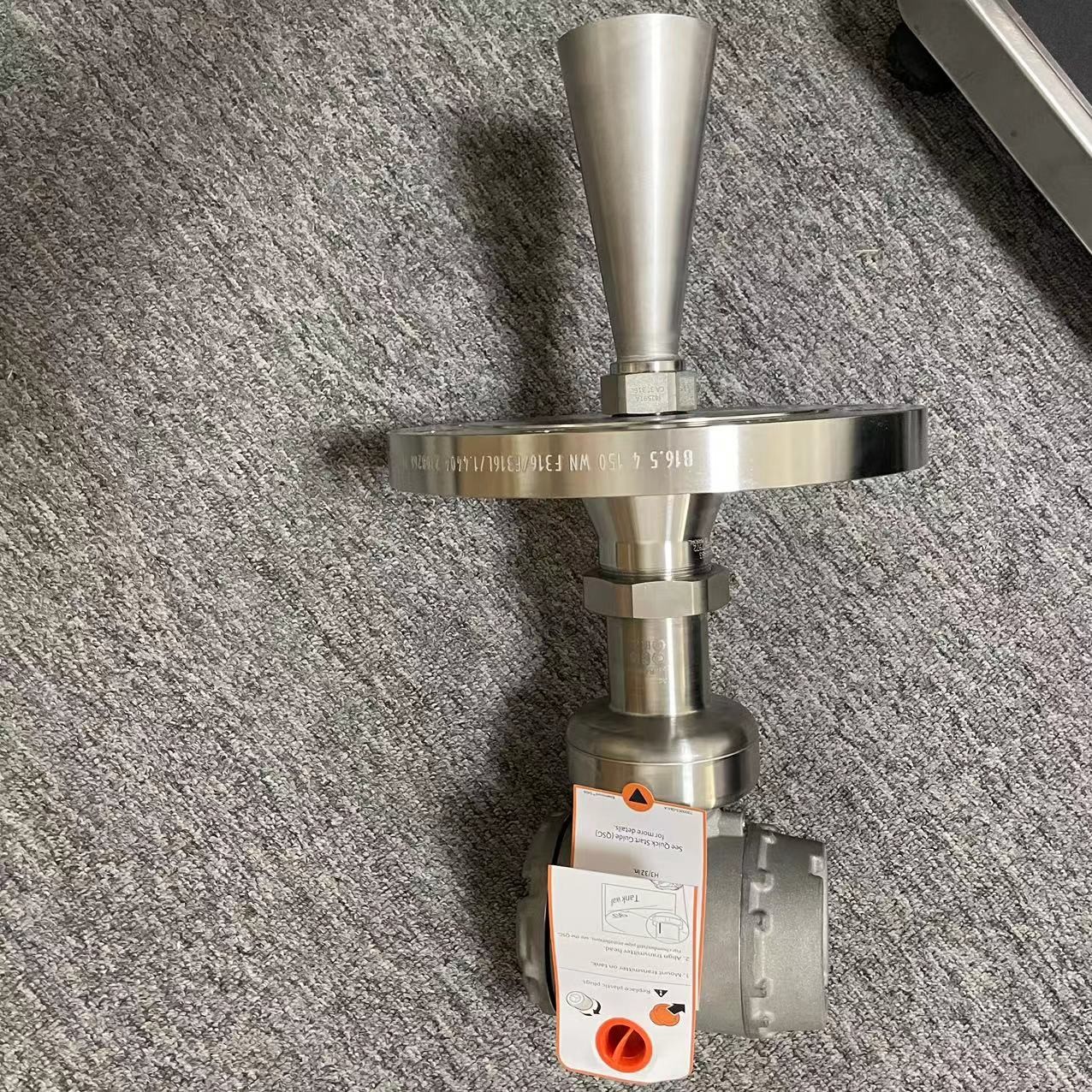

The Rosemount™ 5408 Non-Contacting Radar Level Transmitter uses enhanced technology and Human Centered Design to deliver accurate, reliable measurements on both liquid and solid materials. Using two-wire FMCW technology the Rosemount 5408 deploys a continuous echo to maximize radar signal strength and produce a more robust and reliable measurement. Delivering ease-of-use at every touch point, the Rosemount 5408 uses an intuitive software interface to guide the operator through installation, commissioning, proof-testing and maintenance. Powerful onboard diagnostics suite proactively monitors transmitter health and alerts if there is an issue. Safety certified to IEC 61508 for SIL 2 applications, the Rosemount 5408:SIS reduces cost of risk, increases efficiency and protects people and the environment.
