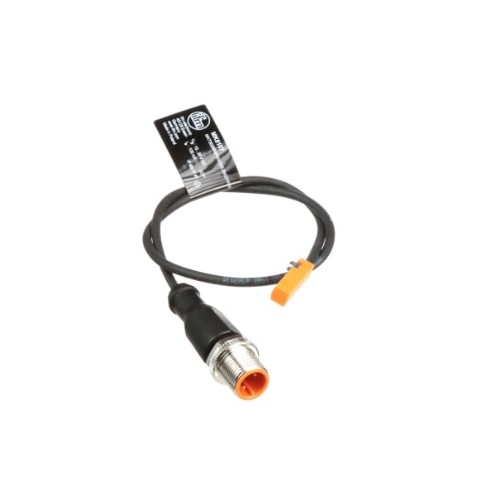

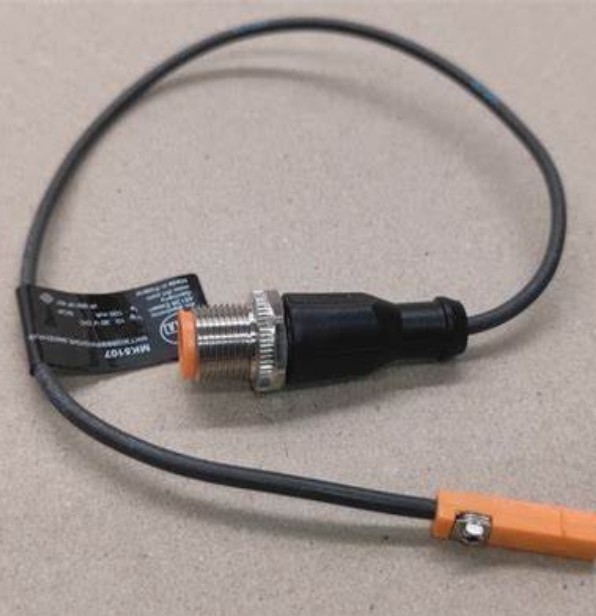

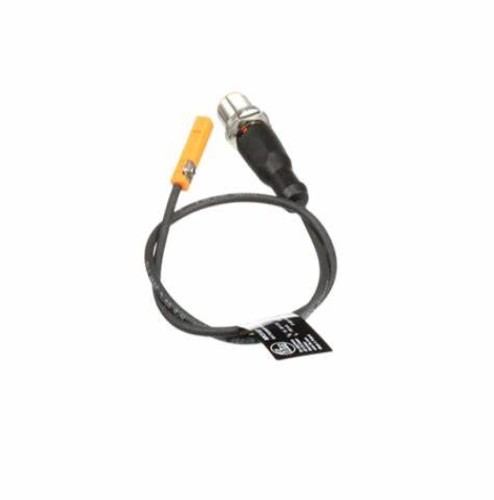

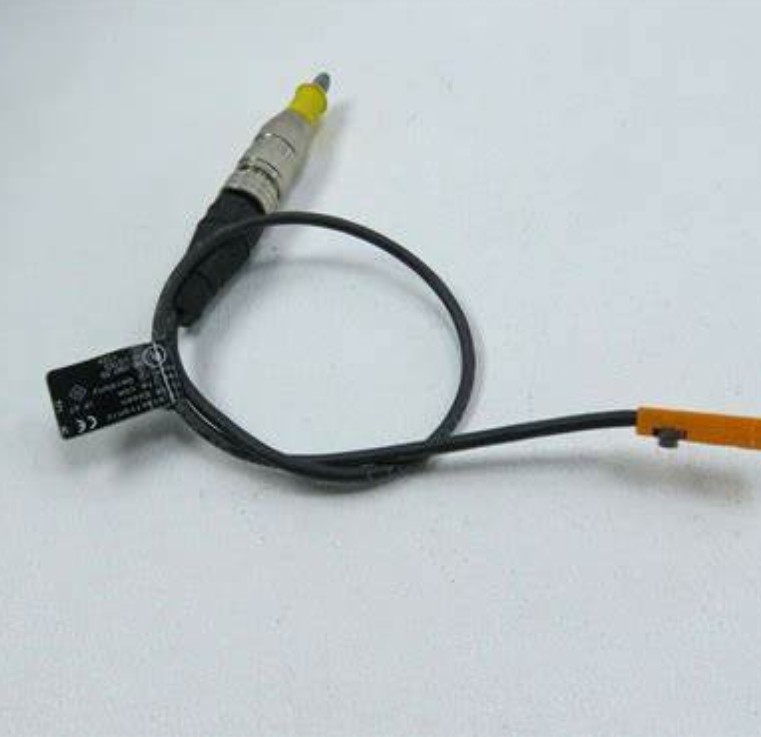

IFM T-slot Cylinder Sensor MK5107 MKT3028BBPKG/G/0,3M/ZH/US

  • IFM T-slot Cylinder Sensor MK5107 MKT3028BBPKG/G/0,3M/ZH/US
  • IFM T-slot Cylinder Sensor MK5107 MKT3028BBPKG/G/0,3M/ZH/US
  • IFM T-slot Cylinder Sensor MK5107 MKT3028BBPKG/G/0,3M/ZH/US
  • IFM T-slot Cylinder Sensor MK5107 MKT3028BBPKG/G/0,3M/ZH/US
Place of Origin china
Brand Name IFM
Model Number MK5107
Minimum Order Quantity 1
Price USD$50
Packaging Details carton
Delivery Time 6-8weeks
Payment Terms D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Protection Class < 10 Electrical Design PNP
Dimensions [mm] 25 X 5 X 6.5 Output Function Normally Open
Highlight

MK5107 Cylinder Sensor

,

IFM T-slot cylinder sensor
Leave a Message
Product Description
Product characteristics
Electrical design PNP
Output function normally open
Dimensions [mm] 25 x 5 x 6.5
Electrical data
Operating voltage [V] 10...30 DC; (cULus - Class 2 source required)
Current consumption [mA] < 10
Protection class III
Reverse polarity protection yes
Max. power-on delay time [ms] 30
Outputs
Electrical design PNP
Output function normally open
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 100
Switching frequency DC [Hz] 10000
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Monitoring range
Magnetic sensitivity [mT] 2.8
Travel speed [m/s] > 10
Accuracy / deviations
Hysteresis [mm] < 1.5
Repeatability [mm] < 0.2
Operating conditions
Ambient temperature [°C] -25...85
Protection IP 65; IP 67
Tests / approvals
EMC
EN 61000-4-2 ESD - CD / 8 kV AD
EN 61000-4-3 HF radiated 10 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-6 HF conducted 10 V
EN 55011 class B
MTTF [years] 3694
UL approval
Ta -25...75 °C
Enclosure type Type 1
voltage supply Limited Voltage/Current (Marking Class 2)
UL approval number C003
File number UL E174191
Mechanical data
Weight [g] 21.1
Mounting flush mountable
Type of mounting fastening clamp with combined slot / hexagon socket, width across flats 1.5
Cylinder type T-slot cylinders
Dimensions [mm] 25 x 5 x 6.5
Material housing: PA; Fastening clamp: stainless steel
Displays / operating elements
Display
Switching status 1 x LED, yellow
Accessories
Items supplied
rubber memory stop: 1
cable clip: 1
Remarks
Pack quantity 1 pcs.
Electrical connection - plug
Connection Cable: 0.3 m, PUR
Connection Connector: 1 x M12; coding: A; Locking: Knurled nut, rotatable
