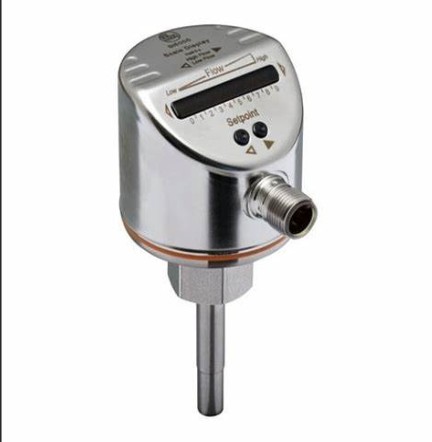

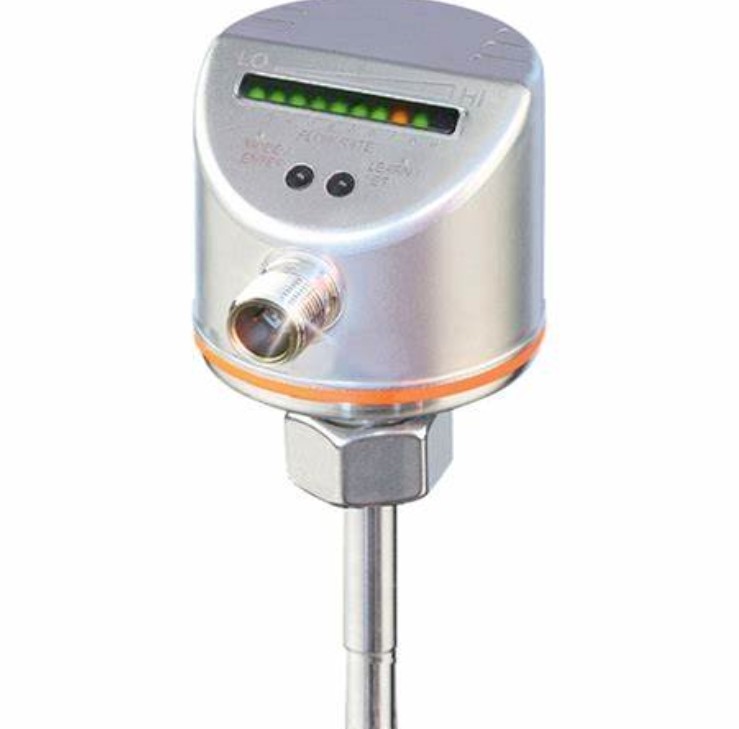

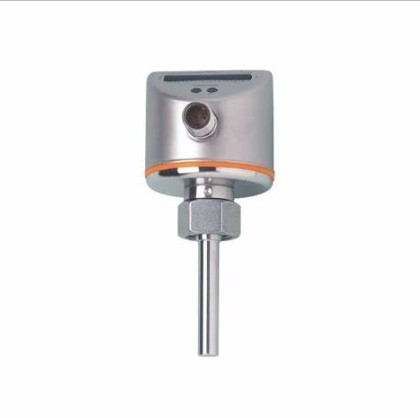

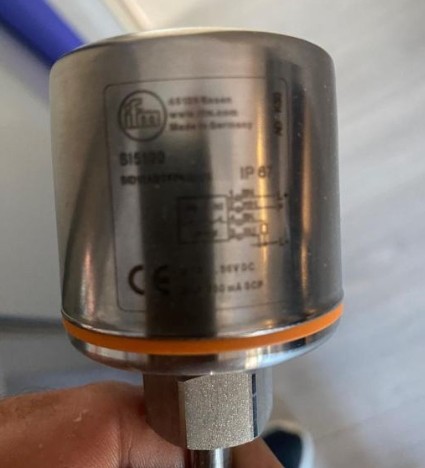

IFM Flow Monitor SI5100 SID10ADTFPKG/US-100 with Pressure Rating 100 bar

  • IFM Flow Monitor SI5100 SID10ADTFPKG/US-100 with Pressure Rating 100 bar
  • IFM Flow Monitor SI5100 SID10ADTFPKG/US-100 with Pressure Rating 100 bar
  • IFM Flow Monitor SI5100 SID10ADTFPKG/US-100 with Pressure Rating 100 bar
  • IFM Flow Monitor SI5100 SID10ADTFPKG/US-100 with Pressure Rating 100 bar
Place of Origin china
Brand Name IFM
Certification CE
Model Number SI5100
Minimum Order Quantity 1
Price USD$520
Packaging Details carton
Delivery Time 6-8weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Pressure Rating [bar] 100 Medium Temperature [°C] -25...80
Protection Class III
Highlight

IFM Flow monitor

,

IFM SI5100 Flow monitor

,

SID10ADTFPKG/US-100 Flow monitor
Leave a Message
Product Description
Product characteristics
Number of inputs and outputs Number of digital outputs: 1
Process connection M18 x 1,5 Internal thread
Application
Media Liquids; Gases; aggressive media
Medium temperature [°C] -25...80
Pressure rating [bar] 100
Liquids
Medium temperature [°C] -25...80
Gases
Medium temperature [°C] -25...80
Electrical data
Operating voltage [V] 19...36 DC
Current consumption [mA] < 60
Protection class III
Reverse polarity protection yes
Power-on delay time [s] 10
Inputs / outputs
Number of inputs and outputs Number of digital outputs: 1
Outputs
Total number of outputs 1
Output signal switching signal
Electrical design PNP
Number of digital outputs 1
Output function normally open / closed; (configurable)
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 250
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Measuring/setting range
Probe length L [mm] 45
Liquids
Setting range [cm/s] 3...300
Greatest sensitivity [cm/s] 3...100
Gases
Setting range [cm/s] 200...3000
Greatest sensitivity [cm/s] 200...800
Accuracy / deviations
Repeatability [cm/s] 1...5
Note on repeatability
for water 5...100 cm/s; 25 °C
Factory setting
Temperature drift [cm/s x 1/K] 0.1; (for water 5...100 cm/s; 10...70 °C)
Max. temperature gradient of medium [K/min] 300
Switch point accuracy [cm/s] ± 2...± 10; (for water 5...100 cm/s; 25 °C; Factory setting)
Hysteresis [cm/s] 2...5; (for water 5...100 cm/s; 25 °C; Factory setting)
Reaction times
Liquids
Response time [s] 1...10
Gases
Response time [s] 1...10
Software / programming
Adjustment of the switch point pushbuttons
Operating conditions
Ambient temperature [°C] -25...80
Storage temperature [°C] -25...100
Protection IP 67
Tests / approvals
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated 10 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-6 HF conducted 10 V
Shock resistance
DIN IEC 68-2-27 50 g (11 ms)
Vibration resistance
DIN EN 60068-2-6 20 g (55...2000 Hz)
MTTF [years] 298
UL approval
UL approval number I02X
Mechanical data
Weight [g] 221.85
Dimensions [mm] M18 x 1.5
Thread designation M18 x 1.5
Material stainless steel (1.4404 / 316L); stainless steel (1.4310 / 301); PC; PBT-GF20; EPDM/X
Materials (wetted parts) titanium (3.7035); O-ring: FKM 80 Shore A
Process connection M18 x 1,5 Internal thread
Displays / operating elements
Display
Function 10 x LED, three-color
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12; coding: A
