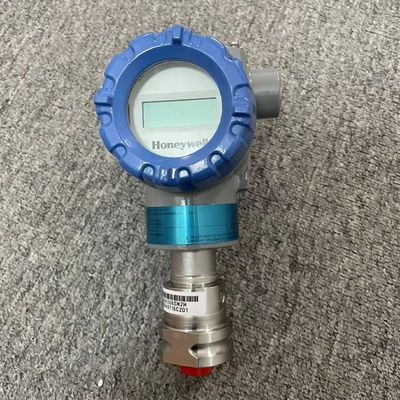

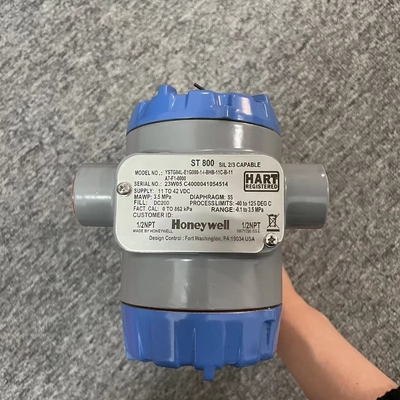

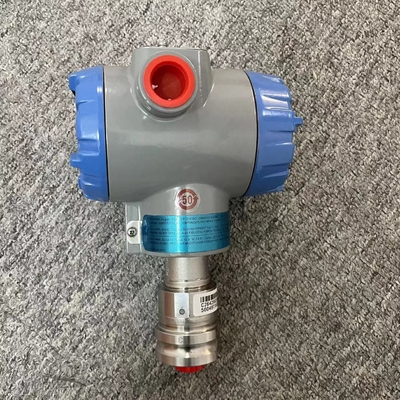

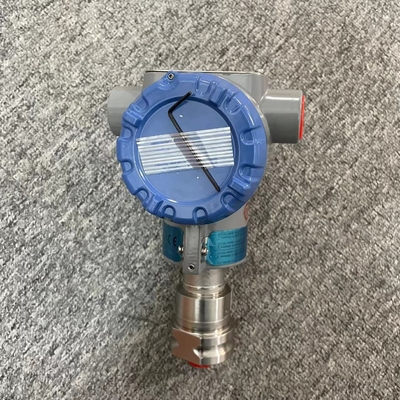

Honeywell YSTG84L-E1G000-1-I-BHB-11C-B-11A7-F1-0000 Pressure Transmitter Hart

Pressure Transmitter

Pressure transmitter Honeywell the STG800 is a high performance pressure transmitter that uses advanced sensor technology to combine pressure with static pressure and temperature compensation on the sensor chip to provide extremely high measurement accuracy and stability over a wide range of static pressure and temperature Sex.
Best-in-class features:
● Accuracy of calibration range up to 0.055%
● Annual stability of up to 0.01% / full scale
● Automatic hydrostatic and temperature compensation
● Up to 100: 1 range ratio
● Response time up to 80ms
● a variety of local display function
● External zero, range and configuration functions
● The power supply polarity is connected arbitrarily
● perfect self-diagnosis function
● Integrated dual density based on ANSI / NFPA 70-202 and ANSI / ISA 12.27.0
Seal design ensures maximum safety
● The standard is fully compliant with SIL2 / 3.
Full module design
● Up to 15 years warranty is available

Introduction Part of the SmartLine® family of products, the STG700 and STG70L are suitable for monitoring, control and data acquisition featuring piezoresistive sensor technology combining pressure sensing with on chip temperature compensation capabilities providing high accuracy, stability and performance over a wide range of application pressures and temperatures. The SmartLine family is also fully tested and compliant with Experion® PKS providing the highest level of compatibility assurance and integration capabilities. SmartLine easily meets the most demanding application needs for pressure measurement applications. Best in Class Features: • Accuracies up to 0.055% of span standard & 0.04% of span optional. • Stability up to 0.02% of URL per year for 10 years. • Automatic temperature compensation. • Rangeability up to 100:1. • Response times as fast as 100ms. • Multiple local display capabilities. • External zero, span, & configuration capability. • Polarity insensitive electrical connections. • Comprehensive on-board diagnostic capabilities. • Integral Dual Seal design for safety based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0. • Full compliance to SIL 2/3 requirements as a standard. • Modular design characteristics. • Available additional with 4-year warranty. Span & Range Limits: Model URL psi (bar) LRL psi (bar) Min Span psi (bar) STG730/STG73L 50 (3.5) -14.7 (-1.0) 0.5 (0.035) STG740/STG74L 500 (35) -14.7 (-1.0) 5 (.35) STG770/STG77L 3000 (210) -14.7 (-1.0) 30 (2.1) STG78L 6000 (420) -14.7 (-1.0) 60 (2.06) STG79L 10000 (690) -14.7 (-1.0) 100 (6.9) Figure 1 – STG700 Gauge Pressure Transmitters feature field-proven piezoresistive sensor technology Communications/Output Options: • Honeywell Digitally Enhanced (DE) • HART ® (version 7.0) All transmitters are available with the above li
