Yokogawa SNB10D Safety Node Unit SNB10D-225/CU2T With Good Price
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Type | Safety Node Unit | Model Number | SNB10D-225/CU2T |
---|---|---|---|
Frequency Range | 50/60HZ | Voltage | 220-240VAC |
Highlight | Yokogawa Safety Node Unit,Safety Node Unit 60HZ |
Suffix Codes 1 : 4 | Dual-redundant power supply | |
---|---|---|
Suffix Codes 2 : 1 | 100 - 120 V AC power supply | |
Suffix Codes 3 : 5 | Basic type with no explosion protection | |
Option Codes : /CU2N | Connector Unit for ESB Bus | |
Mounting | 19-inch Rack Mounting. Rack mount | |
Weight | 10kg | |

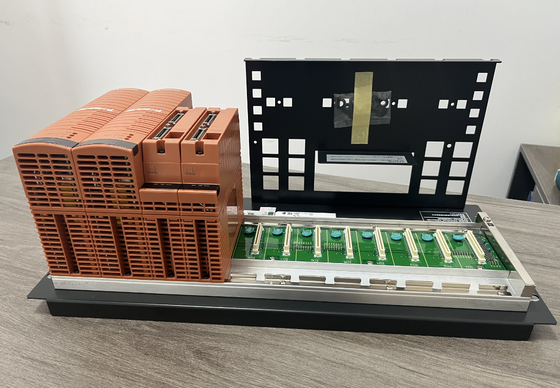

Yokogawa SNB10D Safety Node Unit SNB10D-225/CU2T
Number of Connectable Safety Node Units
Up to 13 safety node units can be connected to S2SC70S/S2SC70D/SSC60S/SSC60D safety control unit using SEC402 ESB bus coupler module.
Up to 9 safety node units can be connected to safety control unit using SEC401 ESB bus coupler module.
Power Supply Voltage
The power supply voltage is specified in the suffix codes.
Voltage: 100 to 120 V AC and 50/60 Hz frequency
Voltage: 220 to 240 V AC and 50/60 Hz frequency Voltage: 24 V DC
Power Consumption
100 to 120 V AC
specification: 200 VA 220 to 240 V AC
specification: 230 VA 24 V DC specification: 5.5 A
