3.5MPa STD730 Differential Pressure Transmitter STD730L1AS4AS1CCHC11CB30A6F1

  • 3.5MPa STD730 Differential Pressure Transmitter STD730L1AS4AS1CCHC11CB30A6F1
  • 3.5MPa STD730 Differential Pressure Transmitter STD730L1AS4AS1CCHC11CB30A6F1
  • 3.5MPa STD730 Differential Pressure Transmitter STD730L1AS4AS1CCHC11CB30A6F1
  • 3.5MPa STD730 Differential Pressure Transmitter STD730L1AS4AS1CCHC11CB30A6F1
Place of Origin China
Brand Name Honeywell
Certification CCC.CE
Model Number STD730L1AS4AS1CCHC11CB30A6F1
Minimum Order Quantity 1
Price usd600 piece/pieces
Packaging Details carton
Delivery Time 5-8 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Differential Pressure Transmitter Supply 11 To 42VDC
Mawp 3.5 MPa Diaphragm SS
High Light

3.5MPa Differential Pressure Transmitter

,

SS Diaphragm Differential Pressure Transmitter

,

Overpressure Protection Precision Pressure Transmitter
You can tick the products you need and communicate with us in the message board.
Process Limits -40~125
Fact Cal 0 to 862 KPa
Range -0.1 to 3.5 MPa
Warranty 1 Years
Leave a Message
Process Limits -40~125
Product Description

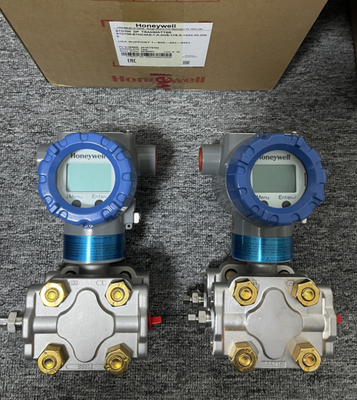

Honeywell Smartline STD730 Differential Pressure Transmitter



SmartLine®​ ST700 Differential Pressure Transmitters bring smart technology to a wide spectrum of measurement applications ranging from furnace combustion airflow rate to hydrostatic tank gauging.



STD720/ STD725 -400 to 400 in H2O -1000 to 1000 mbar
STD730/ STD735 -100 to 100 psi -7.0 to 7.0 bar
STD770/ STD775 -3000 to 3000 psi -210 to 210 bar



  • Accuracies up to 0.05% of span standard & 0.04% of span optional
  • Stability up to 0.02% of URL per year for 10 years
  • Automatic static pressure & temperature compensation
  • Rangeability up to 100:1
  • Response times as fast as 100ms
  • Alphanumeric display capabilities
  • External zero, span, & configuration capability
  • Polarity insensitive electrical connections
  • Comprehensive on-board diagnostic capabilities
  • Integral Dual Seal design for highest safety based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
  • World class overpressure protection
  • Full compliance to SIL 2/3 requirements.



3.5MPa STD730 Differential Pressure Transmitter STD730L1AS4AS1CCHC11CB30A6F1 0

3.5MPa STD730 Differential Pressure Transmitter STD730L1AS4AS1CCHC11CB30A6F1 1
