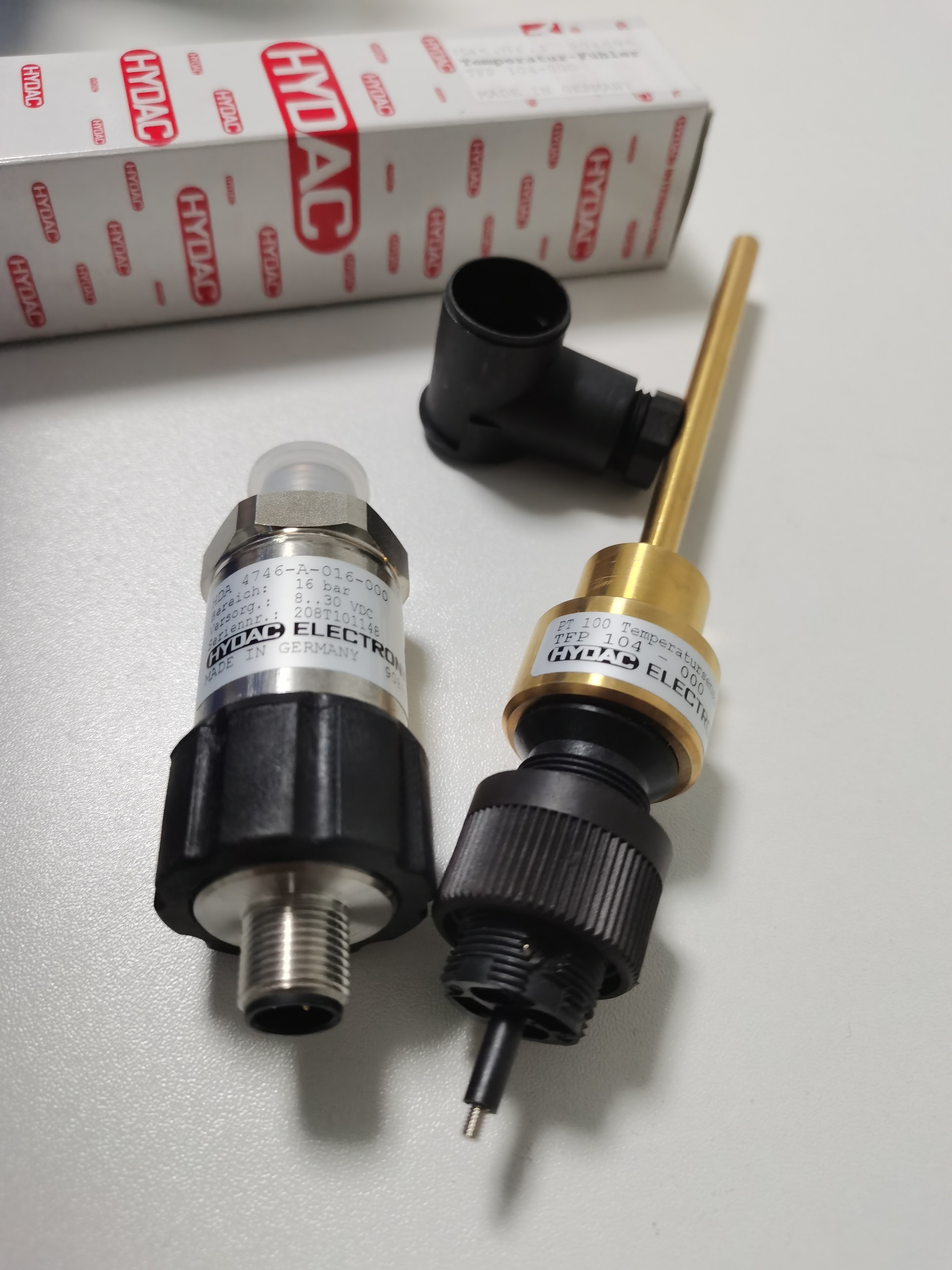

Hydac TFP Temperature Transmitter Sensor 104-000 904696

  • Hydac TFP Temperature Transmitter Sensor 104-000 904696
  • Hydac TFP Temperature Transmitter Sensor 104-000 904696
  • Hydac TFP Temperature Transmitter Sensor 104-000 904696
  • Hydac TFP Temperature Transmitter Sensor 104-000 904696
  • Hydac TFP Temperature Transmitter Sensor 104-000 904696
Place of Origin Germany
Brand Name Hydac
Certification CE
Model Number TFP 104-000
Minimum Order Quantity 1
Price USD$50/PC
Packaging Details Carton
Delivery Time 5-8 work days
Payment Terms D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Temperature Probe Weight 0.287 Lb
Temperature -40 ºC To 125 ºC Sensor Length 95.5 Mm
Sensor Diameter 6 Mm Current Consumption 0.3 To 1.0 MA
Wetted Material Brass Measuring Element PT 100
High Light

104-000 Temperature Sensor

,

TFP Temperature Transmitter Sensor

,

PT100 Temperature Probe Sensor
Leave a Message
Product Description

Hydac TFP 104-000 904696 Temperature Sensor









Description:

The TFP 100 temperature probe was developed primarily for tank installation. The PT 100 precision resistor in 4-conductor design can be connected directly to HYDAC temperature switches ETS 3800, ETS 380 and ETS 1700.

The standardized electrical connection also means that other evaluation or control systems (e.g. PLC) can easily be connected.

For adaptation to different applications and fluids, a nickel-plated brass installation sleeve which is pressure-resistant up to 10 bar is available as an accessory.





Special features:

 Measurement circuit configured as four-conductor circuit

 Simple to install

 For universal application





Technical data:

Temperature probe                     TFP 100

Temperature range                      -40 .. +257 °F (-40 .. +125 °C)

Electrical connection                   Male Binder series 714 M18, 4 pole

                                                    Male M12x1, 4 pole

Parts in contact with medium      Brass

Sensor current                             0.3 .. 1.0 mA

Tank installation sleeve for TFP 100 (Accessory, not supplied)

Pressure resistance                    145 psi

Parts in contact with medium      CuZn39Pb3 (brass), nickel-plated





Hydac TFP Temperature Transmitter Sensor 104-000 904696 0

Hydac TFP Temperature Transmitter Sensor 104-000 904696 1

Hydac TFP Temperature Transmitter Sensor 104-000 904696 2Hydac TFP Temperature Transmitter Sensor 104-000 904696 3
