Leuze HT3CL1/2N-M8 Diffuse Sensor With Background Suppression HT46C HT3CL1/4P

Place of Origin Germany
Brand Name Leuze
Certification CE
Model Number HT3CL12N-M8
Minimum Order Quantity 1
Price USD$150/PC
Packaging Details Carton
Delivery Time 5-8 work days
Payment Terms D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Photoelectric Sensor Theory Diffuse Reflection Principle With Background Suppression
Output NPN Description Diffuse Sensor
Light Source Laser, Red Supply Voltage 10 ... 30 V
Switching Frequency 3,000 Hz Open-circuit Current 0 ... 20 MA
Ambient Temperature Ambient Temperature Type Of Display LED
Connection Type Male Net Weight 10 G
High Light

Leuze HT3CL1/2N-M8 Diffuse Sensor

,

HT46C Diffuse Sensor

,

HT3CL1/4P Diffuse Sensor

Leave a Message
Product Description

Leuze Electronic HRT 96 Diffuse Reflection Light Scanner With Background Suppression Leuze Sensor HRT 96M/A-1670-800-44















Diffuse sensor with background suppression, Supply voltage: 10-30 V DC, Operating range, white 90%: 0.015-0.4 m, m8 connector, Operational controls: multiturn potentiometer, IP 67, IP 69K protection

Series: 3C
Operating principle: Scanning principle with background suppression
Black-white error: < 10% up to 170 mm
Operating range, white 90%: 0.015 - 0.4 m
Operating range, gray 18%: 0.015 - 0.25 m
Operating range, black 6%: 0.015 - 0.17 m
Operating range limit: 0.015 - 0.4 m
Adjustment range: 20 - 400 mm
Light source: Laser, Red
Laser class 1, IEC/EN 60825-1:2007
Light-spot size [at sensor distance] 1 mm [400 mm]
Shift angle Typ. /- 2 degrees
Protective circuit: Short circuit protected, Polarity reversal protection, Overvoltage protection
Supply voltage: 10 - 30 V, DC, Incl. residual ripple
Residual ripple: 0 - 10 %, From U B
Open-circuit current: 0 - 20 mA
Number of digital switching outputs: 2
Switching output 1
Assignment: Connection 1, pin 4
Switching element: Transistor, NPN
Switching principle: Light switching
Switching output 2
Assignment: Connection 1, pin 2
Switching element: Transistor, NPN
Switching principle: Dark switching
Switching frequency: 3,000 Hz
Response time: 0.16 ms
Type of connection: Connector
Thread size: M8
Material: Metal
No. of pins: 4 -pin
Design: Cubic
Dimension (W x H x L): 11.4 mm x 34.2 mm x 18.3 mm
Housing Material: Plastic, PC-ABS
Lens cover Material: Plastic / PMMA
Type of fastening: Through-hole mounting, Via optional mounting device
Operational controls: Multiturn potentiometer
Ambient temperature, operation: -40 - 55 degrees Celcius
Degree of protection: IP 67, IP 69K

The versatile range of models in the 3 series enables use in a variety of applications, such as in packaging technology, handling technology and productronics. In their performance class, these sensors offer the greatest range of features of all competitors and impress with large ranges and improved function reserves. Refined technologies for spurious and extraneous light suppression and for fast alignment and commissioning round out the advantages.

Series Advantages:
Indicator LEDs with all-round visibility
Degree of protection IP 67 and IP 69K
Integrated metal attachment sleeves
Extensive teach functions
Protection against manipulation by means of a lockable button
Maximum function reserve
High extraneous light protection through A^2 LS
M8 metal connector


Specification

item
value
Model Number
HT3CL1/2N-M8
Type
Photoelectric Sensor
Place of Origin
Germany
Brand Name
Leuze
Theory
Diffuse reflection principle with background suppression
Output
NPN
Description
Diffuse Sensor
Light source
Laser, Red
Light spot size [at sensor distance]
1 mm [400 mm]
Supply voltage
10 ... 30 V
Open-circuit current
0 ... 20 mA
Switching frequency
3,000 Hz
Ambient temperature
-40 ... 55 °C
Connection Type
Male
Type of display
LED
Dimension (W x H x L)
11.4 mm x 34.2 mm x 18.3 mm
Net weight
10 g

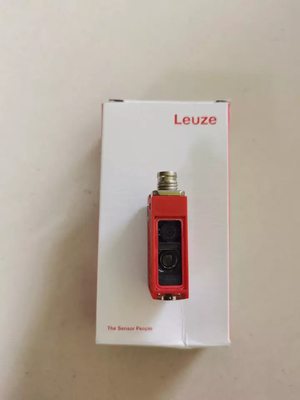

Leuze HT3CL1/2N-M8 Diffuse Sensor With Background Suppression HT46C HT3CL1/4P 0
Leuze HT3CL1/2N-M8 Diffuse Sensor With Background Suppression HT46C HT3CL1/4P 1
