DANFOSS REFRIGERATION RT5A Pressure And Temperature Switch 017-504666

Place of Origin Poland
Brand Name Danfoss
Certification CE
Model Number 017-504666
Minimum Order Quantity 1
Price USD$120/PC
Packaging Details Carton
Delivery Time 5-8 work days
Payment Terms D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Gross Weight 0.3 Kg Net Weight 0.25 Kg
Ambient Temperature Range -40 °C To 85 °C (-40 °F To180 °F) Burst Pressure [bar 0
Contact Function SPDT Contact Rating AC15=0.5 A, 250 V DC13=12 W, 125 V
Electrical Connection DIN-plug Enclosure Rating IP IP65
Max. Working Pressure 15 Bar / 220 Psig Pressure Connection Notes With Flange
Pressure Connection Size 1/4 Pressure Connection Type G
Pressure Male/Female Female
High Light

RT5A Pressure And Temperature Switch


017-504666 Pressure And Temperature Switch



Leave a Message
Product Description

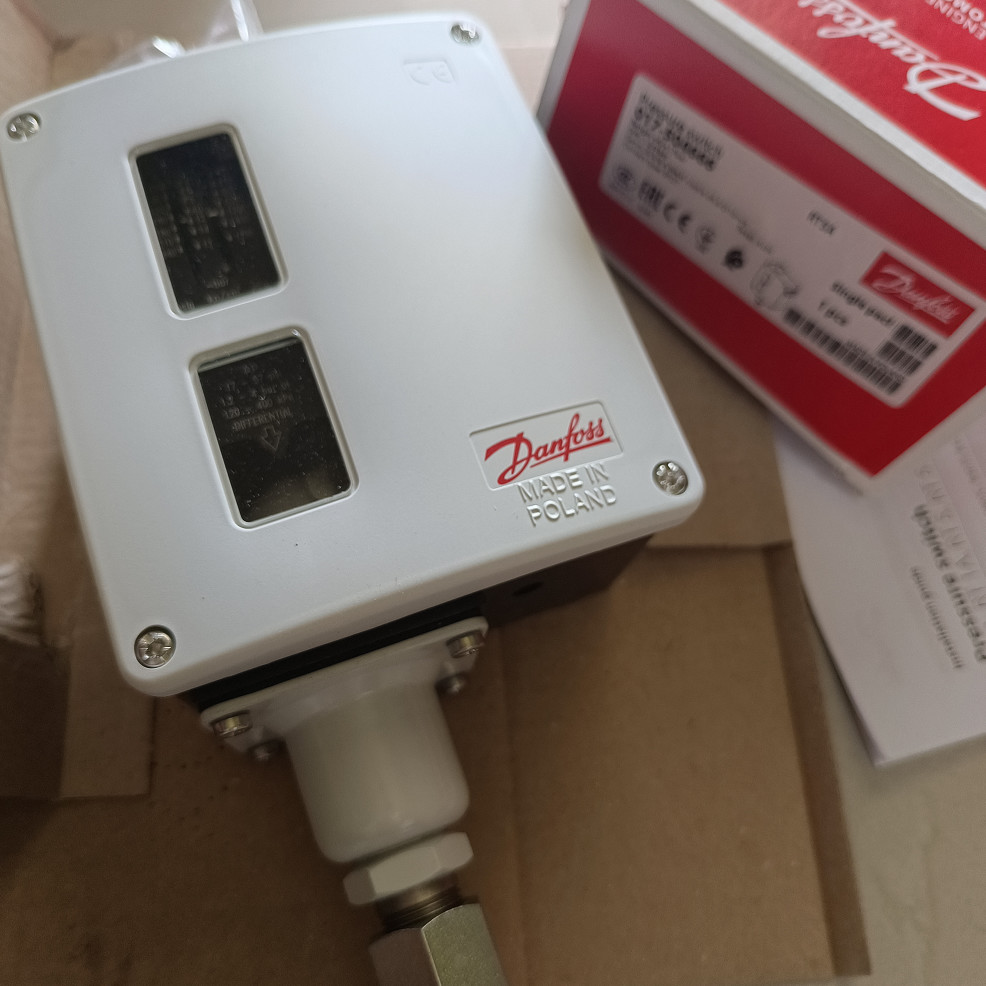

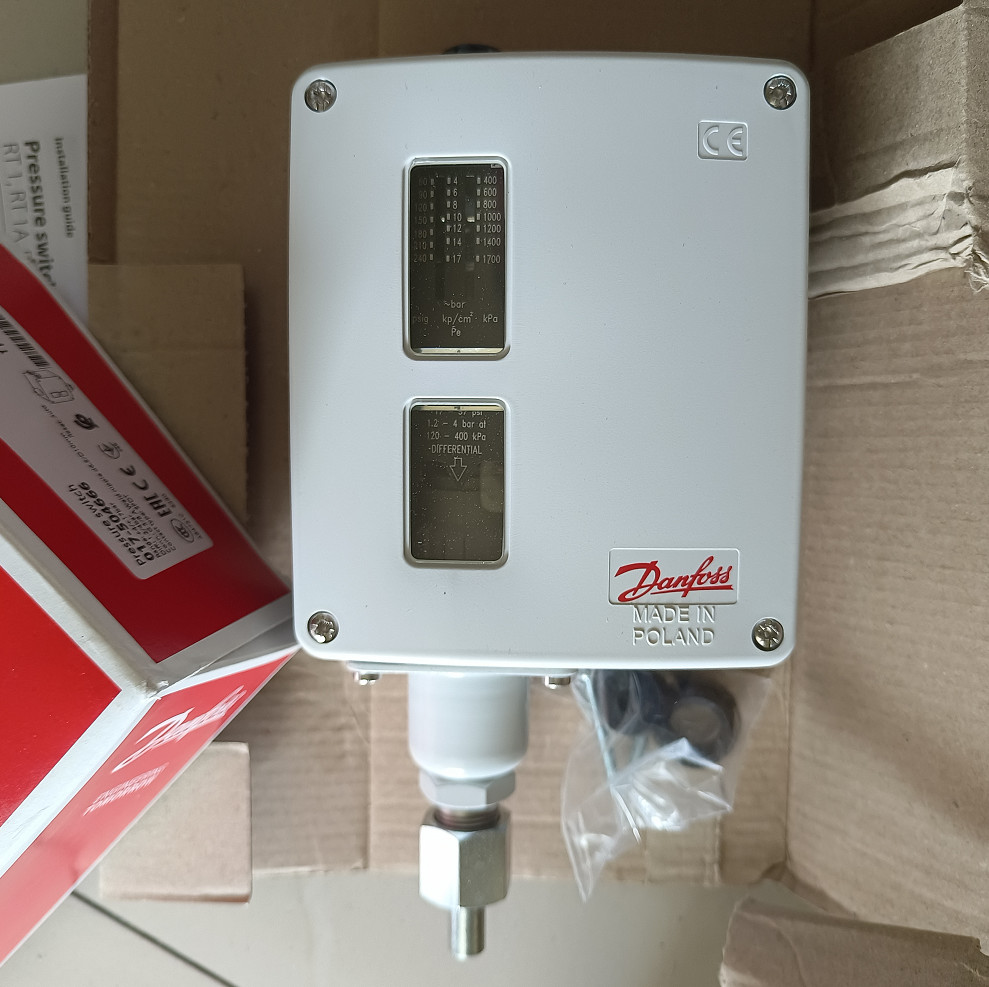

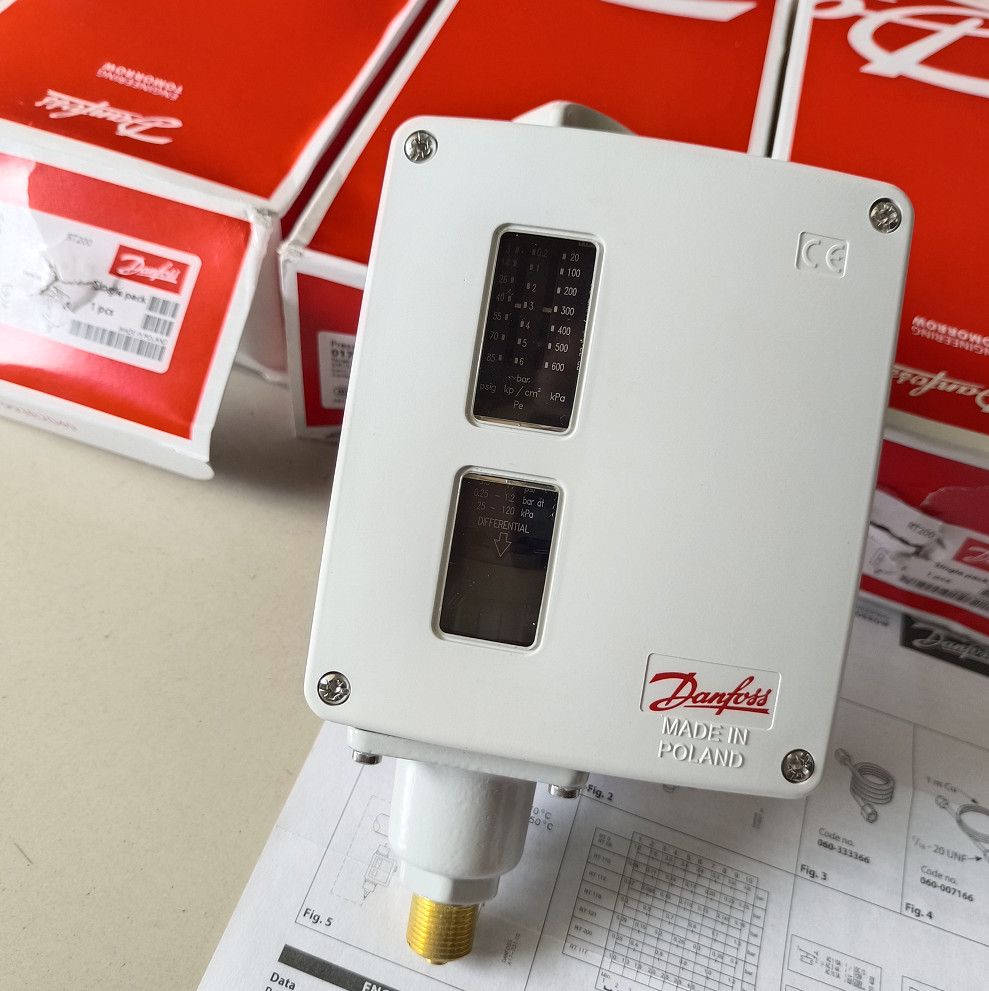

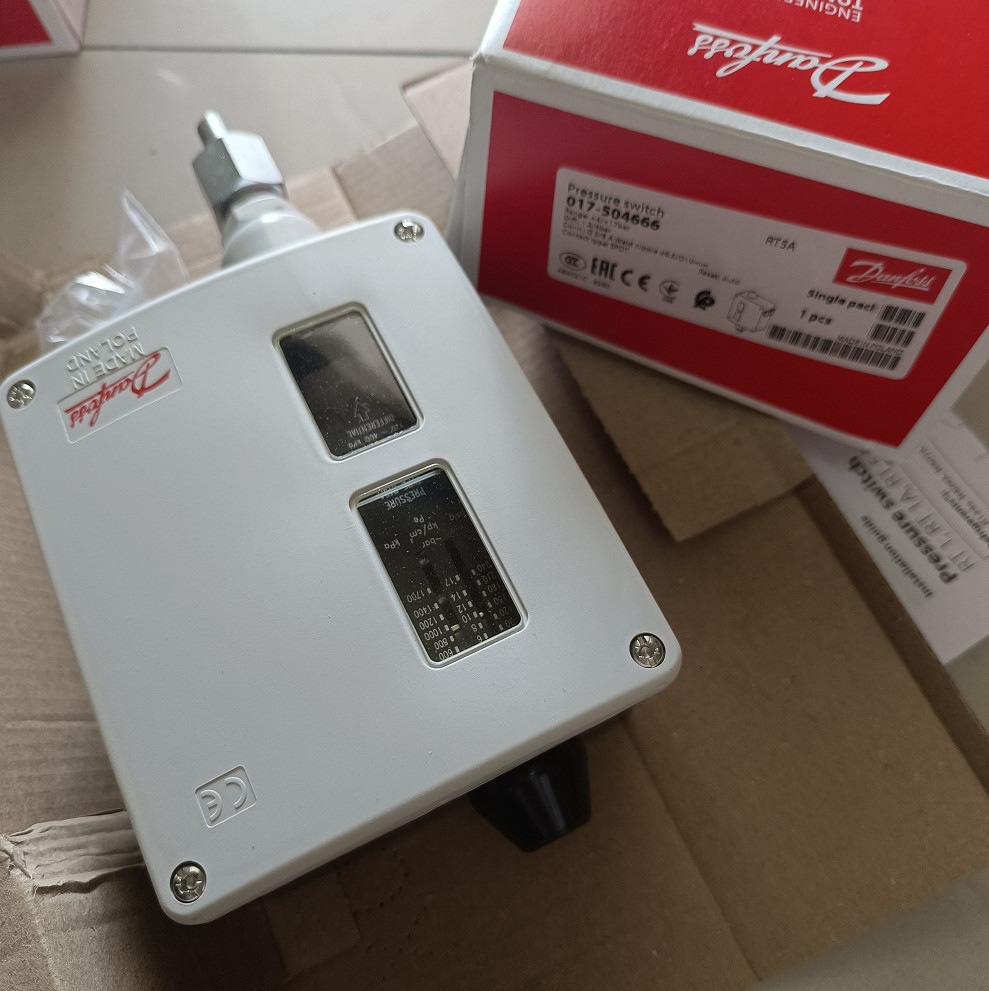

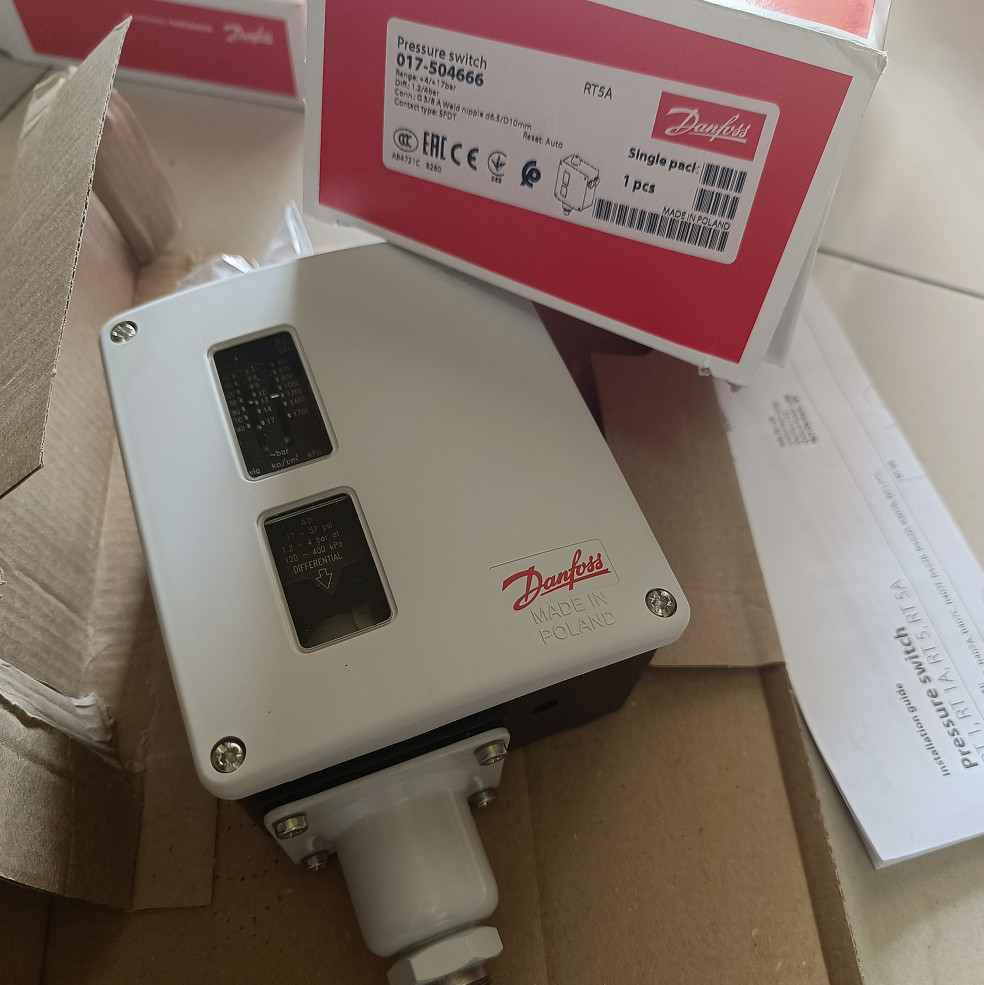

Danfoss RT5A 017-504666 DANFOSS REFRIGERATION RT5A Pressure Switch





Danfoss /danfoss Pressure and temperature switch 017-504666, RT-A Ammonia system pressure controller, low and high voltage design, wire connection: Pg 13.5. Wire diameter 6-14 mm Package: IP 66 conforms to IEC 529, except for version IP 54 with external reply Settings, ambient temperature: -50 - +70°C for pressure controller housing

DANFOSS REFRIGERATION RT5A Pressure And Temperature Switch 017-504666 0

RT/RT-A, pressure controller, industrial application, RT pressure controller with pressure operation single pole transfer switch, the action point is determined according to the pressure controller set value and the pressure at the interface. The RT series includes pressure controllers for industrial and Marine refrigeration applications. The pressure and temperature switch pressure and temperature controller product line can meet a variety of applications used in refrigeration and air conditioning systems. The pressure and temperature controllers are composed of two series, the standard KP and the RT for heavy duty applications. The controller can be provided for systems suitable for fluoride and ammonia as refrigerant.

DANFOSS REFRIGERATION RT5A Pressure And Temperature Switch 017-504666 1


Place of Origin
Brand Name
Model Number
MBC5100 061B100266
Max. Voltage
Max. Working Pressure
15 bar / 220 psig
Product name
Pressure Control Switch
Ambient temperature range
-40 °C to 85 °C (-40 °F to180 °F)
Contact function
Enclosure rating
Pressure connection size
Pressure Male/Female
Pressure sensing element
Contact load
0.5 A, 250 V
Net weight
0.25 kg


Danfoss/ Danfoss offers a wide range of industrial and commercial refrigeration and air conditioning solutions: Thermal expansion valve, solenoid valve, pressure, Temperature controller, electronic controller, electronic operating valve, solenoid valve coil, pressure and temperature switch, ICF multi-function valve, filter dryer and liquid mirror, Sight Glasses, globe valve, check valve, commercial refrigeration pipeline components, water flow control valve, refrigerant distributor, oil separator, filter, electronic control: Temperature sensor, pressure sensor, safety valve, level controller, electrical control, accessories, etc.


 DANFOSS REFRIGERATION RT5A Pressure And Temperature Switch 017-504666 2

DANFOSS REFRIGERATION RT5A Pressure And Temperature Switch 017-504666 3


Industrial automation, can also be used to according to the suction pressure measurement to control the evaporation temperature, products include: pressure transmitter, solenoid valve, solenoid valve coil, external control valve, self-excited type temperature control valve, electronic pressure switch, pressure switch, pressure switch, differential pressure switch, temperature switches, temperature sensors, contactor and motor starter, accessories and spare parts, etc.


Commercial compressor products include compressors for heating applications, compressors for freezing applications, condensing units, compressors for air conditioning applications, scroll compressors, centrifugal and piston compressors, condensing units and inverter solutions.
