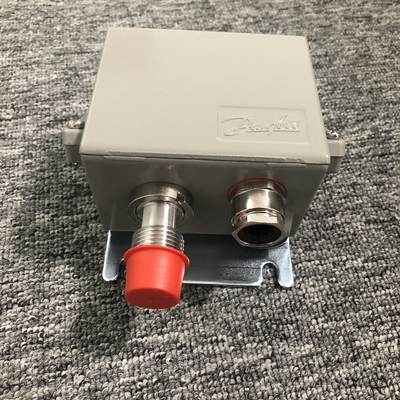

Original Danfoss Precision Pressure Transmitter EMP2 084G2109

The high accuracy pressure transmitter EMP 2 is designed for monitoring and control in marine and industial applications and offers a reliable pressure measurement, even under harsh environmental conditions.

The flexible pressure transmitter programme covers absolute or gauge (relative) versions with zero and span adjustment with a 4 – 20 mA output signal. It has all the necessary marine approvals.

Special versions with integrated pulse-snubber available, designed for use in hydraulic applications with severe medium influences like cavitation, liquid hammer or pressure peaks.

A robust construction enables the pressure transmitter to meet the strictest requirements.

• 4 - 20 mA output signal
• Operating temperature -10 to 70° C
• Measuring range 0 - 400 bar
• Pressure connections G ¼, G ½A standard, G 3/8 A mano
• With zero point and span adjustment
• Available with all relevant marine approvals
• For use in harsh industrial / marine environments

Danfoss (Danfoss) is a industrial companies in Denmark, is a professional valve supplier, in the field of refrigeration, heating, heating to provide complete solutions, can satisfy the requirements of the hot water, steam, lubricating oil system, provide electric control valve, self-reliance type control valve and hydraulic balance valves.

EMP 2 high precision pressure transmitter is suitable for monitoring requirements in Marine and industrial applications, even in extreme circumstances can provide reliable pressure measurement results.Pressure transmitter configuration is flexible, providing absolute or relative pressure (table) version of zero and full scale point can be adjusted, the output signal for 4-20 m.The transducer obtained all the necessary class certification.Can provide the special version of a built-in pulse buffer, suitable for medium affected (such as cavitation, liquid hammer or pressure peak) of hydraulic applications.* apply to 2 zone explosion hazard environment.

Performance (EN 60770)The temperature range of the transmitterNormal ATEX zone 2Transportation/storage medium temperaturemediumThe power supply voltage3Load resistanceZero adjustmentFull scale adjustmentZero and full range adjustment combinationNoise immunityNoise - the launch- 10-70 ℃ (see figure 1) - 10-85- 50-7040-100 - c (see figure 1).Water, fuel, oil, lubricating oil, refrigerant, chlorine, natural gas, and so on.The 32 v and minimum 12 DVD. C (terminal) between N and PA. the highest 410 Ω (24 VDC) 50% / 20%B. the highest 650 Ω (24 VDC) 50% / 0%Scope - 5-20%; The highest - 1-1.5 bar KP/cm)Range is + 5%; The highest t5 bar (KP/cm)Scope - 5-20Industrial equipment standard EN61000-6-2. This standard test content including: high frequency electric field, high frequency transmission lines, voltage transients, electrostatic interference resistance, the power supply voltage fluctuation, low frequency album and make transformer protection (in line with the German Lloyd's certification).Conform to the standard EN 61000-6-3precisionIn a vacuum (below zero bar)<0.06% 满量程/°标准0.06% 满量程/°C<吨0.1%满量程/10V3-30 Hz and 30-300 Hz acceleration amplitude of 1.13 mm 4 g, according to IEC 60068-2-6.Classification society requirements for up to 100 hz acceleration of 4 g.More specifications have to be arranged in advanceLiquid viscosity < 100 dt<4 毫秒Air and gas mixture,With pulse buffer:< 35岁女士500 g 1 ms, conform to the standard IEC 60068-2-27 ip67Outside 売 by sugar porcelain die-casting lattice (GD - AISI 12) G %, G % A standard, G3/8 A pressure gauge is about 1 kgPg 135, cable 5-14 mm in diameter<FS的<23%的<0.3%The temperature dependenceThe voltage dependenceZero thermal drift full range thermal driftSeismic stabilityThe response time constantThe impact the stabilityProtection gradePressure connection net weightWire packing medical.
