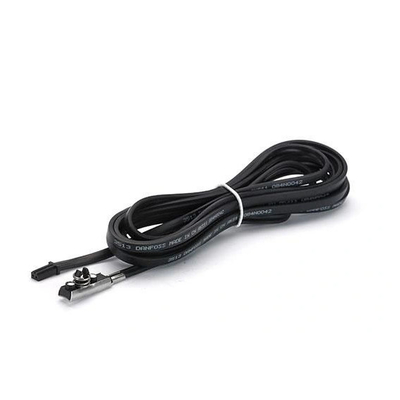

Danfoss Temperature Sensor Cable AKS 11 5.5m 084N0005 For PT100 Sensor
| Place of Origin | Denmark |
|---|---|
| Brand Name | Danfoss |
| Certification | CE |
| Model Number | 084N0005 |
| Minimum Order Quantity | 1 |
| Price | USD$120/PC |
| Packaging Details | Carton |
| Delivery Time | 5-8 work days |
| Payment Terms | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 500 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Nominal Resistance | 1000 Ohm At 0 °C | Enclosure | IP67 |
|---|---|---|---|
| Net Weight | 0.1 Kg | Product Family Name | AKS |
| Temperature Range | -40 - 100 °C | Cable Material | PVC, 2 X 0.22 Mm2 |
| Cable Length | 5.5m/216.54 In | Electrical Connection Size | 2 Wire |
| Type | AKS 11 | Condition | Original And New |
| High Light | Danfoss Temperature Sensor Cable,5.5m Temperature Sensor Cable,084N0005 Temperature Sensor Cable |
||
Product Description
Danfoss Temperature Sensor Cable AKS 11 5.5m 084N0005 Donfoss AKS 12 1.50 m 084N0035 Temperature Transducer For PT100 Sensor
Pt 1000 temperature sensor.
The sensor can be used for temperature logging on monitoring in conjunction with Danfoss controllers in the following areas:
• Refrigeration
• Air conditioning
• Heating The sensor comes adjusted and complies with the requirements to tolerance in EN 60751, class B.
Features
• Temperature range -40 – 100 °C
• The sensors are adjusted and comply with the requirements to tolerance in EN 60751, class B
Product details
| Gross weight | 0.12 kg |
| Net weight | 0.1 kg |
| EAN | 5702422019626 |
| Ambient temperature max. [°C] | 100 °C |
| Ambient temperature max. [°F] | 212 °F |
| Cable length [in] | 216.54 in |
| Cable length [m] | 5.5 m |
| Cable tempr. range [°C] [Max] | 100 °C |
| Cable tempr. range [°C] [Min] | -40 °C |
| Cable type | PVC |
| Electrical connection | Cable |
| Electrical connection size | 2 wire |
| Enclosure rating IP | IP67 |
| Measuring range [°C] [Max] | 100 °C |
| Measuring range [°C] [Min] | -40 °C |
| Measuring range [°F] [Max] | 212 °F |
| Measuring range [°F] [Min] | -40 °F |
| Packing format | Multi pack |
| Product family name | AKS |
| Product group | Sensors |
| Product name | Temperature sensor |
| Quantity per packing format | 60 pc |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element standard | EN 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Type | AKS 11 |
| Wires [pcs] | 2 pc |
