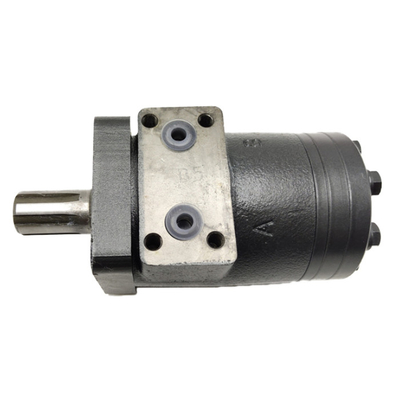

Omp 200 Hydraulic Motor Pump Double Needle Bearing

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xStructure | Hydraulic | Motor Type | Hydraulic Motor |
---|---|---|---|
Displacement (CCM)t | 50-400 | Mounting Flange (MM) | 82.5 |
Shaft (MM) | 25 | Port Size | G1/2 |
Drain Port | G1/4 | Shaft End Thread | M8 |
Mounting Holes | 2 | Oil Port Shape | S |
Parallel Key Width(MM) | 8 | Condition | Original And New |
Highlight | Double Needle Bearing Hydraulic Motor Pump,Omp 200 Hydraulic Motor Pump,25mm Hydraulic Motors |
DANFOSS OMP 200 HYDRAULIC MOTOR Sauer-Danfoss OMR OMH OMEW Hydraulic Pump
use: Due to its Small size, compact structure, high efficiency, and economical reliability,the OMP/BMP/B1 series orbital hydraulic motors are widely applied in agriculture machinery, drilling rig-mining automatic drill rod handling,water pump,robo rig, plastic industry, mining,fishing machinery, and construction machinery, especially fitted to lower load applications, such as plastic injection mold machine, cleaner, grass cutter,Winches,Conveyors,Slews,Sweeper Drives,Augers,Cutters,Mowers ,Chippers and Truck Mounted Pumps.
Product Information:
Product NO | Displacement
(CCM) |
Mounting Flange
(MM) |
Shaft
(MM) |
Port Size | Drain Port | Shaft end thread | Mounting holes | Oil Port shape | Parallel key width(MM) |
OMP/
BMP/ BM1 |
50-400 | 82.5 | 25 | G1/2 | G1/4 | M8 | 2 | S | 8 |
Our products have been exported to:
-All over India,Nepal,Bhutan,Africa,Malaysia,Singapore,Thailand
-Dubai,Abu Dhabi,Sharjah,Saudi Arabia
-Europe: UK, Austria, Netherlands, Germany, Sweden,Ireland
-North America: USA, Canada
-South America: Brazil, Argentina,Chile
-Russia, Australia, Turkey, Southeast Asia, Middle East, Korea
other countries in the world.
Characteristic Features
1.Double needle bearing can bear higher radial force,with more Concentricity that can help smooth running under the high speed condition;
2.High quality oil seal lead to longer service life;
3.Shaft seal can bear high pressure of back and the motor can be used in parallel or in series;
4.Special design in the driver-linker and prolong operating life;
5.Special design for distribution system can meet the requirement of low noise of unit;
6.Integration of efficiency and economy to environment-friendly;
7.Compact volume and easy installation;
Main Specification
HYDRAULIC MOTOR
TYPE |
OMP
BM1 |
OMP
BM1 |
OMP
BM1 |
OMP
BM1 |
OMP
BM1 |
OMP
BMP |
OMP
BM1 |
OMP
BM1 |
OMP
BM1 |
OMP
BM1 |
|
BMP | BMP | BMP | BMP | BMP | BMP | BMP | BMP | BMP | BMP | ||
Displacement(ml/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | |
Flow
(LPM) |
Continuous | 45 | 45 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
Intermittent | 50 | 50 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
Speed
(RPM) |
Continuous | 879 | 720 | 740 | 589 | 475 | 370 | 296 | 237 | 189 | 149 |
Intermittent | 975 | 755 | 827 | 673 | 594 | 463 | 370 | 297 | 236 | 185 | |
Pressure
(MPA) |
Continuous | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 | 11 | 11 | 11 | 10 |
Intermittent | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 14 | 12.5 | 10.5 | |
Torque
(N*.m) |
Continuous | 81 | 101 | 129 | 161 | 202 | 245 | 286 | 360 | 406 | 435 |
Intermittent | 108 | 134 | 171 | 213 | 268 | 342 | 390 | 456 | 505 | 533 | |
1. Continuous pressure:Max.value of operating motor continuously.
2.Intermittent pressure:Max.value of operating motor in 6 seconds per minute . 3.Peak pressure:Max.value of operating motor in 0.6 second per minute. 4.The optimum operating situation should be at the 1/3-2/3 of the continuous operating situation. |
Replace DANFOSS
151-0300 | 151-0313 | 151-0607 | 151-0631 | 151-5194 | 151-5217 |
151-0301 | 151-0314 | 151-0608 | 151-0632 | 151-5195 | 151-5218 |
151-0302 | 151-0315 | 151-0610 | 151-0633 | 151-5196 | 151-5219 |
151-0303 | 151-0316 | 151-0611 | 151-0634 | 151-5197 | 151-5221 |
151-0304 | 151-0317 | 151-0612 | 151-0635 | 151-5198 | 151-5222 |
Replace EATON/CHAR-LYNN
101-1001 | 101-1023 | 101-1045 | 101-1067 | 101-1089 | 101-1352 | 101-1758 |
101-1002 | 101-1024 | 101-1046 | 101-1068 | 101-1090 | 101-1449 | 101-1759 |
101-1003 | 101-1025 | 101-1047 | 101-1069 | 101-1091 | 101-1459 | 101-1762 |
101-1004 | 101-1026 | 101-1048 | 101-1070 | 101-1092 | 101-1463 | 101-1765 |
101-1005 | 101-1027 | 101-1049 | 101-1071 | 101-1093 | 101-1466 | 101-1766 |
Replace M+S HYDRAULIC
MP50 | MP80 | MP100 | MP125 | MP160 | MP200 | MP250 | MP315 | MP400 |
MLHP50 | MLHP80 | MLHP100 | MLHP25 | MLHP60 | MLHP200 | MLHP250 | MLHP315 | MLHP400 |
Replaceable Orbital Motors Cross Reference Table
HYDRAULIC |
DANFOSS |
M+S | EATON | ROSS | WHITE |
PARKER |
SAM | BOSCH |
MOTOR | HYDRAULIC | CHAR LYNN | TRW | CROSS | BREVINI | RECROTH | ||
BMM< |
