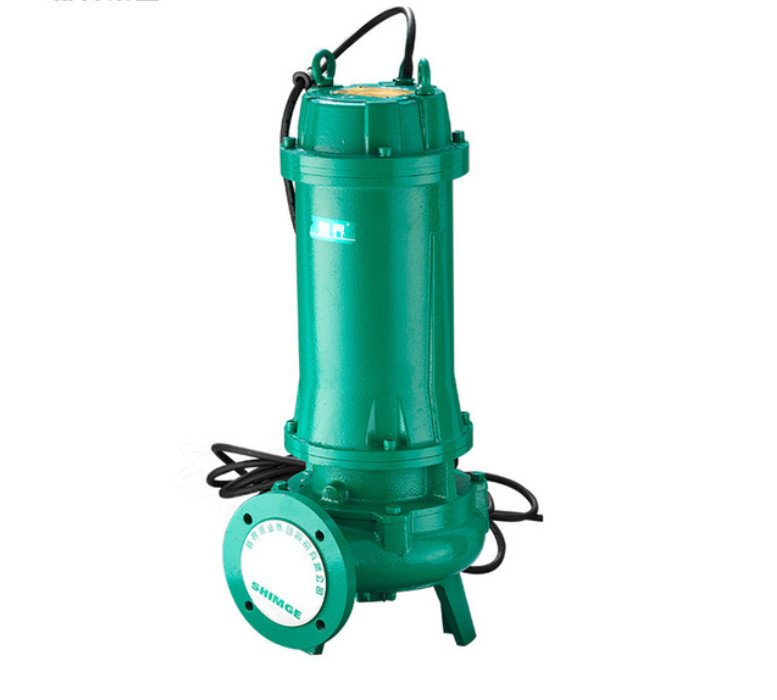

25mm garden submersible water pump For farm irrigation 220V 50Hz

  • 25mm garden submersible water pump For farm irrigation 220V 50Hz
  • 25mm garden submersible water pump For farm irrigation 220V 50Hz
  • 25mm garden submersible water pump For farm irrigation 220V 50Hz
Place of Origin CHINA
Brand Name MC
Certification CCC ISO
Model Number QDX
Minimum Order Quantity 10
Price $38- $78/pc
Packaging Details 100% original package
Delivery Time 10 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 500 Piece/Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Submersible Pump Maximum Head 17m32m25m
Maximum Flow Rate 1.5m3/h Pressure 220V/50Hz, High Pressure
Outlet Size 25cm-76cm Application Irrigation And Agriculture, Water
Size 25mm Product Name Submersible Water Pumps
High Light

25mm submersible water pump

,

submersible water pump 220V 50Hz

,

220V 50Hz submerged water pump
Leave a Message
Product Description

china best brands watering garden submersible diving water pumps used farm irrigation

Application

For water supply from wells or reservoirs.
For domestic use ,for civil and industrial applications.
For garden use and irrigation.
Working Conditions
Max.medium temperature:+40º C
Max.ambient temperature:+40º C
Max.working pressure: 5bar
Medium free from granules or anything that may damage the pump.
Power voltage: single-phase AC 220V,
Frequency: 50Hz
60Hz and three phases AC 380V, frequency 50Hz. 10 percent more or less voltage fluctuation from the rated value is allowed.

Key parts and materials
Pump body: Cast Aluminum or Cast Iron
Mechanical Seal: Ceramic-Graphite, Silicon
Stator sheet:DR510 or 470
Motor bracket: Cast Aluminum or Cast iron
Carbide-Carbide Alloy
Motor Shaft: CS45# or SS
Impeller: Cast Aluminum

Model
Q.rat (m3/h)
H.rat(m)
Power (Kw/Hp)
Speed
(r/min)
Voltage (V/Hz)
Current (A)
Size
(mm)
Head range
(m)
QDX1.5-12-0.25
1.5
12
0.25
2860
220/50
2.1
25
6-12
QDX1.5-17-0.37
1.5
17
0.37
2860
220/50
2.87
25
8-17
QDX1.5-25-0.55
1.5
25
0.55
2860
220/50
4.07
25
15-25
QDX3-18-0.55
3
18
0.55
2860
220/50
4.07
32
9-18
QDX10-12-0.55
10
12
0.55
2860
220/50
4.07
.38
4-12
QDX15-7-0.55
15
7
0.55
2860
220/50
4.07
51
0-7
QDX1.5-32-0.75
1.5
32
0.75
2860
220/50
5.24
25
20-32
QDX3-24-0.75
3
24
0.75
2860
220/50
5.24
32
15-24
QDX8-18-0.75
8
18
0.75
2860
220/50
5.24
38
10-18
QDX10-16-0.75
10
16
0.75
2860
220/50
5.24
51
8-16
QDX15-10-0.75
15
10
0.75
2860
220/50
5.24
64
2-10
QDX30-6-0.75
30
6
0.75
2860
220/50
5.24
76
0-6
QDX3-35-1.1
3
35
1.1
2860
220/50
6.2
25
25-35
QX3-35-1.1
3
35
1.1
2860
380/50
2.77
25
25-35
QDX6-26-1.1
6
26
1.1
2860
220/50
6.2
38
16-26
QX6-26-1.1
6
26
1.1
2860
380/50
2.77
38
16-26
QDX10-20-1.1
10
20
1.1
2860
220/50
6.2
51
10-20
QX10-20-1.1
10
20
1.1
2860
380/50
2.77
51
10-20
QDX15-15-1.1
15
15
1.1
2860
220/50
6.2
64
7-15
QX15-15-1.1
15
15
1.1
2860
380/50
2.77
64
7-15
QDX30-9-1.1
30
9
1.1
2860
220/50
6.2
76
2-9
QX30-9-1.1
30
9
1.1
2860
380/50
2.77
76
2-9
QDX3-38-1.5
3
38
1.5
2860
220/50
9.44
25
25-38
QX3-38-1.5
3
38
1.5
2860
380/50
3.58
25
25-38
QDX10-25-1.5
10
25
1.5
2860
220/50
9.44
51
20-25
