TTH300 ABB Head Mount Hart Temperature Sensor PA Fieldbus Communication

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xOutput | 4 To 20 MA | Storage Temperature | -50 To 85 °C |
---|---|---|---|
Electrical Connection | Electrical Connection Terminals (captive Screws) Incl. Soldering Tags | Input | Resistance RTD Pt-100, Thermocouples B,E, J, K, N, R,S, T, Voltages, MV Voltages |
Voltage | -125 To 125 MV; -125 To 1100 MV | Ambient Temperature | Standard: -40 To 85°C; Optional: -50 To 85°C |
Electrical Interface | 3.5 KV DC (approx. 2.5 KV AC) 60 S, Input To Output | Vibration Resistance | 10 To 2,000 Hz At 5g In Acc. With IEC 60068-2-6, During Operation And Transport |
Input Resistance | > 10 MΩ | Display | Standard Supply Without Display |
Warm-up Time | 5 Minutes | Power Supply | 11 To 42 VDC |
Housing | Polycarbonate | Communication | HART Protocol |
Calibration | Provided Alongwith And Valid For 1 Year, Traceable To National Standards. | Weight | 50 Grams |
High Light | Head Mount Hart Temperature Sensor,Hart Temperature Sensor ABB,Temperature Transmitter Sensor TTH300 |

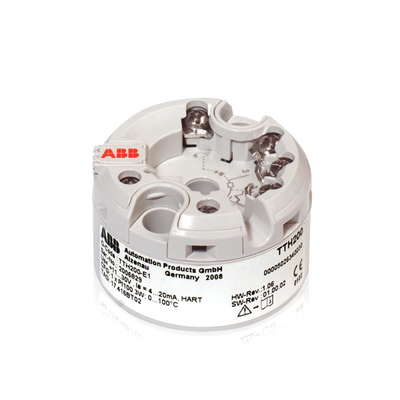

TTH200 TTH300 Original ABB Head-mount Temperature Transmitters With Hart, Profibus PA or Foundation Fieldbus Communication
ABB TTH200 Head Mounted Temperature Transmitter is designed for standard type B sensor heads. The temperature transmitter is provided for all HART standard applications in temperature measurement with a single sensor. The ABB TTH 200 temperature transmitter can support the functionality as same as ABB TTH 300 Temperature Transmitter but the difference is that without sensor drift and sensor redundancy monitoring that can be configured via any standard FTD tool via EDD or FDT / DTM in DAT200 (Asset Vision Basic). The TTH200 is provided for all HART standard applications in temperature measurement with one sensor input. The transmitter follows NAMUR Recommendations such as NE 89 and NE 107. The TTH200 supports the same functionality as the TTH300, but without sensor redundancy and sensor drift monitoring. As an option, an LCD indicator can be connected.
The transmitter can be configured with ABB-tools such as Field Information Manager (FIM), with DAT200 (Asset Vision Basic) via DTM, with a Handheld via EDD, or with any standard tool using FDI-/FDT-Technology.
Features Of head mounted temperature transmitter:
- HART Compatability
- ATEX, IECEx, Zone 0 Compliance
- The TTH200 meets all requirements for the CE mark in accordance with IEC 61326 (2006)
- Conforms with IEC 61508 as regards use in safety-related applications, up to and including SIL 2.
Manufacturer | ABB |
---|---|
Model No | TTH 200 |
Output | Standard: 4 to 20 mA; Configurable: 20 to 4 mA |
Cable Connection | Maximum sensor line resistance (RW) for each line: 1.5 kΩ, total: 3 kΩ |
Storage Temperature | -50 to 85 °C |
Electrical Connection | Electrical connection Terminals (captive screws) incl. soldering tags |
Input | Resistance RTD Pt-100, Thermocouples B,E, J, K, N, R,S, T, Voltages, mV Voltages |
Voltage | -125 to 125 mV; -125 to 1100 mV |
Ambient Temperature | Standard: -40 to 85°C; Optional: -50 to 85°C |
Electrical Interface | 3.5 kV DC (approx. 2.5 kV AC) 60 s, input to output |
Vibration Resistance | 10 to 2,000 Hz at 5g in acc. with IEC 60068-2-6, during operation and transport |
Input resistance | > 10 MΩ |
Display | Standard Supply Without Display |
Warm-up Time | 5 minutes |
Power Supply | 11 to 42 VDC |
Housing | Polycarbonate |
Communication | HART protocol |
Calibration | Provided alongwith and valid for 1 year, traceable to National Standards. |
Weight | 50 Grams |
