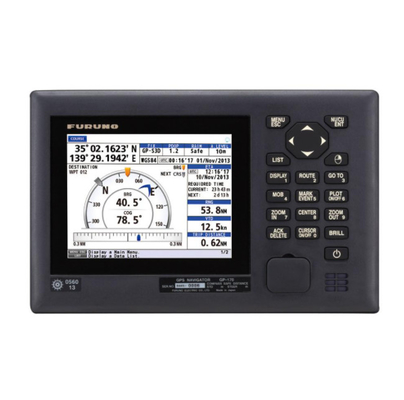

Original Japan Furuno GP-170 Marine GPS satellite navigation instrument Marine positioning instrument

Highly stable position fixing for seagoing vessels

Furuno’s GP170 is a highly stable and reliable position fixing system for ocean going ships, large yachts, ferries and commercial vessels. It is an ideal position sensor for Radar, AIS, ECDIS, Autopilot, Echo Sounder and other navigation and communications equipment. Its newly designed GPS chip and antenna deliver enhanced stability and precision in position fixing. Noise rejection capabilities are incorporated in the new receiver, delivering anti-jamming function as well as a high level of tolerance towards multi-path mitigation. Tolerance towards multi-path mitigation is further enhanced when the GPA020S or GPA021S antenna unit is utilized.

BAM-Ready

The GP170 is BAM (Bridge Alert Management) ready and boasts a variety of display modes, including Plotter, Course, Highway, Data and Integrity. The Integrity display mode delivers a highly accurate Skyplot presentation of currently viewable satellites, status on GNSS/SBAS signal reception including strength and SNR, and elevation angles of available satellites, as well as detailed information about available beacon stations.

* Refer to the Antenna List. The GPA-019S from the GP-150 previously installed can be used. If type-approved DGPS is required, please replace it with GPA-021S.

** Selectable when beacon receiver is incorporated into the Display Unit GP-170.

Variety of display modes available:

Plotter, Course, Highway, Data and Integrity

A Positioning Display, Icon Display Area.

B Main Display Area. Please refer to each of the display modes for details.

C Action Guidance and Alert Display Area (under alert situation, the information about the most imminent alert is displayed).

*5.7" color LCD (with 640 x 480 pixels) for data visualization

*Simplified menu operationThe operator can navigate through the menu tree either by pressing the cursor pad or pressing the corresponding numbers on the numeric keypad to the menu items

*Enhanced route planning/management function available

• Comprehensive range of voyage information to be incorporated in routes

• Streamlined route creation through combination with an external PC (GPX format) Sharing the active route information with ECDIS to supplement the ECDIS route monitoring capability
