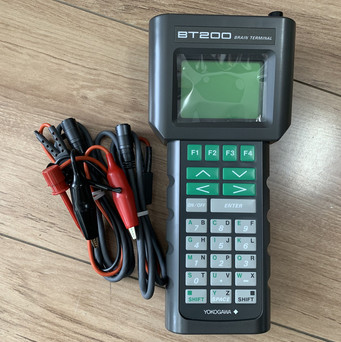

Handheld Hart Field Communicator BT200-P-00 Brain Protocol Terminal

Place of Origin Japan
Brand Name Yokogawa
Certification CCC.CE
Model Number BT200-P-00
Minimum Order Quantity 1
Price usd$1250/pc
Packaging Details carton
Delivery Time 3-5 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number BT200-N00 Size 228*110*51 Mm
Usage Process Testing Machine Power Supply Five AA 1.5 V Dry Alkali Batteries
Highlight

Handheld BT200 Brain Terminal

,

Protocol Hart Field Communicator

,

Hart Field Brain Protocol Terminal

You can tick the products you need and communicate with us in the message board.
Pressure Range
Leave a Message
Product Description

Yokogawa Hart Field Communicator BT200-P-00 Brain Protocol Handheld Terminal with printer



Product Description

As a portable terminal, the Model BT200 BRAIN TERMINAL is used in combination with equipment using brain communication for setting, changing, displaying and printing out parameters such as tag number, output mode, and range, through simultaneous communication. It also monitors I/O values and self-check results, sets constant-current output , and allows zero adjustments. The Model BT200 BRAIN TERMINAL is used by connecting it between 4 to 20 mA DC signal transmission lines of the equipment or to a dedicated connector on the ESC (Signal Conditioner Communication Card) when the system is started up or maintained.

Specification

Brand name Yokogawa
Model BT200-N00
Size 228*110*51 mm
Usage Process Testing Machine
Power Supply Five AA 1.5 V dry alkali batteries
Transmitter output 4-20 mA
Origin Japan
Pressure type Communicator



Handheld Hart Field Communicator BT200-P-00 Brain Protocol Terminal 0

Printout Information

All parameter lists
Parameter list within each menu item
Setup change data list
Uploaded data list
Display images
Self check list

Additional Functions

Batch upload/download of data
Setpoint Protection: Security code entry is required to alter setpoints.
Battery Alarm: An alarm message appearing on the LCD announces low battery voltages.
Automatic Power-off: The terminal is switched off automatically if no key access is made for approximately 5 minutes.
LCD contrast adjustment
Printing (BT200-P00)

Ambient Humidity

5 to 95%RH at 40 °C (104 °F)
30 to 80%RH at 40 °C (104 °F) (with printer)



Handheld Hart Field Communicator BT200-P-00 Brain Protocol Terminal 1





FUNCTIONAL SPECIFICATIONS Basic Functions: l Setup, alteration, and display of parameters BRAIN communication. : constant current output : Zero point adjustment Additional Functions: l Batch upload/download of data l Setpoint Protection: Security code entry is required to alter setpoints. l Battery Alarm: An alarm message appearing on the LCD announces low battery voltages. l Automatic Power-off: The terminal is switched off automatically if no key access is made for approximately 5 minutes. l LCD contrast adjustment l Printing (BT200-P00) Printout Information l All parameter lists l Parameter list within each menu item l Setup change data list l Uploaded data list l Display images l Self check list



Handheld Hart Field Communicator BT200-P-00 Brain Protocol Terminal 2

FEATURES

l Online monitoring and communication

The modulated communication signal does not interrupt the 4 to 20 mA DC signals during communication.



l Common to all Yokogawa’s equipment

The Model BT200 BRAIN TERMINAL works with all equipment that uses BRAIN communication.



l Easy of use

A large display (21 characters by 8 lines) eases setup and alteration proce



l Diagnostics/security with error messages

• Self-check function

• Security code protection of setpoints

• Low battery voltage ala



l Printer (BT200-P00)

Printer prints out tag numbers and other parameters on the spot.



Handheld Hart Field Communicator BT200-P-00 Brain Protocol Terminal 3

Handheld Hart Field Communicator BT200-P-00 Brain Protocol Terminal 4





Communication Specification: Yokogawa original protocol

Modulation: Burst modulation

0: 2400 Hz

1: Signal without carrier

Baud rate:1200bps

Communication signal: host to device: +/- 0.5 V (load resistance 250 Ω)

device to host: +/- 2 mA

Handheld Hart Field Communicator BT200-P-00 Brain Protocol Terminal 5
