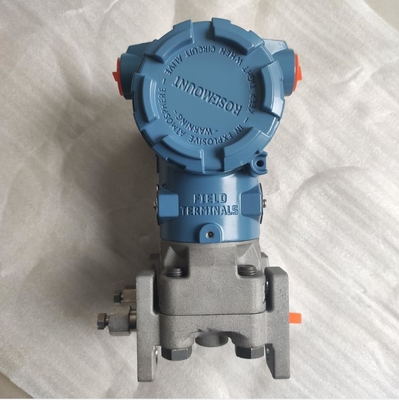

High quality C-276 Precision Pressure Transmitter 3051CD Alloy Gage Absolute Pressure

Place of Origin America
Brand Name Rosemount
Certification CCC.CE
Model Number 3051CD2A22A2BB4M5Q4P2
Minimum Order Quantity 1
Price usd$540/pc
Packaging Details carton
Delivery Time 3-5 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Pressure Type G - Gage Transmitter Output 4-20 MA
Operate Temperature -20~80°C Pressure Range 1-600bar
Accuracy 0.5%FS; 1%FS
High Light

Alloy HART Pressure Transmitter

,

Gage Absolute Pressure Transmitter

,

3051CD Inline Pressure Transmitter

You can tick the products you need and communicate with us in the message board.
Brand name Rosemount
Model 3051TG3A2B21AB4
Pressure Range 1-600bar
Accuracy 0.5%FS; 1%FS
Warranty 1 year
Pressure Type In-Line Pressure Transmitter
Leave a Message
Brand name Rosemount
Product Description

Hot selling alloy c-276 Emerson Rosemount Precision Pressure Transmitter 3051CD



Product Description

The Rosemont 3051CD differential pressure transmitter is an intelligent differential pressure transmitter in the Rosemont transmitter. The Rosemount 3051 pressure transmitter features unmatched operational performance, a flexible CoPlanarTM platform, and can be upgraded. The performance specifications of the new Rosemount 3051 transmitter guarantee accuracy and stability under different operating conditions.

Specification

Brand name Emerson Rosemount
Model 3051CD2A22A2BB4M5Q4P2
Accuracy ±0.075%
Pressure Type In-Line Pressure Transmitter
Pressure Range 1-600bar
Transmitter output 4-20 mA
Operate Temperature -20~80°C
Pressure type G - Gage



High quality C-276 Precision Pressure Transmitter 3051CD Alloy Gage Absolute Pressure 0

Overall performance: ±0.15%

Accuracy: + / - 0.075%

Differential pressure: calibration range from 0.5inH2O to 2000psi

Gauge pressure: calibration range from 2.5inH2O to 2000psi

Absolute pressure: calibration range from 0.167psia to 4000psia

Process isolating diaphragm: stainless steel, Hastelloy C, Monel, tantalum (CD, CG only) and gold plated Monel

Compact, sturdy and light in weight, easy to install

High quality C-276 Precision Pressure Transmitter 3051CD Alloy Gage Absolute Pressure 1







During operation, the isolation diaphragm and filling fluid on the high and low pressure sides transfer the process pressure to the filling fluid, which then transfers the pressure to the sensing diaphragm at the center of the sensor. The sensing diaphragm is a tensioned elastic element whose displacement varies with the pressure applied (for a GP gauge pressure transmitter, atmospheric pressure is applied as to the low pressure side of the sensing diaphragm). AP absolute pressure transmitter, low pressure side always maintain a reference pressure. The maximum displacement of the sensing diaphragm is 0.004 in. (0.1 mm) and is proportional to the pressure. Capacitance plates on both sides detect the position of the sensing diaphragm. The capacitance difference between the sensing diaphragm and the capacitor plate is converted into the corresponding current, voltage or digital HART (high Speed Addressable Remote Transmitter data highway) output signal



High quality C-276 Precision Pressure Transmitter 3051CD Alloy Gage Absolute Pressure 2





The performance specifications of the new Rosemont 3051C guarantee accuracy and stability under different operating conditions. The flexible CoPlanarTM platform design not only provides the best solution for your application needs, but also fully meets your future technical requirements through PlantWeb factory management network and fieldbus technology



High quality C-276 Precision Pressure Transmitter 3051CD Alloy Gage Absolute Pressure 3

The Rosemount 3051CD differential pressure transmitter has the best operating performance, flexible CoPlanarTM platform, and can be upgraded. Its performance indexes ensure the accuracy and stability under different working conditions. During operation, the isolation diaphragm and filling fluid on the high and low pressure sides transfer the process pressure to the filling fluid, which then transfers the pressure to the sensing diaphragm at the center of the sensor. The sensing diaphragm is a tensioned elastic element whose displacement varies with the pressure applied (for a GP gauge pressure transmitter, atmospheric pressure is applied as to the low pressure side of the sensing diaphragm). The low pressure side always maintains a reference pressure. The maximum displacement of the sensing diaphragm is 0.004 inch (0.1 mm), and the displacement is proportional to the pressure. Capacitance plates on both sides detect the position of the sensing diaphragm. The capacitance difference between the sensing diaphragm and the capacitor plate is converted into the corresponding current, voltage or digital HART (high Speed Addressable Remote Transmitter data highway) output signal. It can be communicated on-site and remotely with the Rosemount 475 operator.

High quality C-276 Precision Pressure Transmitter 3051CD Alloy Gage Absolute Pressure 4
