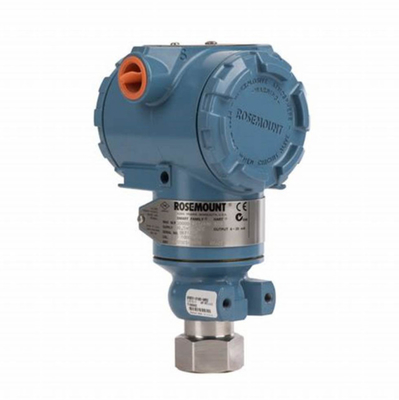

HART Rosemount 3051t Pressure Transmitter 600 Bar Digital Signal

Place of Origin America
Brand Name Rosemount
Certification CCC.CE
Model Number 3051TG3A2B21AB4
Minimum Order Quantity 1
Packaging Details carton
Delivery Time 3-5 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model 3051T¹ - In-Line Pressure Transmitter Pressure Type G - Gage
Transmitter Output 4-20 MA Operate Temperature -20~80°C
Pressure Range 1-600bar Accuracy 0.5%FS; 1%FS
Highlight

Digital Rosemount 3051t Pressure Transmitter

,

HART Rosemount 3051t Pressure Transmitter

,

HART Pressure Transmitter 600 Bar

You can tick the products you need and communicate with us in the message board.
Brand name Rosemount
Model 3051TG3A2B21AB4
Pressure Range 1-600bar
Accuracy 0.5%FS; 1%FS
Warranty 1 year
Pressure Type In-Line Pressure Transmitter
Leave a Message
Brand name Rosemount
Product Description

Rosemount 3051T In-Line Pressure Transmitter 4-20 mA with Digital Signal Based on HART Protocol



Product Description

Rosemount 3051T In-Line Pressure Transmitters are the industry standard for Gage and Absolute pressure measurement. The in-line, compact design allows the transmitter to be connected directly to a process for quick, easy and cost effective installation.

Capabilities include:

  • Power Advisory can proactively detect degraded electrical loop integrity issues (Option Code DA0)
  • Local Operator Interface with straightforward menus and built-in configuration buttons (Option Code M4)
  • Safety Certification (Option Code QT)



Specification

Brand name Emerson Rosemount
Model 3051TG3A2B21AB4
Accuracy 0.5%FS; 1%FS
Pressure Type In-Line Pressure Transmitter
Pressure Range 1-600bar
Transmitter output 4-20 mA
Operate Temperature -20~80°C
Pressure type G - Gage





Emerson 3051TG In-Line Pressure Transmitter Specifications:
Rangedown Up to 150:1
Communication Protocol 4-20 mA HART, WirelessHART®, FOUNDATION fieldbus, Profibus, 1-5 V Low Power HART
Measurement Range Up to 20000 psig (1378,95 bar) Gage, Up to 20000 psia (1378,95 bar) Absolute
Process Wetted Material 316L SST, Alloy C-276
Diagnostics Basic Diagnostics, Loop Integrity
Certifications/Approvals SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE®, hazardous location, see full specs for complete list of certifications



The 3051T pressure transmitter combines proven sensor and electronics technologies with a single isolator design for absolute and gage pressure measurements from 0.3 to 10,000 psi. The 3051T pressure transmitter provides a superior alternative for measuring absolute or gage pressure with the rugged, reliable performance that is characteristic of pressure transmitters.

HART Rosemount 3051t Pressure Transmitter 600 Bar Digital Signal 0



HART Rosemount 3051t Pressure Transmitter 600 Bar Digital Signal 1



HART Rosemount 3051t Pressure Transmitter 600 Bar Digital Signal 2

Process Connection:Flange with fixing thread 7/16-20 UNF and 1/4-18 NPT female thread on both sides.

Electrical Connection:The electrical connection is made via cable entry M20x1.5.

Working Pressure Limits:Maximum working pressure: 16MPa,25MPa,40MPa.

3051TG3A2B21AB4 | Rosemount 3051T In-Line Pressure Transmitter

4–20 mA with Digital Signal Based on HART Protocol,Low-Power 1-5 Vdc with Digital Signal Based on HART Protocol.

Total performance is based on combined errors of reference accuracy, ambient temperature effect, and static pressure effect at normal operating conditions (70% of span typical reading, 740 psi (51,02 bar) line pressure).

Total performance is based on combined errors of reference accuracy, ambient temperature effect, and static pressure effect at normal operating conditions (70% of span typical reading, 740 psi (51,02 bar) line pressure).
