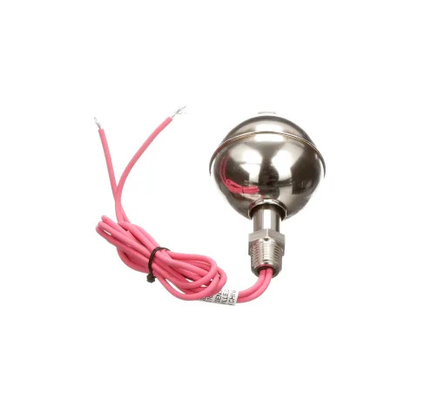

High Pressure 18 AWG Single Point Level Switch 1/4 NPT MALE 24" Poly

Place of Origin USA
Brand Name gems
Certification ccc
Model Number Inc 01950
Minimum Order Quantity 10
Price USD$125/pc
Packaging Details original packing
Delivery Time 3-5 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000/pieces per months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Float Level Switch Body Style Float
Connecting Thread 1⁄4 NPT Output SPST-NO/NC
Sensing Mode Mechanical Wire Size 18 AWG
High Light

18 AWG Single Point Level Switch

,

Single Point Level Switch 1/4 NPT

,

1/4 NPT liquid level Sensor

Leave a Message
Product Description

GEMS LS-1950 Level switch All Stainless Steel For High Pressure and Temperature,1/4 NPT MALE, 18AWG 24" Poly



Introduction


GEMS Zimmer LS-1950 series single-point liquid level switch: all stainless steel switch with high temperature and high pressure characteristics, suitable for high-demand applications. The material meets FDA food hygiene standards. It has the characteristics of high precision, firmness and reliability, and is suitable for corrosive High temperature applications for pressurized liquids. Also works with oil, water and some chemicals.



Specification




Wire Size 18 AWG
Type Float Switch
Contact Form SPST
Output SPST-NO/NC
Sensing Mode Mechanical
Series LS-1950 Series
Operating temperature -40 to 300 °F



Common Specifications

Electrical Termination: No. 18 AWG, 24˝ L., Polymeric Lead Wires (except Part No. 79999 which has Teflon® lead wires).

Approvals: LS-1950 Series switches are U.L. Recognized – File No. E45168 and are CSA Listed - File No. 30200 (Part No. 79999 is U.L. Recognized only).

Switch Operation: Selectable, N.O. or N.C., by inverting float on unit stem. Units are shipped N.O. unless otherwise specified.

High Pressure 18 AWG Single Point Level Switch 1/4 NPT MALE 24" Poly 0

All stainless steel switch with high temperature and high pressure resistance, suitable for high-demand applications . The material conforms to FDA food hygiene standards . It has the characteristics of high precision, firmness and reliability, and is suitable for high temperature applications of corrosive pressurized liquids. Also works with oil, water and some chemicals .



Features:

· High temperature / high pressure resistance

· Stainless steel material meets FDA standards





LS - 1950 high temperature liquid level switch is important by the magnetic reed switch and high temperature resistance of 316 stainless steel material of floating ball, floating ball with magnetic material, in airtight non magnetic metal tube set a magnetic reed switch, then threaded through a floating ball with a magnetic material, and using fixed 2-ring control floating ball and magnetic reed switch is in the related position, float up or down as liquid Down, using the magnet in the ball to attract the contact at the beginning of the magnetic spring, generate on and off action, as a liquid level control or instruction when the float ball near the beginning of the magnetic spring output a switch signal to the control system

High Pressure 18 AWG Single Point Level Switch 1/4 NPT MALE 24" Poly 1



Exceptionally accurate and rugged for higher temperatures and in pressurized or corrosive liquids. For oils, water and chemicals.

High Pressure 18 AWG Single Point Level Switch 1/4 NPT MALE 24" Poly 2

This kind of high temperature liquid level switch is suitable for water quality liquid, as little as possible firm construction, suitable for most corrosive liquids, can be applied in high temperature and high pressure environment all stainless steel material in accordance with FDA food grade certification







Market application




Applicable to generator equipment, petrochemical, food industry, boiler level control



High Pressure 18 AWG Single Point Level Switch 1/4 NPT MALE 24" Poly 3
