UQK Stainless Steel Ball Float Level Switch 24V DC High Temperature Float Switch

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xBrand Name | MC | Model | UQK-01/02/03 |
---|---|---|---|
Material | 304 Stainless Steel | Supply Voltage | AC220V DC24V |
Action Line | 8mm | Contact Capacity | 1.5A 2.5A 2.5~0.5A |
Highlight | UQK Ball Float Level Switch,Ball Float Level Switch 24V DC,24V DC high temperature float switch |
Customized support | OEM, ODM | |
---|---|---|
Warranty | 1 year | |
Place of Origin | Zhejiang, China | |
Type | Float level controller |

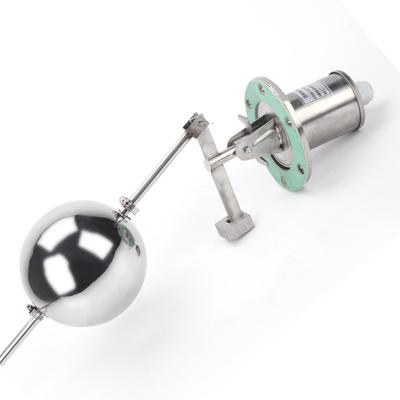

UQK Stainless Steel Ball Float Level Switch High temperature level controller
product description
UQk float level controller consists of float module, micro switch module and shell. A pair of mutually exclusive magnetic steel is mounted on the float end and the microswitch assembly respectively. When the floating ball rises and falls with the change of liquid level within the movement limit, the magnetic steel at its end also moves up and down through the non-magnetic shell to push the magnetic steel on the micro-switch assembly, so that the output contact is connected or broken accordingly, and the signal device at the back level is controlled to send light or sound signals. When the floating ball rises and falls with the liquid level, only when it is in the upper and lower limit positions of the action limit, the output contact will be connected or disconnected, and no signal will be generated during the rise and fall process. The float ball of the controller is made of 304 stainless steel. The float module of the controller and the micro-switch module are isolated from each other so as to avoid the common defects such as leakage of liquid level meters.
specification
model | UQK-01 | QK-02 | QK-03 |
Action line | 8mm | 25-550mm | 8-100mm |
Setting method | non-ajustable | Organic adjustable | stepless adjustable |
Installation method | horizontal installation | horizontal installation | vertical installation |
Pressure of work | <1.6Mpa | <2.5Mpa | <4.0Mpa |
Working temperature | ordinary type<80℃ | high temperature<300℃ | high temperature<300℃ |
The power supply voltage | AC220V DC24V | AC220V DC24V | AC220V DC24V |
Contact capacity | 1.5A 2.5A 2.5~0.5A | 1.5A 2.5A 2.5~0.5A | 1.5A 2.5A 2.5~0.5A |
show details
1. in line with the national standard SILICA GEL CABLE, in strict accordance with the implementation of the standard durable.
2. Laser seamless welding, the introduction of laser welding equipment, welding more beautiful and firm.
3. range adjustable design, high precision range adjustable design, high sensitivity.
4. Full welding process, full sealing design of stainless steel welding.
