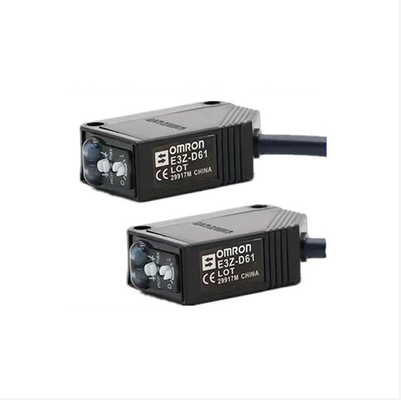

Omron Photoelectric Switch Sensor E3z-D62 Detection Distance Up To 1000mm
| Place of Origin | Japan |
|---|---|
| Brand Name | OMRON |
| Certification | CCC.CE |
| Model Number | E3Z-D62 |
| Minimum Order Quantity | 10 |
| Price | usd 5~25piece/pieces |
| Packaging Details | carton |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand Name | OMRON | Model | E3Z-D62 |
|---|---|---|---|
| Sensing Method | Diffuse-reflective | Light Source | Infrared LED (860 Nm) |
| Control Output | NPN Open Collector | Ambient Temperature Range | -25 To 55 ℃ |
| High Light | Omron photoelectric switch sensor,photoelectric switch sensor 1000mm,E3z-D62 omron photoelectric Sensor |
||
You can tick the products you need and communicate with us in the message board.
| Place of Origin | Japan | |
|---|---|---|
| Brand Name | Omron | |
| warranty | 1 year | |
| output mode | NPN | |
| mains voltage | 24v | |
| Material | Case: Polybutylene terephthalate (PBT) Lens: Denatured Polyarylate |
Product Description
Omron photoelectric switch photoelectric sensor E3z-d62 detection distance up to 1000mm
product description
The shell of e3Z-D62 photoelectric sensor is made of PBT semi-crystalline material. It has very good electrical insulation characteristics and thermal stability, high dielectric strength, excellent arc resistance, minimal moisture absorption in humid and high temperature environment, but also can keep the power supply normal.
Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 1 m, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Infrared LED (860 nm).
- Power supply reverse connection protection
- Reverse connect protection
- Output reverse connection protection
- Output short circuit protection
- Automatic reset
- Built-in mini amplifier
- 1ms fast response
specification
| Brand name | OMRON |
| Model | E3Z-D62 |
| Light source | Infrared LED (860 nm) |
| Power supply voltage | 12 to 24 VDC±10% ripple (p-p) 10% max. |
| Current consumption | 30 mA max. |
| Control output | NPN open collector 26.4 VDC max. 100 mA max. Residual voltage: 1 V max. (Load current Less than 10 mA) Residual voltage: 2 V max. (Load current 10 to 100 mA) |
| Operation mode | Light-ON/Dark-ON selectable |
| Protective circuit | Output short-circuit protection, Output reverse polarity protection, Power supply reverse polarity protection, Mutual interference prevention |
| Response time | Operate or reset: 1 ms max. |
| Insulation resistance | 20 MΩ min. (500 VDC megger) |
| Dielectric strength | 1000 VAC 50/60 Hz 1 min |
| Degree of protection | IEC: IP67 |
| Material | Case: Polybutylene terephthalate (PBT) Lens: Denatured Polyarylate |
1. The detection range of the 0 amplifier built-in type reaches the advanced level.
2. To ensure low temperature performance, can also be used in the frozen warehouse.
3. Improved consistency of optical and mechanical shafts.
4. can protect the sensor even if wiring error.
5. fully comply with The European RoHS directive.
Operation indicator (orange), Stability indicator (green)
Output short-circuit protection, Output reverse polarity protection, Power supply reverse polarity protection, Mutual interference prevention.
The detection distance of OMron photoelectric switch photoelectric sensor E3Z-D62 reaches the industry level
Antireflection type (red light source type, detection distance of 10m) is equipped with filters to prevent mutual interference.
All kinds of reflective products (2 sets) are equipped with the function of preventing mutual interference, and also equipped with the detection distance of 30m (response time 2ms) of the long-distance antithetical type.
Omron photoelectric switch photoelectric sensor E3Z-D62 improves the consistency of optical and mechanical shafts.
