Dwyer V6 FLOTECT Mini Flow Switch Liquid Gas Air Flow Monitoring

Place of Origin USA
Brand Name Dwyer
Certification CCC CE ISO
Model Number V6
Minimum Order Quantity 1
Price $230-$350/PC
Packaging Details 100% original package
Delivery Time 14 work days
Payment Terms L/C, D/P, T/T, Western Union
Supply Ability 3000Piece/Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Warranty 1 Year Temperature Limits MT High Temperature Option 400°F (205°C)
Process Temperature -4 To 220°F (-20 To 105°C). Service Gases Or Liquids Compatible With Wetted Materials.
Pressure Limit Iron Tee Models 1000 Psi (69 Bar Flow Rate 5(A)
High Light

Dwyer V6 FLOTECT Mini Flow Switch


Liquid Gas Air Mini Flow Switch


Dwyer flotect flow switch v6

You can tick the products you need and communicate with us in the message board.
Model V6EPB-B-S-1-B
Model V6EPB-B-S-1-B
Model V6EPB-B-S-2-B
Model V6EPB-B-S-3-B
Model V6EPB-B-S-4-B
Model V6EPB-B-S-5-B
Leave a Message
Model V6EPB-B-S-1-B
Product Description

The extremely compact Flotect® V6 flow switch is designed to monitor the flow rate of liquids, gases or air. It operates magnetically and has no mechanical connections for easy and reliable operation.
The lower body has vanes and a magnet that operates the switch by controlling the magnet in the upper compartment. In most applications the switch is normally open and the fluid in the pipe makes the vane
The leaf spring is compressed, and when the flow rate decreases, the spring pushes the leaf back into place, triggering the switch to alarm or close. Optional tee to easily install the flow switch, the tee is safe
Fitted pipe sizes are 1/2" - 2", and when sleeved, are well suited for 1/4" and 3/8" pipe.

Flow Rate
Low flow rate or no liquid protection pump, engine
Switch type
The standard switch is SPDT, and the option switch is DPDT
1/2 NPT external thread
maximum pressure
1000 psig(69 bar)
stainless steel
gas, liquid
maximum temperature

• Leak-proof lower body machined from bar stock
• Optional for tee mount with calibrated vanes or field adjustable vanes
• 24/7 protection
• Explosion-proof (listed in Specifications)
• Easy replacement of electrical components without disassembly to ensure uninterrupted process
• High pressures up to 1000 psig (69 bar) with brass body and 2000 psig (138 bar) with 316 stainless steel body (see Specifications)
• Low flow models have on-site adjustment of the setpoint
• Easy to install, just insert the tee into the pipeline and connect the power

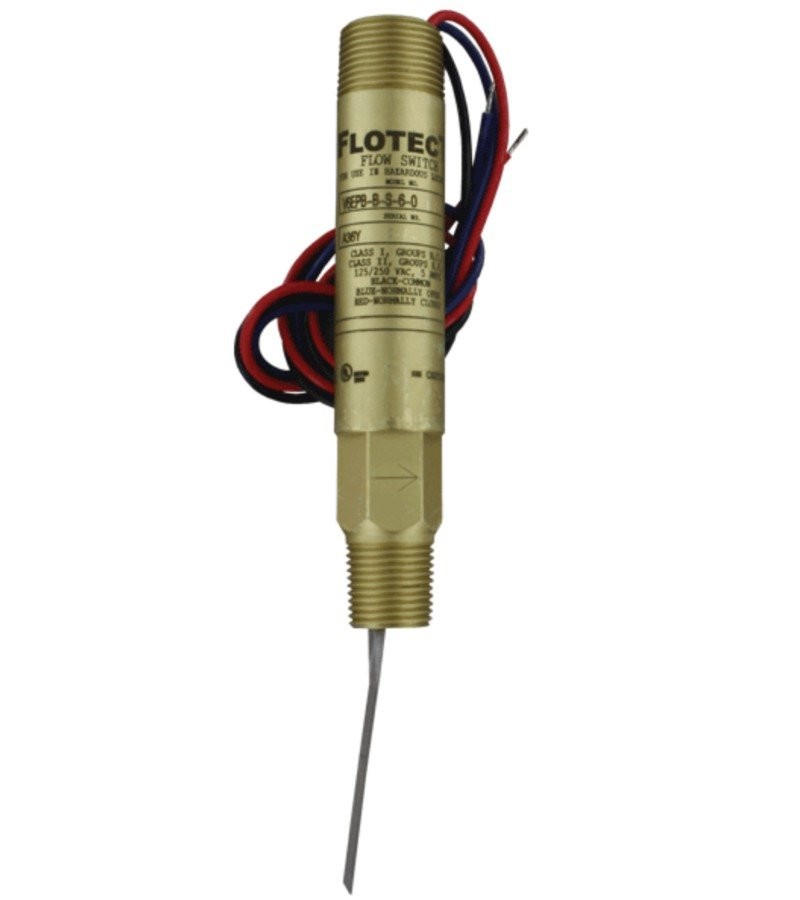

Dwyer V6 FLOTECT Mini Flow Switch Liquid Gas Air Flow Monitoring 0


Service: Gases or liquids compatible with wetted materials.

Wetted Materials: Standard V6 Models: Vane: 301 SS; Lower Body: brass or 303
SS; Magnet: Ceramic; Other: 301, 302 SS; Tee: Brass, iron, forged steel, or 304
SS. V6 Low Flow Models: Lower body: Brass or 303 SS; Tee: Brass or 304 SS;
Magnet: Ceramic; O-ring: Buna-N standard, Fluoroelastomer optional;
Other: 301,302 SS.

Temperature Limits: -4 to 220°F (-20 to 105°C) Standard, MT high temperature
option 400°F (205°C) (MT not UL, CSA, ATEX, IECEx or KC) ATEX Compliant AT,
IECEx IEC Option and KC (KC Option), Ambient Temperature -4 to 167°F (-20 to
75°C) Process Temperature: -4 to 220°F (-20 to 105°C).
Pressure Limit: Brass lower body with no tee models 1000 psig (69 bar), 303 SS
lower body with no tee models 2000 psig (138 bar). Brass tee models 250 psi (17.2
bar), iron tee models 1000 psi (69 bar), forged and stainless steel tee models 2000
psi (138 bar), low flow models 1450 psi (100 bar).

Enclosure Rating: Weatherproof and Explosion-proof. Listed with UL and CSA for
Class I, Groups A, B, C and D; Class II, Groups E, F, and G. (Group A on stainless
steel body models only).

ATEX 0344 II 2 G Ex d IIC T6 Gb Process Temp ≤75°C Alternate
Temperature Class T5 Process Temp ≤90°C, 115°C (T4) Process Temp ≤105°C
consult factory. EC-type Certificate No.: KEMA 04ATEX2128.
ATEX Standards: EN 60079-0: 2009; EN 60079-1: 2007.IECEx

Certified: For Ex d IIC T6 Gb Process Temp≤75°C Alternate Temperature
Class T5 Process Temp ≤90°C, 115°C (T4) Process Temp≤105°C consult factory.
IECEx Certificate of Conformity: IECEx DEK 11.0039;
IECEx Standards: IEC 60079-0: 2007; IEC 60079-1: 2007;
Korean Certified (KC) for: Ex d IIC T6 Gb Process Temp ≤75°C;
KTL Certificate Number: 2012-2454-75.

Switch Type: SPDT snap switch standard, DPDT snap switch optional.
Electrical Rating: UL models: 5 A @125/250 VAC. CSA, ATEX and IECEx models:
5 A @ 125/250 VAC (V~); 5 A res., 3 A ind. @ 30 VDC (V ). MV option: .1 A @ 125
VAC (V~). MT option: 5 A @125/250 VAC (V~). [MT option not UL, CSA, ATEX or

Electrical Connections: UL models: 18 AWG, 18" (457.20 mm) long. ATEX/CSA /
IECEx models: terminal block.

Upper Body: Brass or 303 stainless steel.
Conduit Connections: 3/4" (19.05 mm) male NPT standard, 3/4" (19.05 mm)
female NPT or M25 with BSPT option on junction box models.
Process Connection: 1/2" (12.70 mm) male NPT or 1/2" (12.70 mm) male BSPT
on models without a tee.
Mounting Orientation: Switch can be installed in any position but the actuation/
deactuation flow rates in the charts are based on horizontal pipe runs and are
nominal values.
Set Point Adjustment: Standard V6 models none. Without tee models vane is
trimmable. Low flow models are field adjustable in the range shown. See set point
Weight: 2 to 6 lb (.9 to 2.7 kg) depending on construction.
Options not Shown: Custom calibration, bushings, PVC tee, reinforced vane,
DPDT relays.
Agency Approvals: ATEX, CE, CSA, IECEx, KTL, UL.
