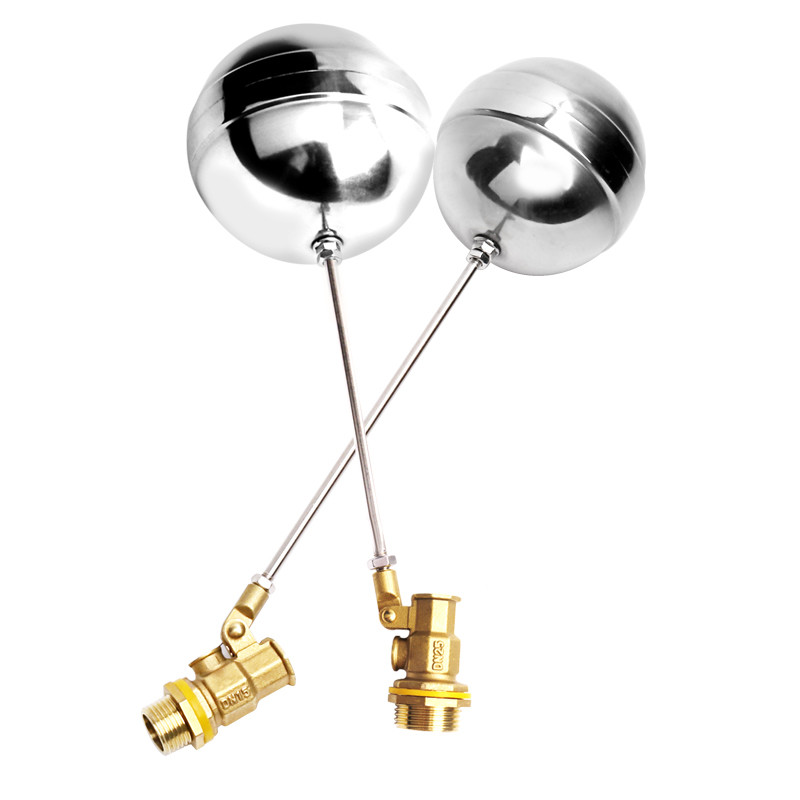

35.4cm Stainless Steel Ball Float Valve Brass Body CCC For Liquid
Place of Origin | zhejiang,China |
---|---|
Brand Name | mc |
Certification | ccc |
Model Number | float ball switch |
Minimum Order Quantity | 100 |
Price | USD$1.00~18.9/pc |
Packaging Details | original packing |
Delivery Time | 5-8 work days |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 1000/pieces per months |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel Number | DN15 | Media Type | Liquid |
---|---|---|---|
Flow Rate | 3~300cm/s | Length | 35.4cm |
Material | Stainless Steel | Warranty | 1 Year |
Highlight | 35.4cm stainless steel ball float valve,stainless steel ball float valve Brass,CCC SS float Valve |

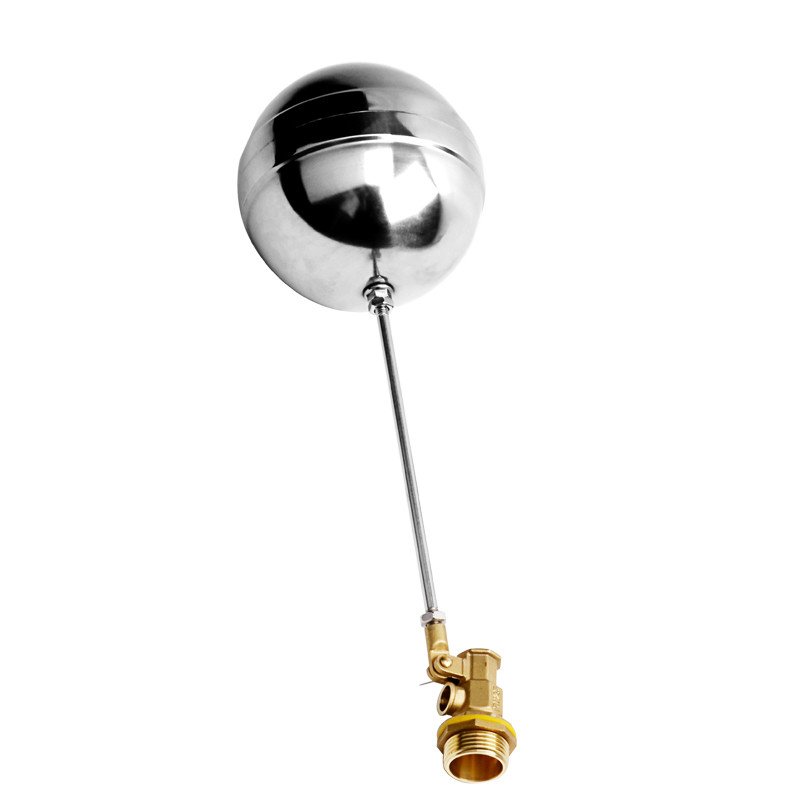

China factory straight valve type stainless steel float ball switch Brass valve body
Introduction
Stainless steel float ball valve is composed of stainless steel body and stainless steel float ball, stainless steel has corrosion resistance, can not rust in water for a long time. Floating ball valve is using the principle of hydraulic design, compact structure, opening and closing action and reliable, high sensitivity, small head loss, the advantages of no water hammer phenomenon, but also has light weight, small volume and convenient installation and maintenance, etc, are widely used in industrial and mining enterprises, civil construction of all kinds of water tank, tank, water tower automatic water supply system, also can be used for atmospheric boiler circulating water control valve.
Specification
Operating principle
Stainless steel float ball valve when the pool (tower) in the water level drop, float ball drop, the use of pipe network water pressure, the ball valve sealing surface open, open the valve water supply, when the pool (tower) in the water level rise, float ball floating, drive the small plunger, close the hole, the sealing surface closed, the valve stop water supply.
When the tank water level is low, as the water, float through a fixed floating ball connecting rod drive outside the body of the piston and the tap water into water tank.
when the water rose, floating ball also follow up, the ball rise will drive the connecting rod is also rising, connecting rod connected to the other end of the valve, when the water level rises to a certain submerged floating ball (water), connecting rod futures game pad, stop the water.
Performance characteristic
1.Use medium: water, oil, liquid
2.Medium temperature: ≤100ºC
3.Use pressure: 0.03Mpa-0.6mpa
4.Customized pressure: 1.0Mpa-1.6mpa
5.Manufacturing materials: stainless steel, copper
6.Sealing material: butadiene rubber, silica gel
Construction
strainer valve body valve core silica gel lever1 lever2 Water level adjusting screw Fish in form of a float
Specification | Outside thread |
|
Club length | rod diameter | floating ball diameter | Total Length |
4'DN15 | 20mm | 12mm | 191mm | 5mm | 100mm | 35.4cm |
6'DN20 | 25mm | 12mm | 191mm | 5mm | 110mm | 36cm |
1''DN25 | 32mm | 13mm | 220mm | 8mm | 150mm | 43cm |
2.2''DN32 | 42mm | 16mm | 400mm | 8mm | 170mm | 47.5cm |
1.5''DN40 | 46mm | 18mm | 483mm | 10mm | 200mm | 59cm |
2''DN50 | 57mm | 23mm | 518mm | 10mm | 225mm | 62.5cm |
-
-

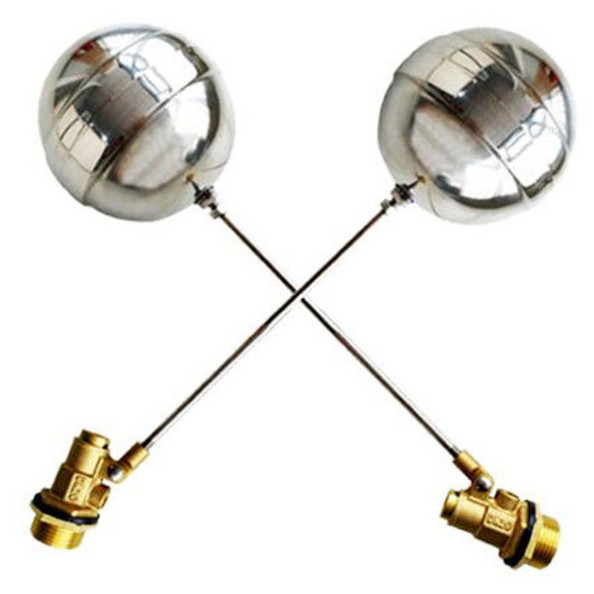

304 stainless steel float ball valve, thickened brass body, long service life
-

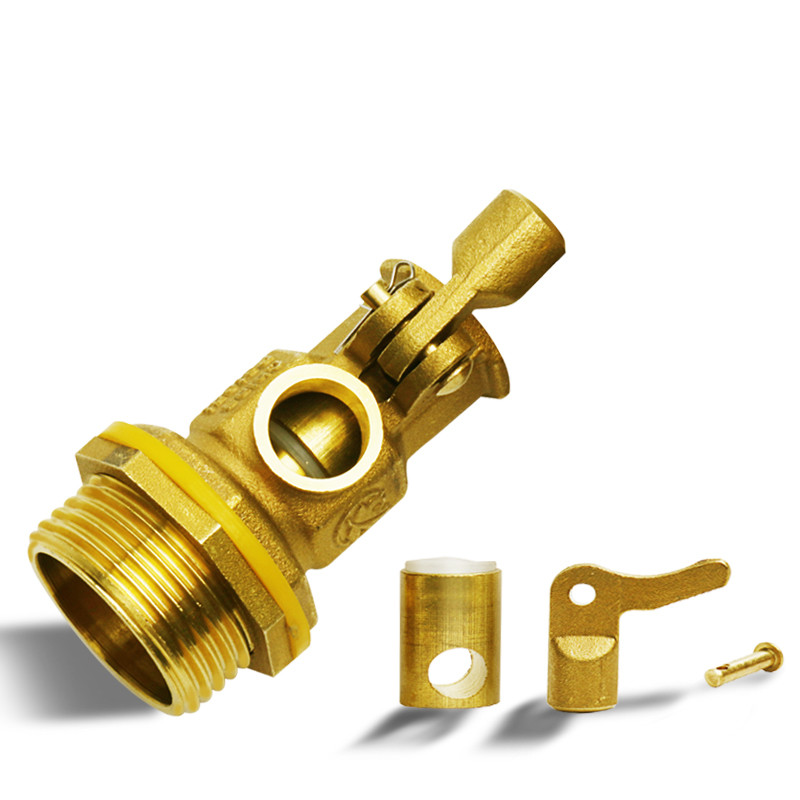

Brass body straight plug ball float for safety and durability
-
Super toughness rubber plug is preferred, durable and scour resistant
