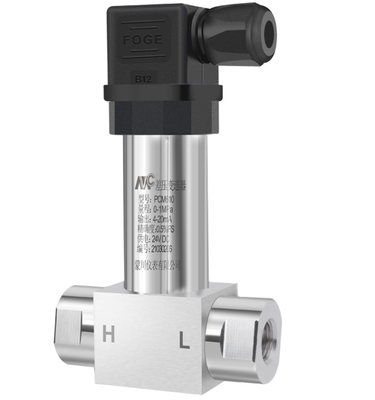

The PCM610 differential pressure transmitter is assembled from an OEM silicon piezoresistive differential pressure oil-filled core. The enclosure is of full stainless steel construction with strong corrosion resistance and two.The pressure connections are threaded connections, which can be installed directly on the measuring pipe or connected through the lead pipe.

Specification

Selection of 316 l pressure diaphragmPressure is accurate perception in small pressure

The integration of stainless steel diaphragmHigh quality stainless steel matching Turner seismic resistant to corrosion.

4MM standard pressure holeThe internal diameter is 4 mm, the external diameter is 12 mm standard opening to reject interference, excellent pressure from the source to ensure accurate pressure measurement

European imports hersman connectorsOriginates from Italian quality and reliable guarantee of the converted signal to convey accurately

A variety of differential pressure conditions easy to work

PCM610 series standard such as voltage and current output are available, can be easily installed and widely used in process control, aviation, aerospace, automotive, medical equipment, HVAC and other fields of differential pressure, liquid level, flow measurement and control, etc.

Installation method of PCM610 differential pressure transmitter

(1) Choose a place easy to operate and maintain for installation;

(2) It should be installed as far away from vibration source as possible;

(3) Should be as far away from the heat source as possible;

(4) It is preferred to install three valve sets on the pipeline to avoid damage caused by over-loading;

(5) when installing, clamp the transmitter with a wrench at six;

(6) The connection between the Hussman joint and the shell cannot be rotated during operation.

PCM610 safety considerations differential pressure transmitter

(1) transmitter should be careful when handling and installation of the hit and damage, avoid components affect the performance of the circuit.

(2) pressure transmitter into the mouth with isolation diaphragm, not artificially with foreign body touch.

(3) the electrical connections must be strictly according to the wiring method, connection error can cause the damage of the amplifying circuit.

(4) in the product installation to use if have problems, please contact with our company, in the product when an exception occurs, please do not open to repair, should contact the manufacturer.
