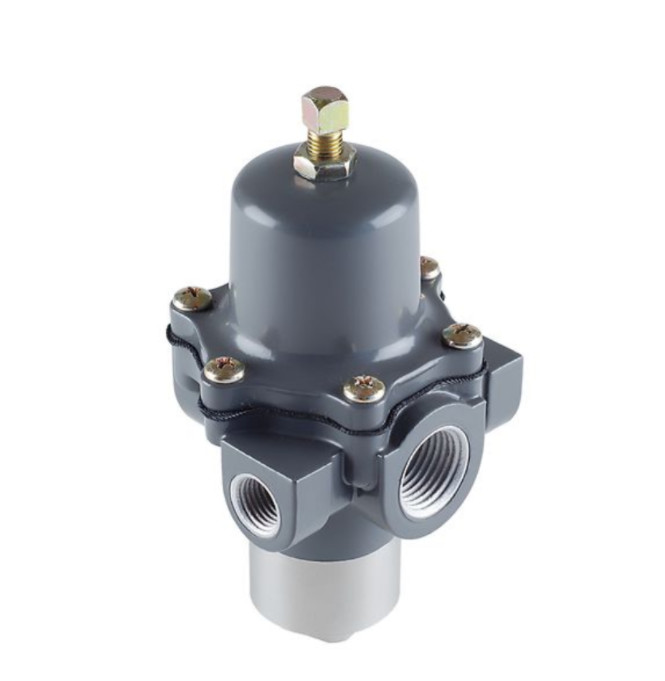

Emerson Fisher Gas Pressure Regulator Internal 67CFR-239 250 PSI

Fisher 67CFR-239 direct-operated regulators and filter regulators are typically used to provide constantly controlled, reduced pressures to pneumatic and electropneumatic controllers and other instruments. These are suitable for most air or gas applications. Other applications include providing reduced pressures to air chucks, air jets, and spray guns.



Principle of Operation

Downstream pressure is registered internally on the lower side of the diaphragm. When the downstream

pressure is at or above the set pressure, the valve plug is held against the orifi ce and there is no fl ow through the regulator. When demand increases, downstream pressure drops slightly allowing the spring to extend,



moving the stem down and the valve plug away from the orifice. This allows fl ow through the regulator.







End Connection 1/4" NPT

Maximum Inlet Pressure 250 psig / 17.2 bar

Spring Range 0-125 psi/ 0-8.6bar

Pressure Registration Internal

Smart Bleed Check Valve Set point 6 psi / 0.41 bar differential

Available Configurations

Fisher 67CFR filter regulator have an internal relief valve with a soft seat for reliable shutoff with no discernible leakage.

Body Size and End Connection Style

1/4" NPT



Maximum Inlet Pressure (Body Rating)

250 psig / 17.2 bar

Spring/Outlet Pressure

0-125 psi/0-8.6bar



Pressure Registration

Internal



Temperature Capabilities

With Nitrile (NBR):

Standard Bolting: -20 to 180°F / -29 to 82°C

With Gauges: -40 to 180°F / -40 to 82°C

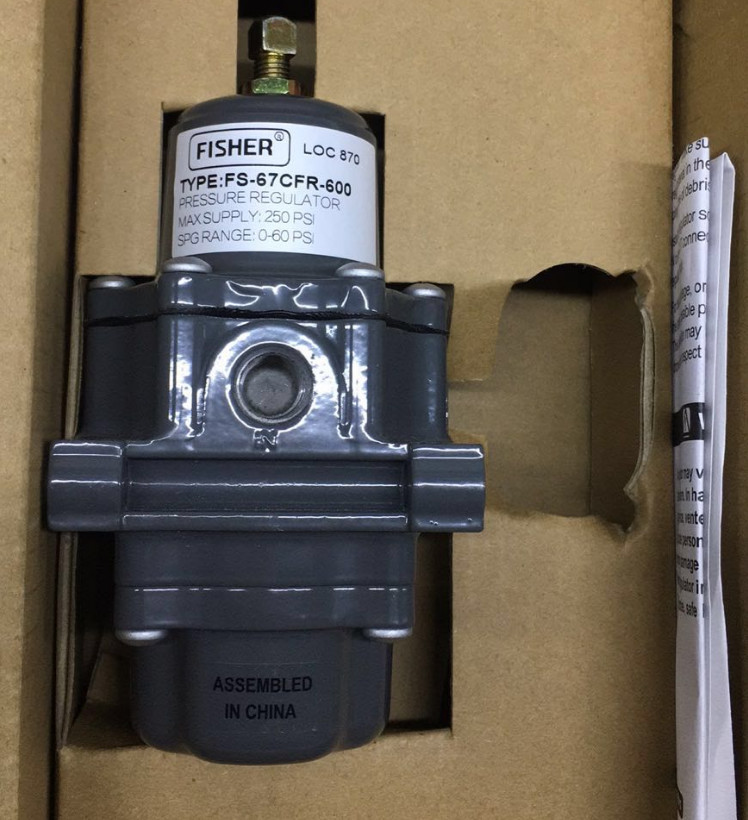

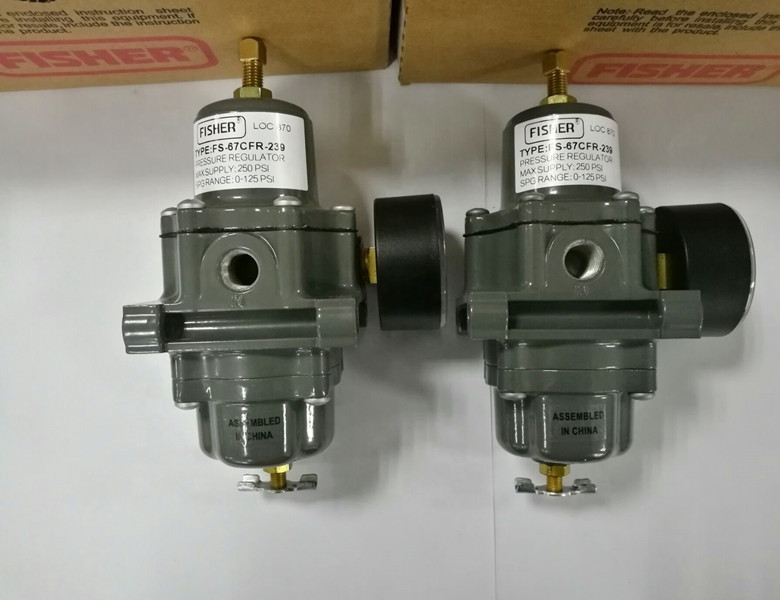

Type 67CFR Filter Regulator

• Smart Bleed internal check valve

• Large dripwell with manual or automatic drain

Type 67CFR Filter Regulator

• Stainless steel drain valve
