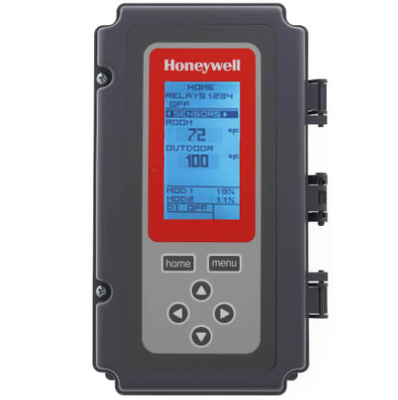

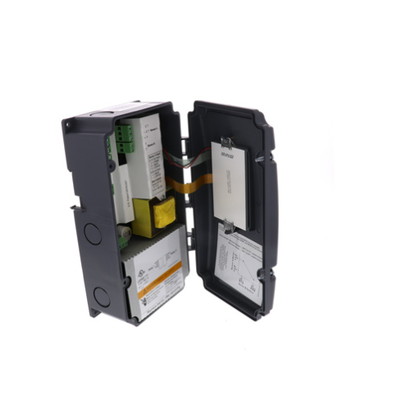

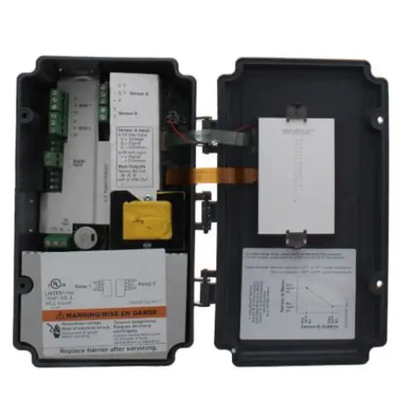

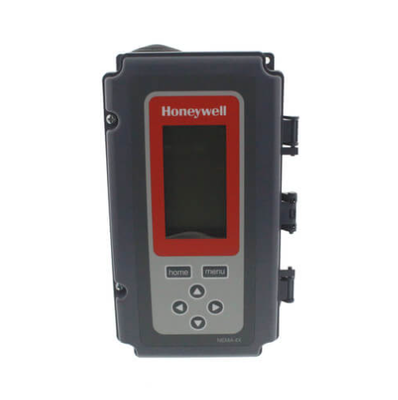

New Original T775B2016 Electronic Temperature Controller with 24, 120, or 240 Vac Power and -40°F to 140°F Operating Temperature Field-Mountable in Any Orientation

Power: 24, 120, or 240 Vac; 50/60 Hz A separate earth ground is required for any power source. Power Consumption: • 8 VA maximum at 60 Hz • 10 VA maximum at 50 Hz Operating & Storage Temperature Ambient Rating: • -40°F to 125°F (-40°C to 52°C) @ 50 Hz • -40°F to 140°F (-40°C to 60°C) @ 60 Hz Relative Humidity: 5% to 95% non-condensing Dimensions: refer to Fig. 1 on page 4. All T775 controllers are field-mountable in any orientation to either a panel or wall. Digital Input (DI): 18 Vdc and 3.5 mA (for choosing external contact) Digital Output (DO) Alarm (T775P only): • Alternating Current (AC): — 30 Vac RMS; 1.5 A steady 3 A inrush P.F. 0.45 NC — 20 Vac RMS; 100 mA minimum load on NO and NC contacts • Direct Current (DC): 1 mA at 100 mV DC minimum load NOTE: In applications requiring a gold contact signal relay, an external signal relay or additional load resistor may be needed for the digital output. Relay Contact Output Ratings (N.O. and N.C.): • 1/2 hp; 9.8 AFL, 58.8 ALR @ 120 Vac • 1/2 hp; 4.9 AFL, 29.4 ALR @ 240 Vac • 125 VA pilot duty @ 120/240 Vac • 10A @ 24 Vac (resistive) Modulating Outputs: • 0-10 Vdc; drive a minimum of 2,000 Ohms • 2-10 Vdc; drive a minimum of 2,000 Ohms • 4-20 mA; drive a maximum of 600 Ohms • Electronic Series 90; requires 340 Ohm resistor (included) across terminals R and W • Floating Sensed Temperature Limits (displayed): • Minimum -60°F (-51°C) • Maximum 270°F (132°C)
