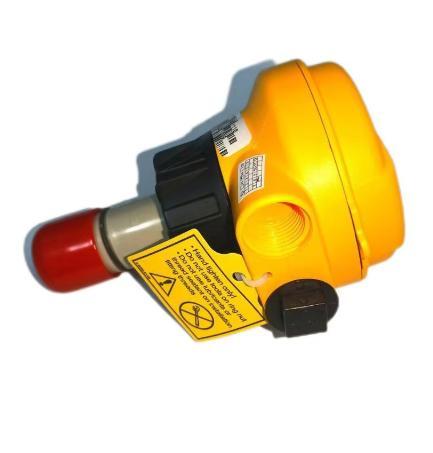

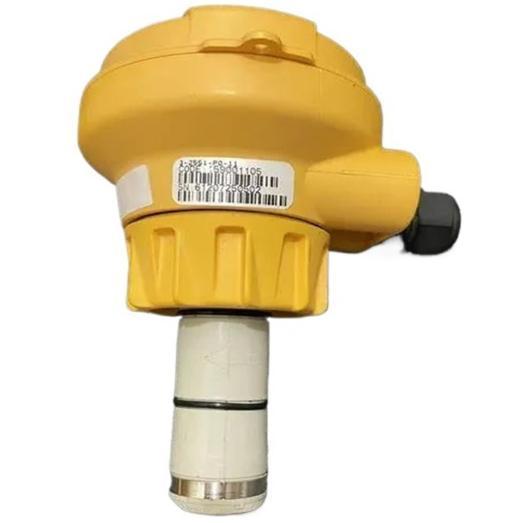

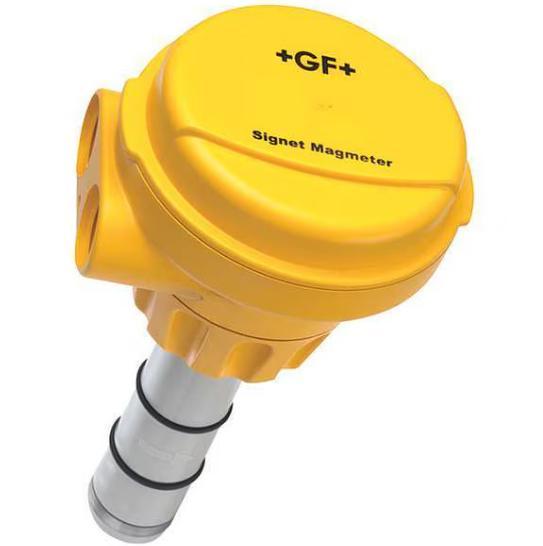

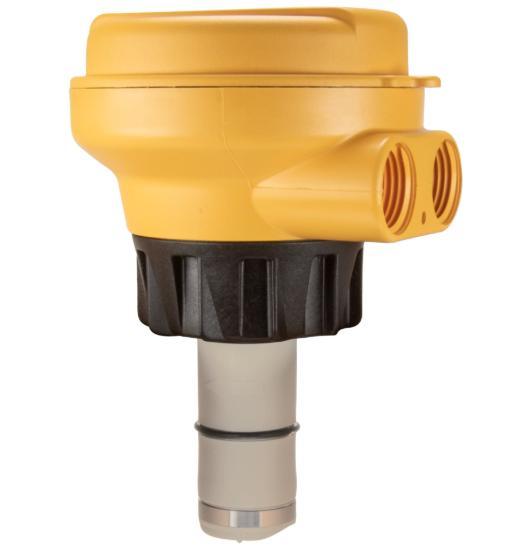

GF Signet 3-2551-P0-12 Magmeter Flow Sensor

  • GF Signet 3-2551-P0-12 Magmeter Flow Sensor
  • GF Signet 3-2551-P0-12 Magmeter Flow Sensor
  • GF Signet 3-2551-P0-12 Magmeter Flow Sensor
  • GF Signet 3-2551-P0-12 Magmeter Flow Sensor
  • GF Signet 3-2551-P0-12 Magmeter Flow Sensor
  • GF Signet 3-2551-P0-12 Magmeter Flow Sensor
Place of Origin USA
Brand Name GF
Certification CCC,CE
Model Number 3-2551-P0-12
Minimum Order Quantity 1
Price $750
Packaging Details Original packaging
Delivery Time 5-8 work days
Payment Terms L/C,D/A,D/P,T/T
Supply Ability 100pc/months
Product Details
Power Requirements 4 To 20 MA Maximum Cable 300 M (1000 Ft)
Max. Loop Resistance 300 Ω Shipping Weight 0.680 Kg
Leave a Message
Product Description
Basic Product Overview

Model: 3-2551-P0-12

Brand: GF Piping Systems (Signet)

Product Type: Insertion-type electromagnetic flow sensor (Magmeter, blind version without local display)

Custom Configuration Definition
  • P: Wetted part = Polypropylene (PP) body + 316L stainless steel electrodes & grounding ring
  • 0: Applicable pipe range DN15 ~ DN100 (1/2" ~ 4")
  • 12: No on-board display + isolated 4–20mA analog output signal
