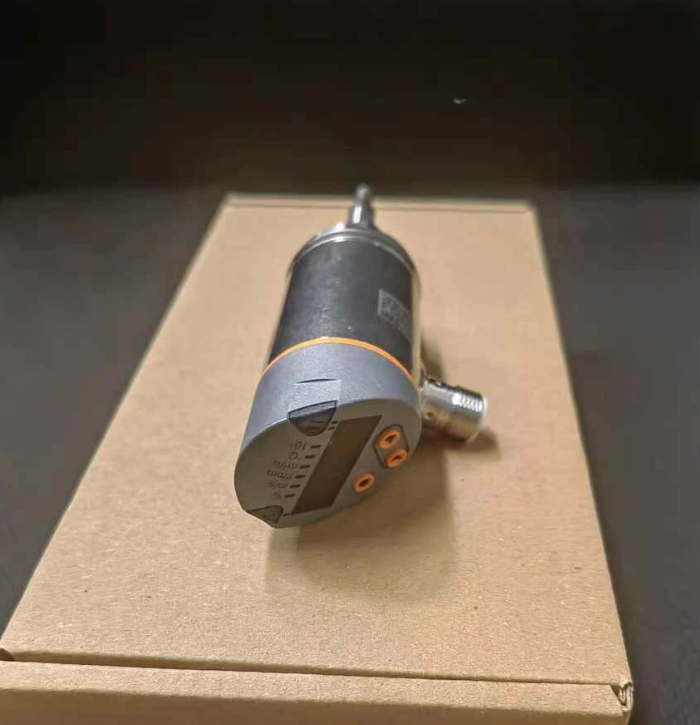

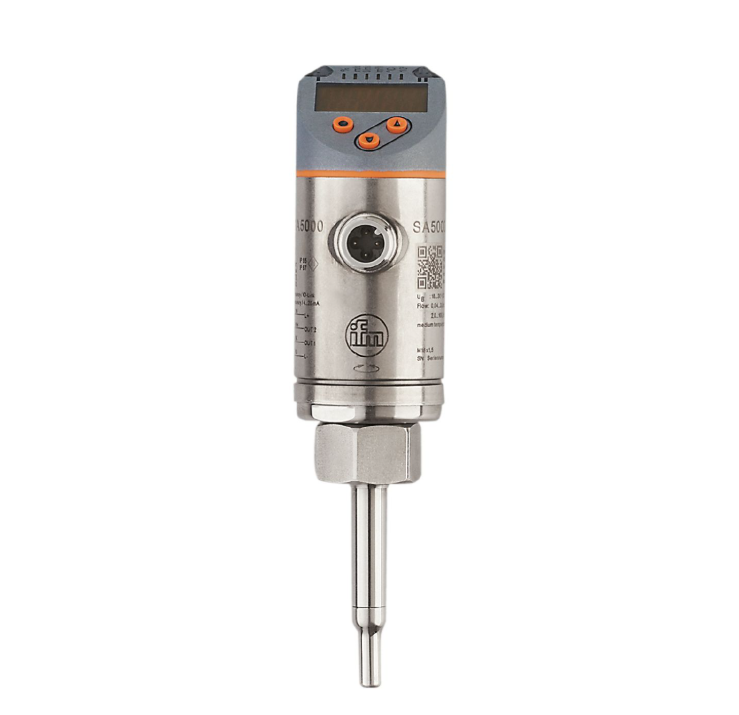

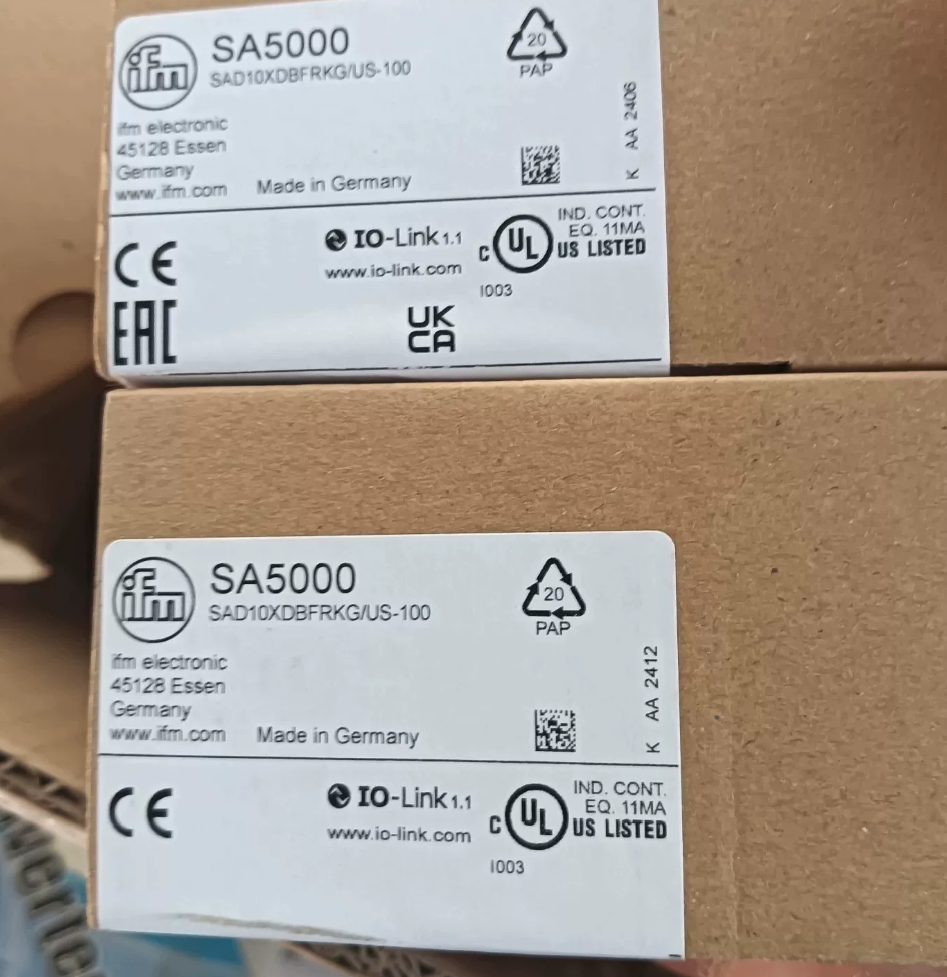

New original German Flow sensor IFM SA5000 - In stock
| Place of Origin | Germany |
|---|---|
| Brand Name | IFM |
| Model Number | SA5000 |
| Minimum Order Quantity | 2 |
| Price | USD＄194 |
| Packaging Details | original packing |
| Delivery Time | in stock |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 10PC |
Product Details
Product Description
Electrical data
| Operating voltage[V] | 18...30 DC |
| Current consumption[mA] | < 100 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] | 10 |
| Measuring principle | calorimetric |
Outputs
| Total number of outputs | 2 |
| Output signal | switching signal; analog signal; frequency signal; IO-Link; (configurable) |
| Electrical design | PNP/NPN |
| Number of digital outputs | 2 |
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC[V] | 2.5 |
| Permanent current rating of switching output DC[mA] | 250 |
| Number of analog outputs | 1 |
| Analog current output[mA] | 4...20; (scalable) |
| Max. load[Ω] | 350 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
| Frequency of the output[Hz] |
0...1000 |
Accuracy / deviations
| Temperature drift[cm/s x 1/K] | 0,003 m/s x 1/K (< 20 °C; > 70 °C) |
| Max. temperature gradient of medium[K/min] | 100 |
