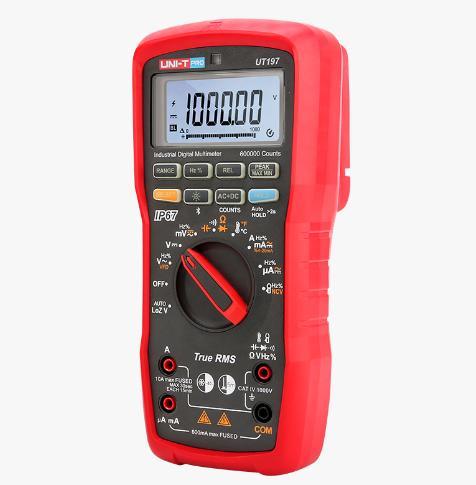

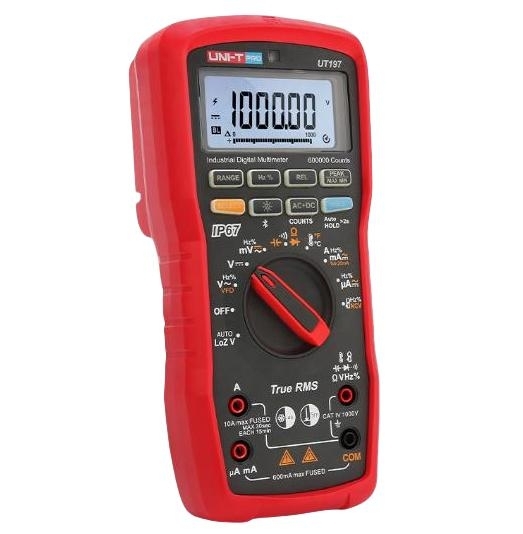

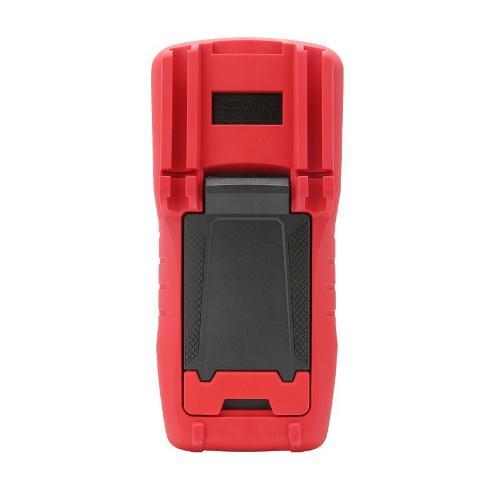

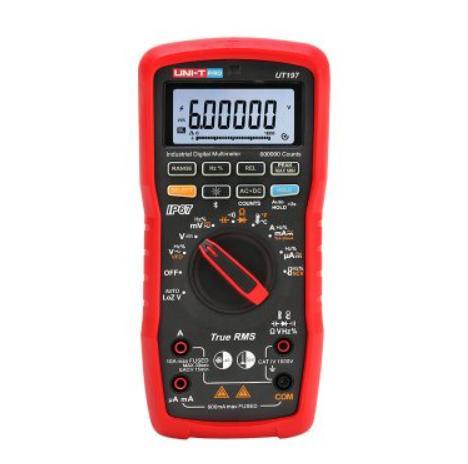

UNI-T UT197 Industrial TRMS Digital Multimeter
| Place of Origin | China |
|---|---|
| Brand Name | UNI-T |
| Certification | CE |
| Model Number | UT197 |
| Minimum Order Quantity | 1 |
| Price | 300 |
| Packaging Details | Original packaging |
| Delivery Time | 3-5days |
| Payment Terms | L/C,D/A,D/P,T/T |
| Supply Ability | 1000pc，1months |
Product Details
| Temperature | -40℃~1000℃ | Duty Cycle | 10Hz~10kHz (10%~90%) |
|---|---|---|---|
| Display Count | 600000 (DCV); 9999 (frequency) | Auto Power Off | Around 15 Minutes |
Product Description
- CAT IV 1000 V safety rating
- IP67 sealing and 5 m drop protection
- True-RMS; AC/DC voltage and current to 1000 V and 10 A; combined AC+DC
- Low-impedance (LoZ) mode to reject ghost voltages
- VFC/VFD mode and low-pass filter for drive outputs
- Loop-read function for process work
- Resistance to 60 MΩ, capacitance to 60 mF, frequency, temperature to 1000 ℃
- Bluetooth app; relative, max/min, and peak-hold modes
