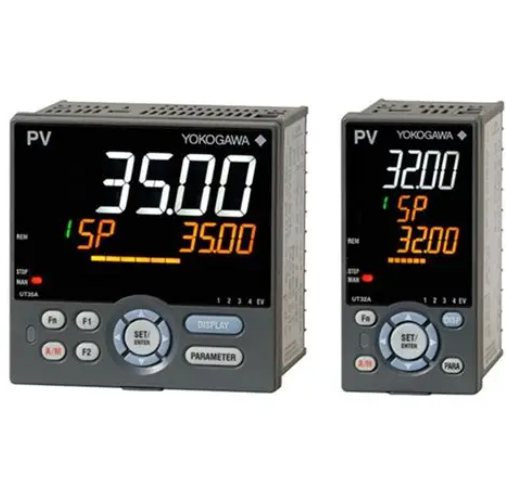

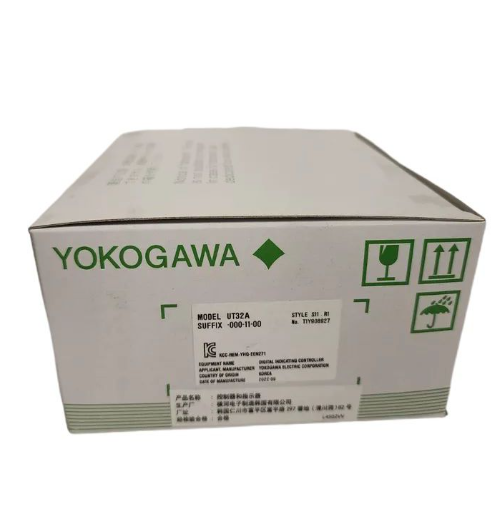

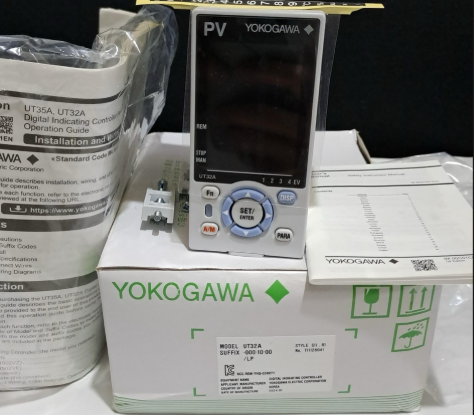

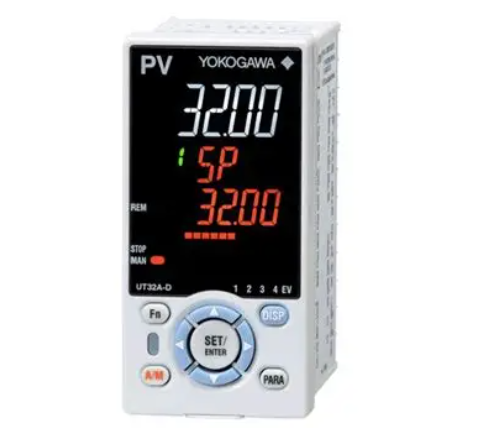

Yokogawa UT32A-010-10-00 Digital Indicating Controller

Manufacturer : Yokogawa

Product Number : UT32A-010-10-00

Product Type : Digital Indicating Controller

UT32A – Model: Program Controller (Power supply: 100-240 V AC) 2 program patterns/20 program segments (When the /AP option is specified, 4 program patterns/40 program segments, max. 20 segments per pattern.) (provided with retransmission output or 15 V DC loop power supply, 3 DIs, and 3 DOs)

0 – Type 1: Basic control: Standard type

1 – Type 2: Functions: RS-485 communication (Max.38.4 kbps, 2-wire/4-wire)

0 – Type 3: Open networks: None

1 – Display language : English

0 – Case color: White (Light gray)

00 – Fixed code

Input type : 1 Universal input (TC, RTD, mV, V, mA)

Indication accuracy : ±0.1% of F.S.

Control scan period : 50, 100, 200 msec

PV/SP data display : 14-segment, 5 digits, Bar graph LCD display

Digital inputs

Number : 3 (Std) 5 (Max)

Type : SP No.Change, PID No. Change, A/M Change, etc

Digital outputs

Number : 3 (Std) 5 (Max)

Function : PV High, PV Low, Dev High, etc
