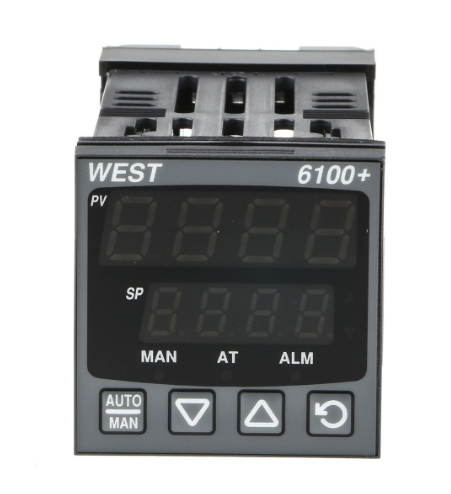

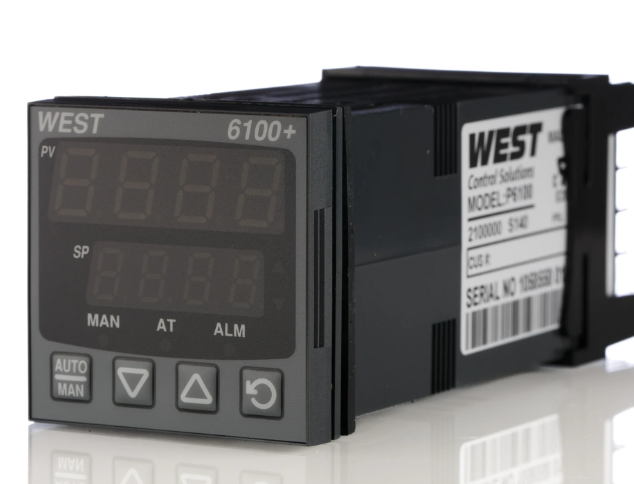

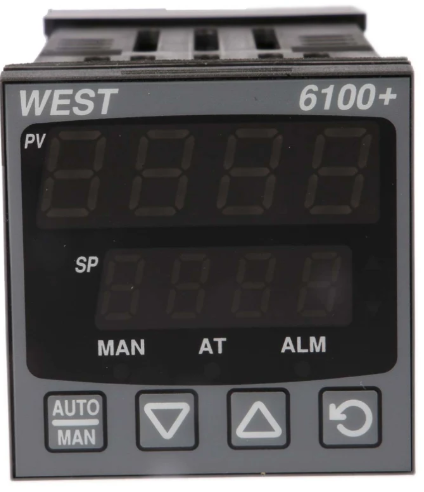

West 6100+ Digital Temperature Controller
| Place of Origin | CHINA |
|---|---|
| Brand Name | West |
| Certification | CE |
| Model Number | 6100+ |
| Minimum Order Quantity | 1 |
| Price | US$50/PC |

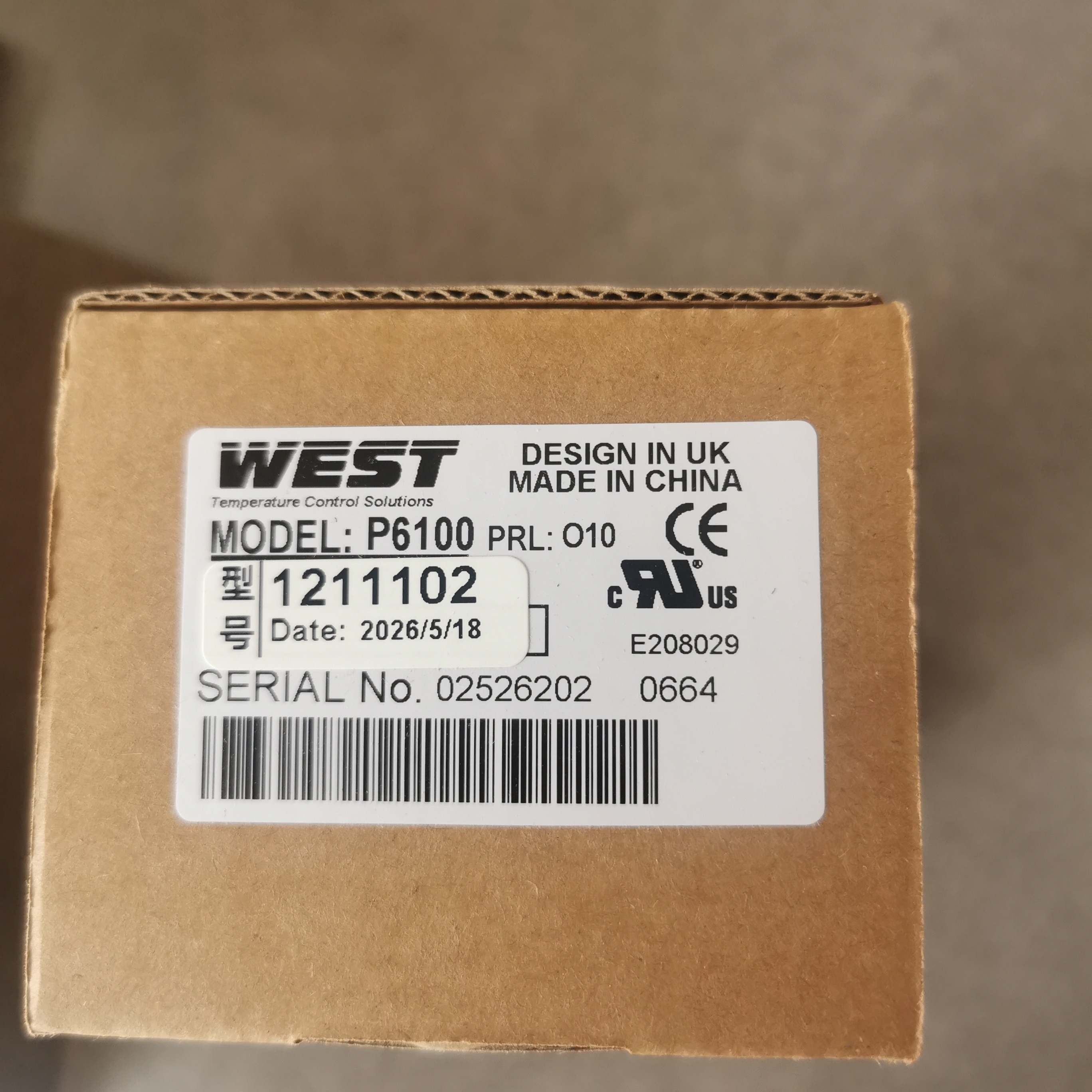

| Packaging Details | CARTON |
| Delivery Time | 1WEEK |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 500PCS |
Product Details
Product Description
| Product Category: | Single Loop Controller |
| Dimensions and size: | 48mm x 48mm x 110mm (HxWxD), 1/16 DIN |
| Primary Input Type: | Universal (TC, RTD, DC linear mA/mV) |
| Other Inputs: | Digital, Remote setpoint |
| Output Type: | Relay, SSd, DC linear V or mA, Triac, 24V transmitter power supply |
| Max. Number of Outputs: | 3 |
| Control Type: | PID, ON/OFF, Manual, Alarm, Ramp to Setpoint |
| Power Supply: |
100–240V AC 50–60Hz 20-48V AC 50/60 Hz 22-65V DC |
| Communications: | RS-485 serial (West ASCII or MODBUS®) |
| Panel Sealing: | IEC IP66, NEMA4X |
| Certifications: | CE, UL, ULC, CSA |
| Software Tools: | Plus Series Configurator |
