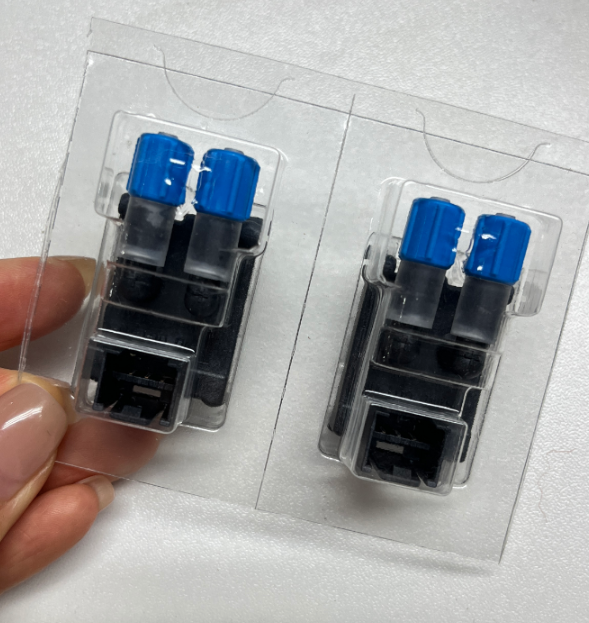

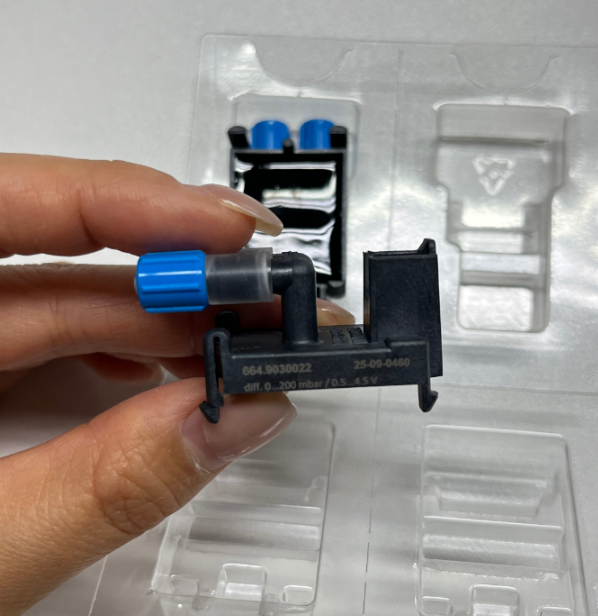

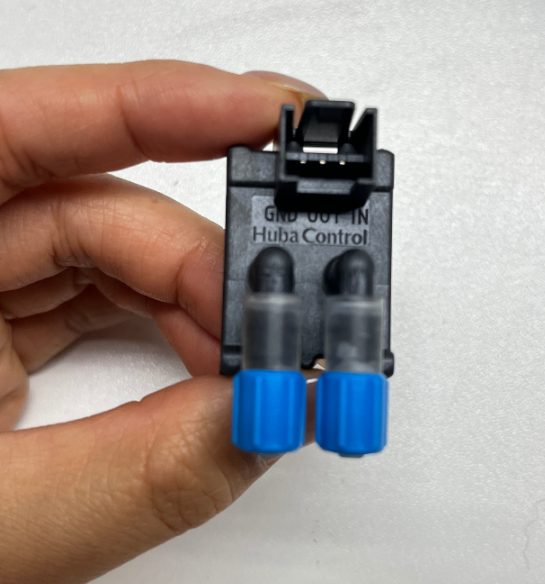

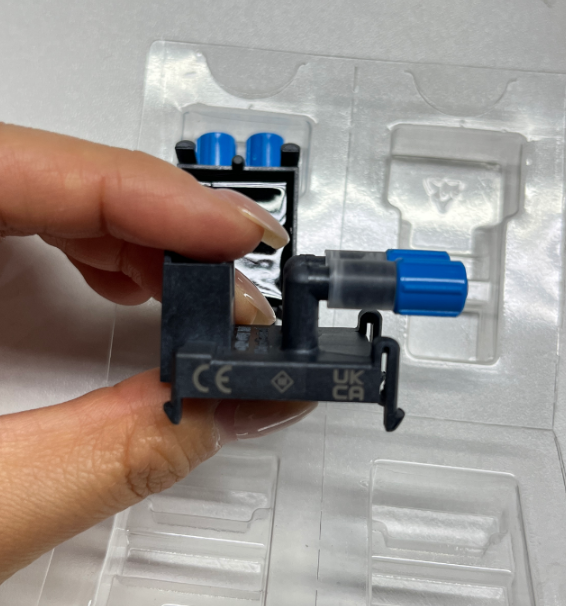

HUBA Differential pressure switch 664 series 664.903002
| Place of Origin | USA |
|---|---|
| Brand Name | HUBA |
| Certification | CE |
| Model Number | 664.903002 |
| Minimum Order Quantity | 1 |
| Price | US$125/PC |
| Packaging Details | CARTON |
| Delivery Time | 1WEEK |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 500PCS |
Product Details
| Highlight | HUBA differential pressure switch 664 series,Differential pressure gauge with warranty,664.903002 pressure switch industrial |
||
|---|---|---|---|
Product Description
Product feature
Pressure measuring range
-5 ... 5 mbar (Relative and difference); 0 ... 2000 mbar (Relative and difference); 0 ... 2000 mbar (Absolute); 800 ... 1200 mbar (Barometric sensor)
Response time
<2 ms
Pressure connection
Hose nozzle (Ø 4.8 mm); Plastic screw connection (Ø 3.9 mm / M6x0.75)
Sensor weight
1.5 g (additional)
Field of application
Media
Air; neutral gas
Medium temperature
-40 ... 85 °C
Permissible overload on one side
10 x FS; 3 x FS
Bursting pressure
15 x FS; 5 x FS
Ambient condition
Ambient temperature
-40 ... 85 °C
Storage temperature
-40 ... 100 °C
Material
Housing
LCP
Substrate
Ceramic Al2O3 (96 %)
Measuring element
Silicon
Adhesives
Silicone, epoxy
plastic screw fittings
PC
