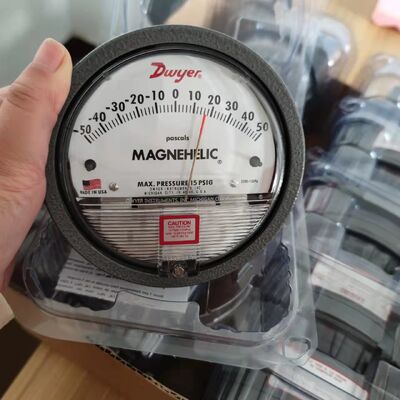

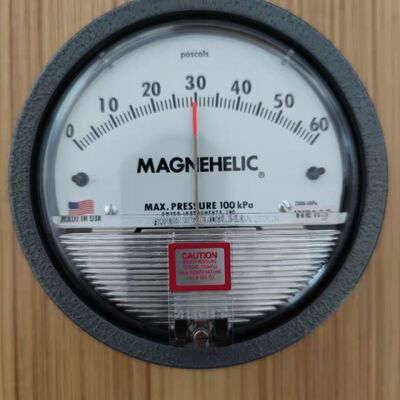

Dwyer Series-2000 Magnehelic Differential Pressure Gauge with No Power Needed, IP67 Rating, and NPT Female Connection

Product Description:

The Differential Pressure Gauge is a precision instrument designed to accurately measure the difference in pressure between two points in various industrial and commercial applications. Known for its reliability and durability, this differential pressure meter is an essential tool for monitoring and maintaining optimal system performance. It is especially valued in HVAC systems, clean rooms, filter monitoring, and other environments where precise pressure measurement is critical.

One of the standout features of this differential pressure gauge is its robust connection type. It utilizes an NPT Female connection, which ensures a secure and leak-free fit with compatible piping and equipment. This type of connection is widely recognized for its reliability in industrial settings, making the gauge easy to install and maintain. The connection size is 1/4 inch, providing a standard and versatile interface suitable for a wide range of applications.

In terms of pressure rating, this differential pressure meter offers a range from -20 InHg to 15 Psig. This broad pressure range allows it to handle both vacuum and positive pressure measurements, making it highly adaptable for many different systems. Whether monitoring low-pressure differentials or higher pressure variations, this gauge delivers consistent and accurate readings.

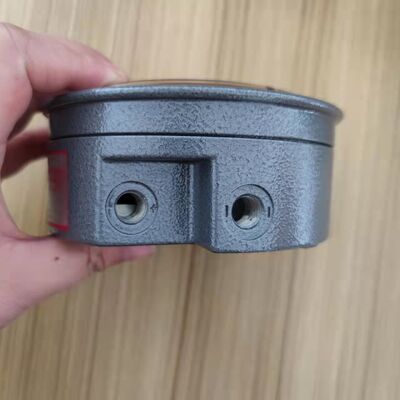

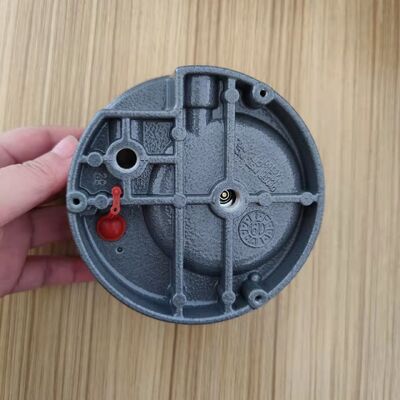

The mounting type of this magnehelic pressure gauge is thoughtfully designed for convenience and flexibility. It features 1/8˝ Female NPT duplicate high and low pressure taps, arranged in one pair on the side and another pair on the back. This configuration allows for easy installation in various orientations and locations, accommodating different space constraints and system layouts. The dual tap design also facilitates quick and reliable pressure measurement on both sides of the differential.

Accuracy is a critical attribute for any pressure measurement device, and this differential pressure meter excels in this regard. It offers an accuracy of ± 2% of full scale (FS), ensuring dependable readings under normal operating conditions. For the -HA model, the accuracy improves further to ± 1% of FS, providing enhanced precision for applications where exact measurements are paramount. On specific ranges such as -0, -100PA, -125PA, and -10MM, the accuracy is ± 3% (± 1.5% for the -HA model), while on -00, -60PA, and -6MM ranges, it maintains ± 4% accuracy (± 2% for the -HA model). These accuracy specifications are maintained throughout the entire measurement range at a standard temperature of 70°F (21.1°C), ensuring trustworthy data in controlled environments.

The magnehelic pressure gauge is widely recognized for its user-friendly design and durability. Its analog dial enables easy reading of pressure differentials at a glance, minimizing the need for complicated electronic displays. The robust construction ensures longevity even in demanding industrial environments, resisting corrosion and mechanical wear. This makes it a cost-effective solution for long-term pressure monitoring needs.

Overall, this differential pressure meter is a versatile, accurate, and dependable instrument suitable for a broad spectrum of applications. Its NPT Female connection type, wide pressure rating, flexible mounting options, and high accuracy make it an excellent choice for professionals who require precise differential pressure measurement. Whether you are managing HVAC systems, monitoring filters, or controlling clean room environments, this magnehelic pressure gauge will provide reliable performance and ease of use.

In summary, the Differential Pressure Gauge combines practical design with technical excellence, making it an indispensable tool for pressure measurement tasks. Its compatibility with standard connection types, comprehensive pressure range, and superior accuracy set it apart as a leading differential pressure meter in the market. Investing in this gauge ensures accurate monitoring and control, helping maintain system efficiency and safety in various industrial and commercial applications.

Features:

• Product Name: Differential Pressure Gauge
• Weight: 510 G
• Connection Type: NPT Female
• Display: Analog
• Pressure Rating: -20 InHg To 15 Psig
• Accuracy: ± 2% (-HA Model ± 1) Of FS (± 3% (-HA ± 1.5%) On -0, -100PA, -125PA, -10MM And ± 4% (-HA ± 2%) On -00, -60PA, -6MM Ranges), Throughout Range At 70°F (21.1°C)
• Includes features comparable to a magnehelic pressure gauge
• Compatible with digital magnehelic gauge systems
• Operates within a voltage range of 10.5-30 VDC

Technical Parameters:

Applications:

The Dwyer Series-2000-Magnehelic Differential Pressure Gauge is an essential instrument designed for precise pressure measurement in a variety of industrial and commercial applications. Originating from the USA, this high-quality gauge offers a pressure rating from -20 InHg to 15 Psig, making it suitable for both vacuum and positive pressure environments. With a 4-inch analog display and a 1/8 inch connection thread, the Series-2000-Magnehelic provides clear and reliable readings with an accuracy of ± 2% of full scale (FS), and even greater precision on the -HA model at ± 1% of FS. This level of accuracy ensures dependable monitoring in critical systems.

This magnehelic pressure gauge is widely used in HVAC systems to monitor air filters, air handling units, and clean room environments, ensuring optimal airflow and maintaining system efficiency. Its robust design and precise measurement capabilities make it ideal for use in laboratories and industrial processes where maintaining accurate pressure differentials is crucial. Additionally, the gauge is perfect for monitoring fan and blower pressures, duct static pressures, and filter status, helping to prevent equipment failure and reduce energy consumption.

The Series-2000-Magnehelic is also compatible with modern digital systems, as it operates on a 10.5-30 VDC power supply, allowing integration with digital magnehelic gauge setups for remote monitoring and control. This versatility makes it a valuable tool for facilities management, where real-time pressure data contributes to system diagnostics and preventive maintenance strategies.

Due to its durable construction and reliable performance, this differential pressure gauge is frequently utilized in clean rooms, pharmaceutical manufacturing, and semiconductor fabrication where precise pressure control is essential to maintain contamination-free environments. Furthermore, it is suitable for use in water treatment plants, laboratories, and ventilation systems in commercial buildings, ensuring safety and regulatory compliance.

In summary, the Dwyer Series-2000-Magnehelic Differential Pressure Gauge is a versatile and accurate instrument designed for a wide range of applications. Whether used as a standalone analog gauge or integrated within a digital magnehelic gauge system powered by 10.5-30 VDC, it provides dependable performance in monitoring pressure differentials critical to maintaining system integrity and efficiency across numerous industries.
