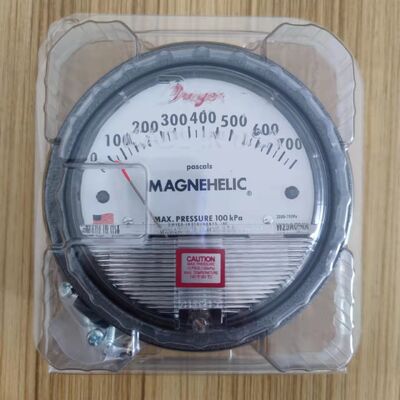

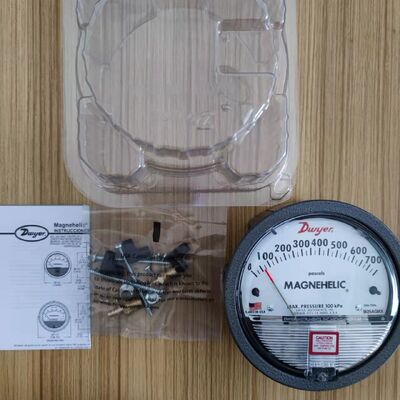

Dwyer 2000-750PA Differential Pressure Gauge with 1/8 Inch Female NPT, Aluminum and Acrylic Construction, Negative 20 InHg To 15 Psig Range

Product Description:

The Differential Pressure Gauge is a highly reliable and precise instrument designed to measure the difference in pressure between two points in a system. This differential pressure meter is essential for a wide range of industrial and commercial applications, including HVAC systems, clean rooms, filter monitoring, and process control. Built with durability and accuracy in mind, this gauge ensures optimal system performance and safety by providing real-time pressure differential readings.

One of the standout features of this Differential Pressure Gauge is its robust construction using high-quality aluminum and acrylic materials. The aluminum body offers exceptional strength and corrosion resistance, making the gauge suitable for use in various environments, including those with exposure to moisture or chemicals. The acrylic face provides a clear and scratch-resistant window, ensuring easy readability of the pressure measurements at all times.

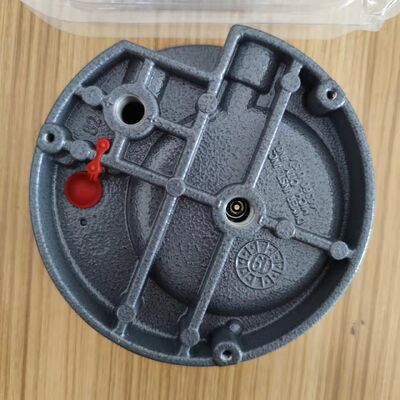

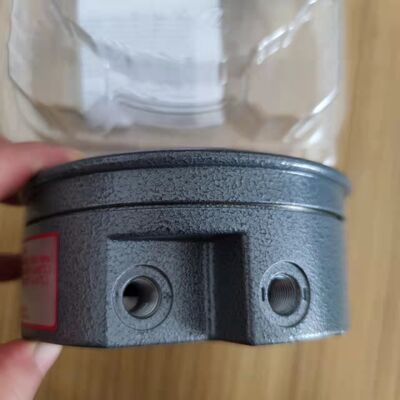

This gauge is equipped with a NPT Female connection type, which facilitates secure and leak-proof installation into existing systems. The mounting type is thoughtfully designed with 1/8˝ Female NPT duplicate high and low pressure taps, providing one pair on the side and one pair on the back. This dual mounting configuration offers flexibility, allowing for easy installation in tight spaces or customized setups without compromising accuracy or accessibility.

Operating within a temperature range of 0-60°C, the Differential Pressure Gauge is perfectly suited for environments where moderate temperature control is necessary. This temperature range ensures stable performance and consistent readings, even in demanding industrial conditions. Whether monitoring air filters, clean room environments, or ventilation systems, this gauge maintains its precision and reliability.

For modern applications requiring digital integration, this differential pressure meter supports a power supply range of 10.5-30 VDC, making it compatible with various control and monitoring systems. The inclusion of digital magnehelic gauge technology enhances its functionality by providing digital readouts that are easy to interpret and integrate into automated systems. This digital feature improves user experience by enabling quick and accurate pressure monitoring, reducing the likelihood of human error associated with analog gauges.

The digital magnehelic gauge component of this Differential Pressure Gauge sets it apart by combining the traditional reliability of magnehelic technology with the convenience of digital display. This hybrid functionality allows for precise differential pressure measurement while offering digital communication capabilities. Users benefit from enhanced data logging, remote monitoring, and simplified troubleshooting processes, making this device an excellent choice for both new installations and upgrades to existing systems.

In summary, the Differential Pressure Gauge is a versatile and efficient tool designed to meet the demanding needs of pressure measurement applications. Its combination of durable aluminum and acrylic construction, flexible NPT Female connection and mounting options, and a practical operating temperature range ensures it performs reliably in various settings. The integration of 10.5-30 VDC power compatibility and advanced digital magnehelic gauge technology elevates its performance, making it a top choice for professionals seeking a dependable and easy-to-use differential pressure meter. Whether for industrial process control, HVAC system monitoring, or clean room pressure management, this Differential Pressure Gauge delivers accurate, consistent, and easy-to-read differential pressure measurements every time.

Features:

• Product Name: Differential Pressure Gauge
• Size: 4 In
• Display: Analog
• Weight: 510 G
• Connection Thread: 1/8 In
• Connection Size: 1/4 Inch
• Type: Differential pressure meter
• Voltage: 10.5-30 VDC
• Also known as a delta pressure gauge

Technical Parameters:

Applications:

The Dwyer Series-2000-Magnehelic Differential Pressure Gauge is a highly reliable and precise instrument designed to measure differential pressure in a variety of applications. Manufactured in the USA, this gauge features a robust construction and an NPT female connection type, ensuring easy and secure installation. Its 1/4 inch connection size and 1/8˝ female NPT duplicate high and low pressure taps—one pair on the side and one pair on the back—offer versatile mounting options to suit diverse operational environments.

This digital magnehelic gauge is ideal for use in HVAC systems where monitoring air filter pressure drops is essential to maintain indoor air quality and system efficiency. It is commonly employed in clean rooms, laboratories, and hospitals to ensure proper airflow and pressure differentials that prevent contamination and maintain safety standards. The digital magnehelic gauge’s ability to operate within a 10.5-30 VDC power range makes it compatible with various control systems and automation setups, enhancing its adaptability in industrial settings.

In industrial process control, the Series-2000-Magnehelic Differential Pressure Gauge is utilized to monitor pressure differences across filters, strainers, and other critical components, ensuring optimal performance and early detection of potential issues. Its precise pressure type differential measurement capability allows technicians and engineers to maintain system integrity and prevent costly downtime. The gauge’s durable design and accurate readings make it suitable for use in chemical plants, pharmaceutical manufacturing, and other demanding environments where pressure monitoring is vital.

Additionally, this differential pressure gauge is well-suited for environmental monitoring and ventilation system management, where maintaining specific pressure differentials can impact energy efficiency and indoor comfort. Its NPT female connection type and mounting flexibility allow it to be integrated seamlessly into existing piping and ductwork. The Dwyer Series-2000-Magnehelic is a trusted tool for professionals seeking a dependable and precise differential pressure measurement solution backed by a reputable brand.
