IFM LDP100 Optical oil particle monitor
| Place of Origin | Germany |
|---|---|
| Brand Name | ifm |
| Certification | CCC.CE |
| Model Number | LDP100 |
| Minimum Order Quantity | 1 |
| Price | USD$1810/PC |
| Packaging Details | Original New |
| Delivery Time | 30 days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 10pcs |
Product Details
| Media | Mineral Oils (e.g. HLP); Ester Oils (e.g. HEES); Biodegradable Oils | Medium Temperature | -10...80°C |
|---|---|---|---|
| Operating Voltage | 9...33 DC | Current Consumption | < 300mA |
| Measuring Principle | Photoelectric | Analog Current Output | 4...20mA |
| Ambient Temperature | -10...60°C | Storage Temperature | -20...60°C |
Product Description

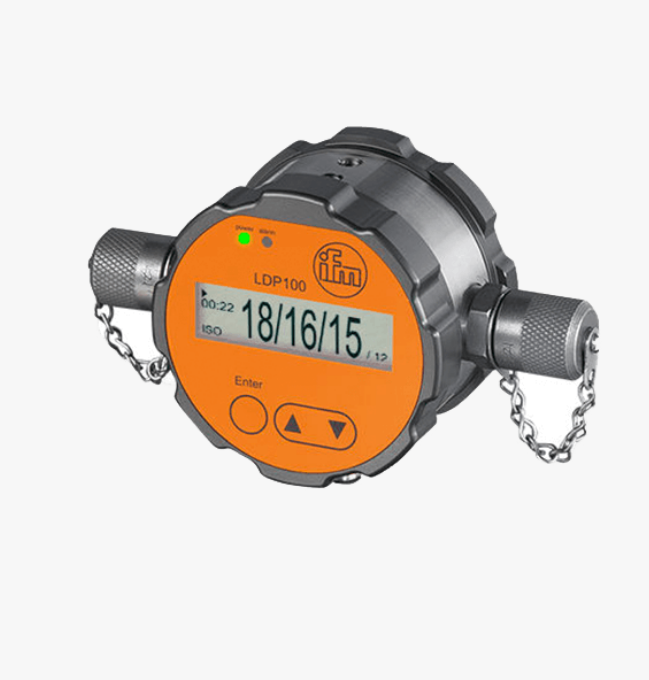

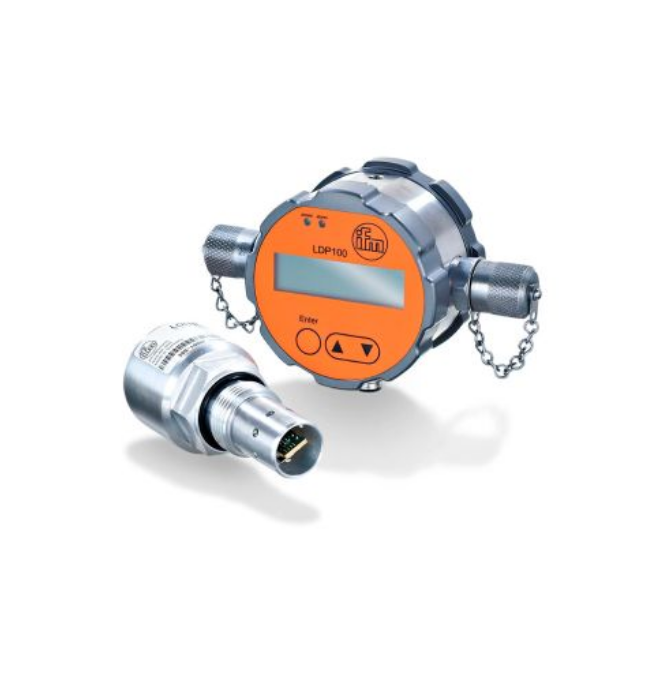

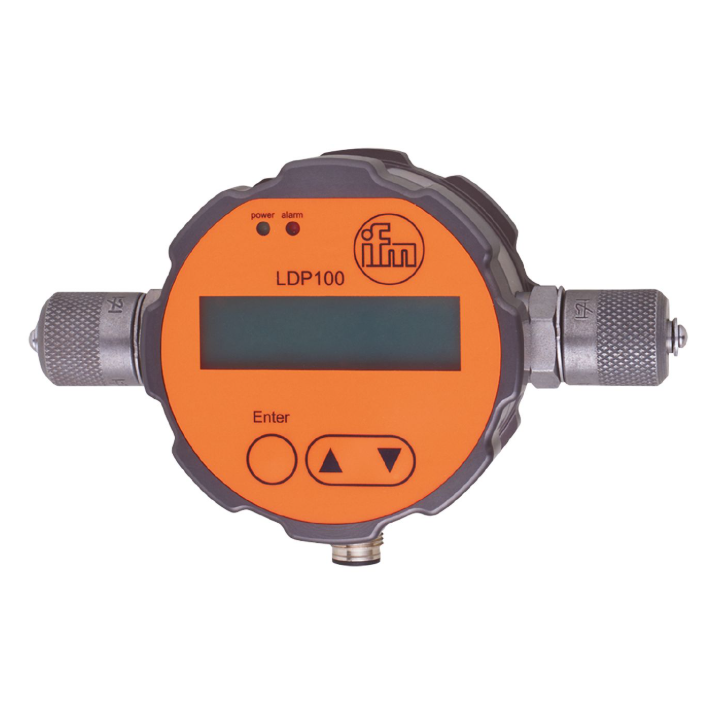

IFM LDP100 Optical oil particle monitor
- Trend monitoring by analysis of the particle concentration
- Indication of purity class on the LCD display
- Applications up to 420 bar
- CAN bus, analog and switching outputs
- displayed value corresponds to cleanliness level based on ISO 4406:21 and SAE AS4059F; NAS 1638
