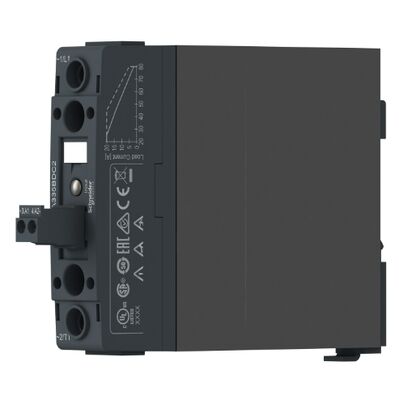

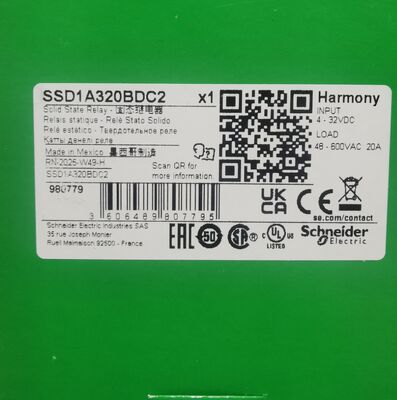

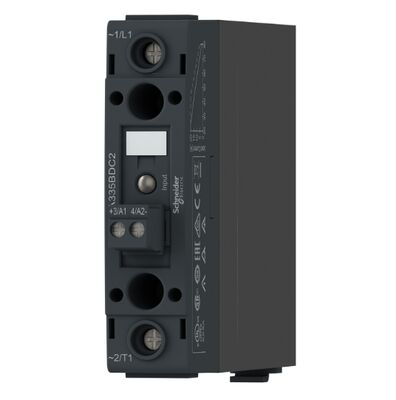

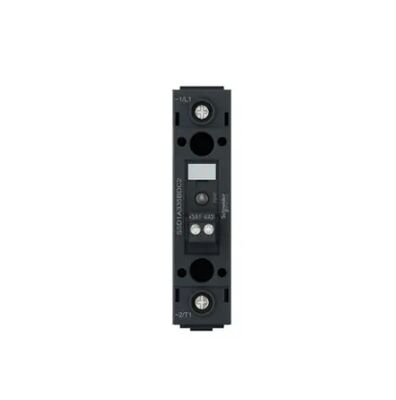

Schneider Electric SSD1A320BDC2 Solid State Relay SSR DIN Rail Mount 20A Load Current 48-600V AC Output 4-32V DC Control

  • Schneider Electric SSD1A320BDC2 Solid State Relay SSR DIN Rail Mount 20A Load Current 48-600V AC Output 4-32V DC Control
  • Schneider Electric SSD1A320BDC2 Solid State Relay SSR DIN Rail Mount 20A Load Current 48-600V AC Output 4-32V DC Control
  • Schneider Electric SSD1A320BDC2 Solid State Relay SSR DIN Rail Mount 20A Load Current 48-600V AC Output 4-32V DC Control
  • Schneider Electric SSD1A320BDC2 Solid State Relay SSR DIN Rail Mount 20A Load Current 48-600V AC Output 4-32V DC Control
  • Schneider Electric SSD1A320BDC2 Solid State Relay SSR DIN Rail Mount 20A Load Current 48-600V AC Output 4-32V DC Control
Place of Origin Mexico
Brand Name Schneider
Certification CE
Model Number SSD1A320BDC2
Minimum Order Quantity 1
Price US$40
Packaging Details CARTON
Delivery Time 6-8WEEKS
Payment Terms L/C,D/A,D/P,T/T,Western Union
Supply Ability 500PCS
Product Details
Load Current 0.1…20 A Transient Overvoltage 1200 V
Inrush Current 300 A At 60 Hz Maximum Voltage Drop <1.3 V On-state
Highlight

20A Load Current Solid State Relay

,

48-600V AC Output SSR

,

4-32V DC Control DIN Rail Relay
Leave a Message
Product Description
Schneider Electric SSD1A320BDC2 SSR-DIN Rail, 1 Phase, 48-600V AC Output, 4-32V DC Control, 20A, Screw Plug
The Harmony Solid State Relay SSD1A320BDC2 is a high-performance modular DIN rail relay designed for industrial applications requiring reliable switching of AC loads with zero voltage switching technology.
Product Overview
Main Product Range Harmony Solid State Relays
Product Type Modular DIN Rail Relay
Device Name SSD1
Configuration Contactor configuration with pluggable screw input
Electrical Specifications
Number of Channels 1
Number of Phases 1 Phase
Rated Current 20 A
Output Voltage 48-600 V AC
Control Circuit Voltage 4-32 V DC
Switching Mode Zero Voltage Switching
Operating Frequency 47-440 Hz
Rated Duty Uninterrupted
Control Characteristics
Pick-up Voltage 4 V DC turn-on
Drop-out Voltage 1 V DC turn-off
Input Current Range 10-15 mA
Local Signalling LED (green) for control voltage
Performance Specifications
Load Current 0.1-20 A
Transient Overvoltage 1200 V
Inrush Current 300 A at 60 Hz
Maximum Voltage Drop <1.3 V on-state
Motor Controller Ratings
120 V AC 0.37 kW / 0.5 hp
240 V AC 1.12 kW / 1.5 hp
480 V AC 2.24 kW / 3 hp
Mechanical & Installation
Mounting Support 35 mm symmetrical DIN rail (IEC 60715)
Input Terminals Plug-in screw terminals, 0.08-3.30 mm² (AWG 28-12)
Output Terminals Telescopic screw, 0.75-10 mm² (AWG 20-8)
Input Torque 0.5 N.m (5 lb.in)
Output Torque 2-2.2 N.m (18-20 lb.in)
Insulation & Safety
Dielectric Strength 4 kV AC (input/output circuit, input/output to case)
Rated Impulse Withstand Voltage 6 kV (input/output circuit, input/output to case)
Insulation Resistance 1000 MΩ at 500 V DC
