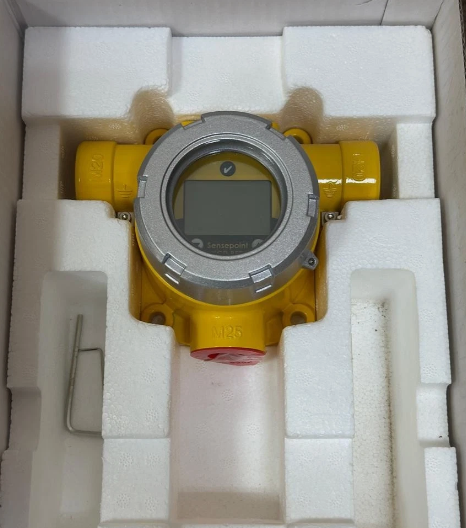

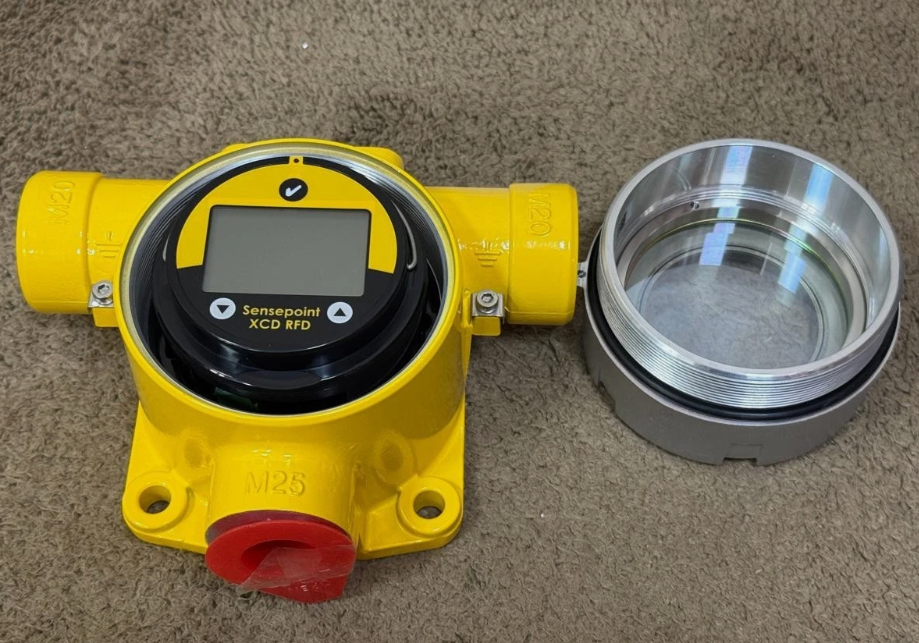

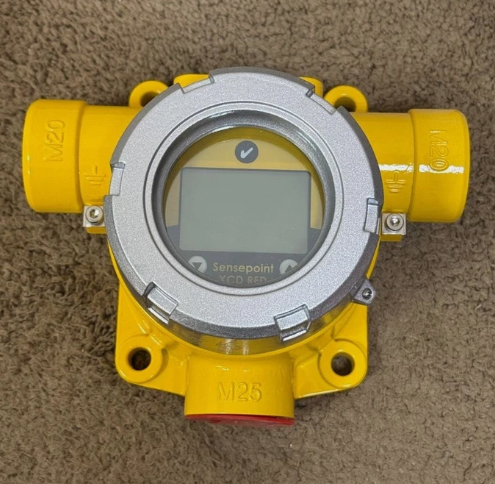

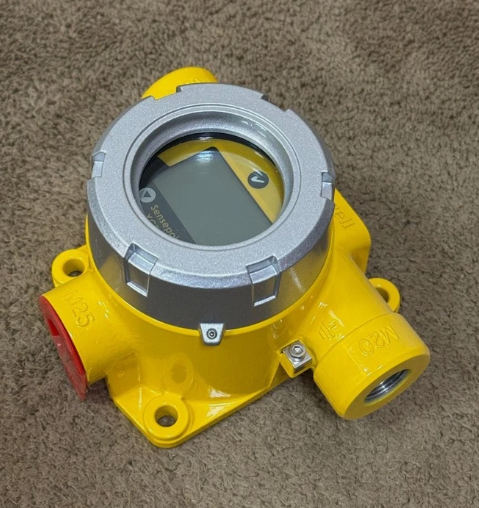

Honeywell SPXCDALMRFD FIXED Gas Deteors Sensepoint XCD RFD Gas Detector

  • Honeywell SPXCDALMRFD FIXED Gas Deteors Sensepoint XCD RFD Gas Detector
  • Honeywell SPXCDALMRFD FIXED Gas Deteors Sensepoint XCD RFD Gas Detector
  • Honeywell SPXCDALMRFD FIXED Gas Deteors Sensepoint XCD RFD Gas Detector
  • Honeywell SPXCDALMRFD FIXED Gas Deteors Sensepoint XCD RFD Gas Detector
  • Honeywell SPXCDALMRFD FIXED Gas Deteors Sensepoint XCD RFD Gas Detector
Place of Origin South Korea
Brand Name Honeywell
Certification /
Model Number XCD
Minimum Order Quantity 1pc
Price USD $800/PC
Packaging Details original packing
Delivery Time 1-3 working days
Payment Terms T/T
Supply Ability 1000pc/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Honeywell Sub-Category Gas Detection Sensors & Transmitters
Weight Range 316 Stainless Steel: 11 Lbs Maximum Pressure 110 KPa
Leave a Message
Product Description

Product Overview:

Sensepoint XCD RFD (Remote Flammable Detector) has been specifically designed for use with remotely mounted flammable gas sensors. This configuration is ideal for applications where the sensor is required to be mounted remotely from the transmitter in areas where temperatures are well above ambient (up to 150°C/302°F), or that are difficult to access. The transmitter can be mounted at a suitable location away from this area where it is easy to access, view its display and interact with via the user interface.

Features & Benefits:

  • Accurate detection with fast response
  • Mount sensor up to 100 ft. from transmitter
  • Easy to read tri-color backlit display

Quick Specs:

  • Input voltage range: 16 to 32 VDC (24 VDC nominal)
  • Communication: RS485, MODBUS RTU
  • Mounting: Pole or wall

Fire and Gas Consultancy Services

Even the best products deserve expert maintenance!

Elevate your gas detectors’ potential with Honeywell's expert maintenance services! Maximize uptime, eliminate costs, and ensure on-time, on-budget project completion.



FEATURES

  • Sub-Category
  • Gas Detection Sensors & Transmitters
  • Gas Detection Sensors & Transmitters
  • Features & Benefits
  • Auto-Inhibit During Maintenance Prevents False Alarms
  • Compatible with Honeywell Analytics’ Proven Catalytic Bead Flammable Gas Sensors
  • Easy to Read Tri-Colour Backlit Display with Digits, Bar Graph and Icons
  • Fully Configurable via Non-Intrusive Magnetic Switches
  • Gas Sensors Use Long Life, Poison Resistant Beads as Standard, Reducing Ongoing Cost of Ownership
  • High Temperature Gas Sensors Have Thermally Matched Beads for Highest Accuracy and Stability Enabling Low Alarm Levels
  • Non-Intrusive, One-Man Operation Reduces Cost of Maintenance
  • Optional Sensepoint XCD plug-in sensor reduces maintenance time further
  • Reduced Spares and Stock Costs
  • Reduces Training Costs
  • Selectable Sink or Source 4 to 20 mA Output
  • Sensepoint XCD Common Transmitter Platform

DIMENSIONS & WEIGHT

  • Weight range
  • 316 Stainless Steel: 11 lbs
  • Aluminium Alloy LM25: 4.4 lbs

TECHNICAL SPECIFICATIONS

  • Humidity Range
  • Continuous: 20 to 90% RH (Non-Condensing)
  • Intermittent: 10 to 99% RH (Non-Condensing)
  • Relay Output Configuration
  • 3 x 5A @250 VAC
  • Maximum Pressure
  • 110 kPa
  • Mounting
  • Wall
  • Conduit Entries
  • (2) 3/4 in NPT
  • Communication
  • Modbus RTU
  • RS485

OPERATING CHARACTERISTICS

  • Minimum Temperature
  • -40˚C
  • Storage Temperature
  • -25 to +65°C
